Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
260
9

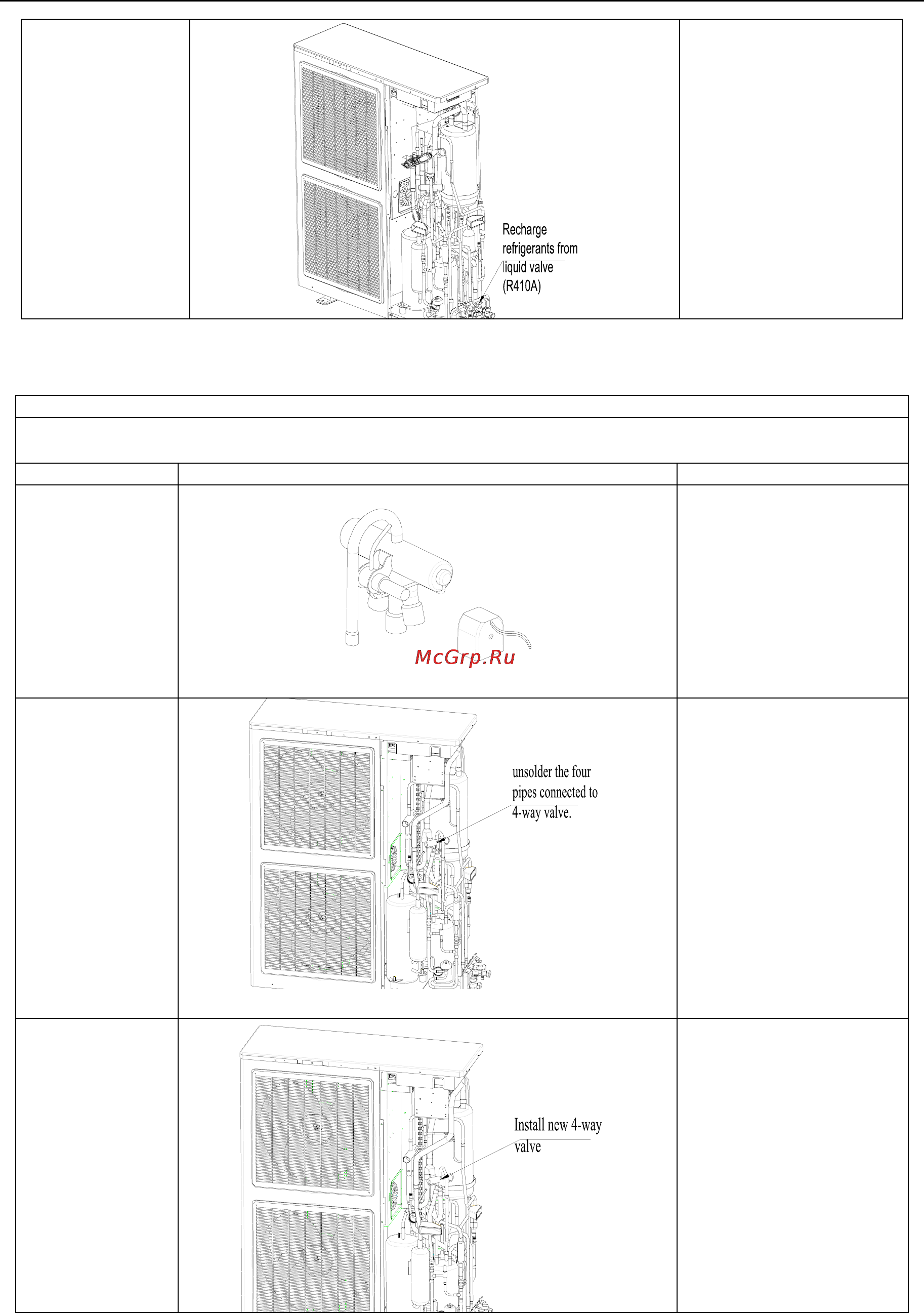

． Recharge
refrigerants by
fluorin-feeding
nozzle
●Recharge refrigerants
to the system by
fluorin-feeding nozzle
●Volume of refilling
should be in accordance
with the requirement on
the unit nameplate.
Disassembly and Assembly of 4-way valve
Remarks：Make sure that there isn’t any refrigerant in pipe system and the power supply is cut off before
removal of 4-way valve.
Step Illustration Handling Instruction
1 ． Remove the
coil of 4-way
valve
●Use screwdriver to
remove the screws fixing
the coil
●Remove the coil of
4-way valve.
2 ． Use welding
gun to unsolder
the four pipes
connected to
4-way valve.
●Heat connection pipes
for 4 pipes of 4-way valve
with gas welding before
removal of 4-way valve.
●Provide nitrogen
protection during gas
welding and the nitrogen
pressure should be
0.5±0.1kgf/cm
2
（ relative
pressure
）
●Please pay attention to
heating in case that
surrounding materials
should be burnt by high
temperature.
3 ． Install new
4-way valve
●Wrap the valve with wet
cloth
●Reweld the pipes
connected to 4-way valve
