Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
285
6

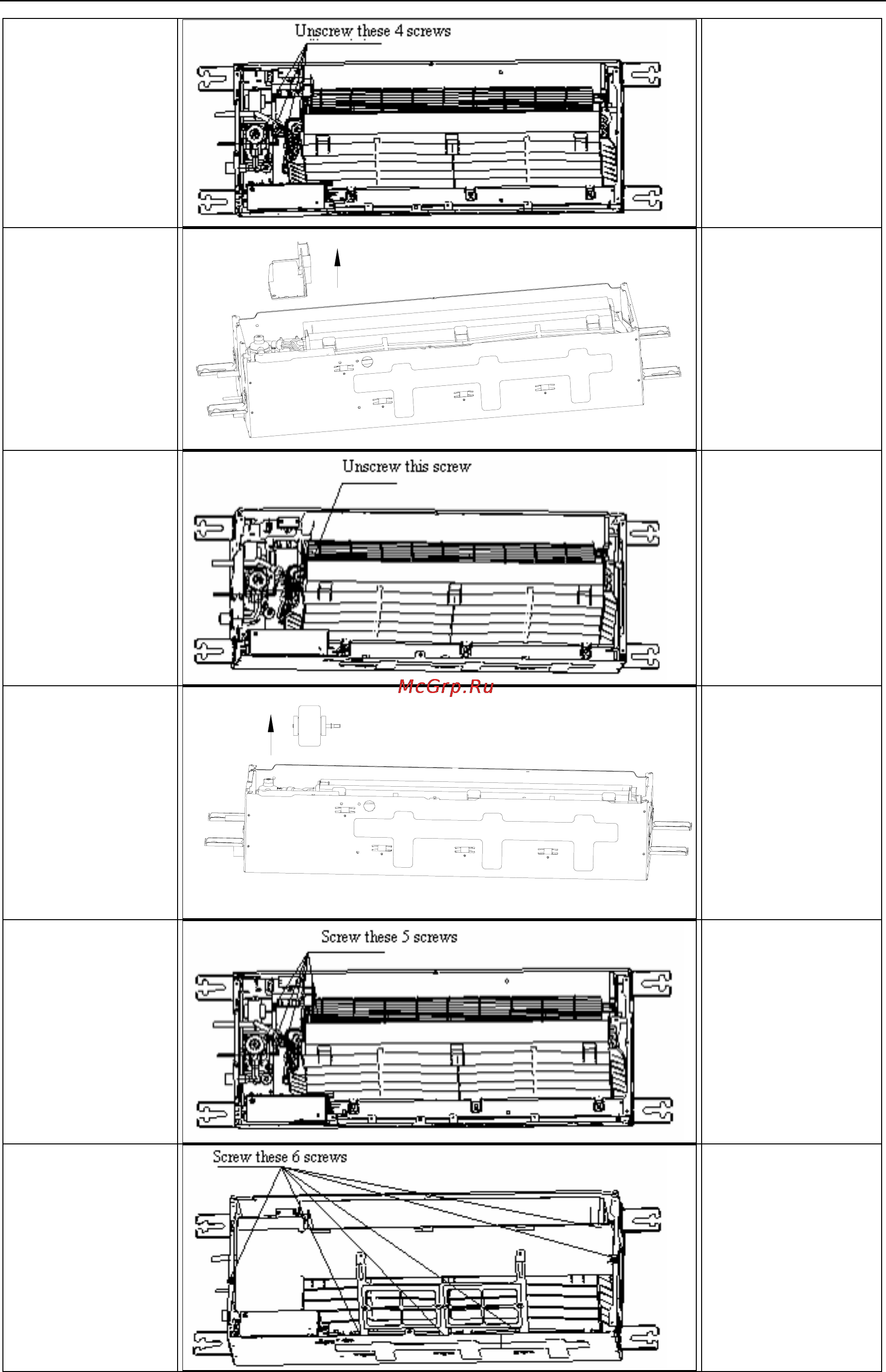

． Unscrew the
retaining screw of
cover of motor
● Unscrew the
retaining screw of
cover of motor
7. Remove the
motor cover assy.
● Remove the
motor cover assy.
8. Unscrew the
retaining screws of
motor and motor
shaft.
Rotate the cross
flow fan and make
the screws
upward.Then,remov
e the screws.
9. Replace the
motor.
● Remove the
motor and then
install a new one.
10. Install the motor
cover assy and
screw the bolts up.
● Install the motor
cover assy and
screw the retaining
screws of motor
cover and cross flow
fan.
11. Install
defrosting tray and
the support of filter.
Then screw the
bolts.
● Install defrosting
tray and the support
of filter. Then screw
the bolts.
