Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
85
Every part of wired remote controller
1 Operating mode display (Cool, Dry, Fan, Heat) 9 On/Off button
2 Sleep mode display 10 Timer button
3 Environmental temp.display / Malfunction display 11 Swing button
4 Fan control display (automatic, high, media, low) 12 Swing display
5 Set Temp. display 13 Fan control button
6 Defrosting display 14 Temp. / Timer reducing button
7 Timer display 15 Temp. / Timer rising button
8 Signal receptor 16 Mode button

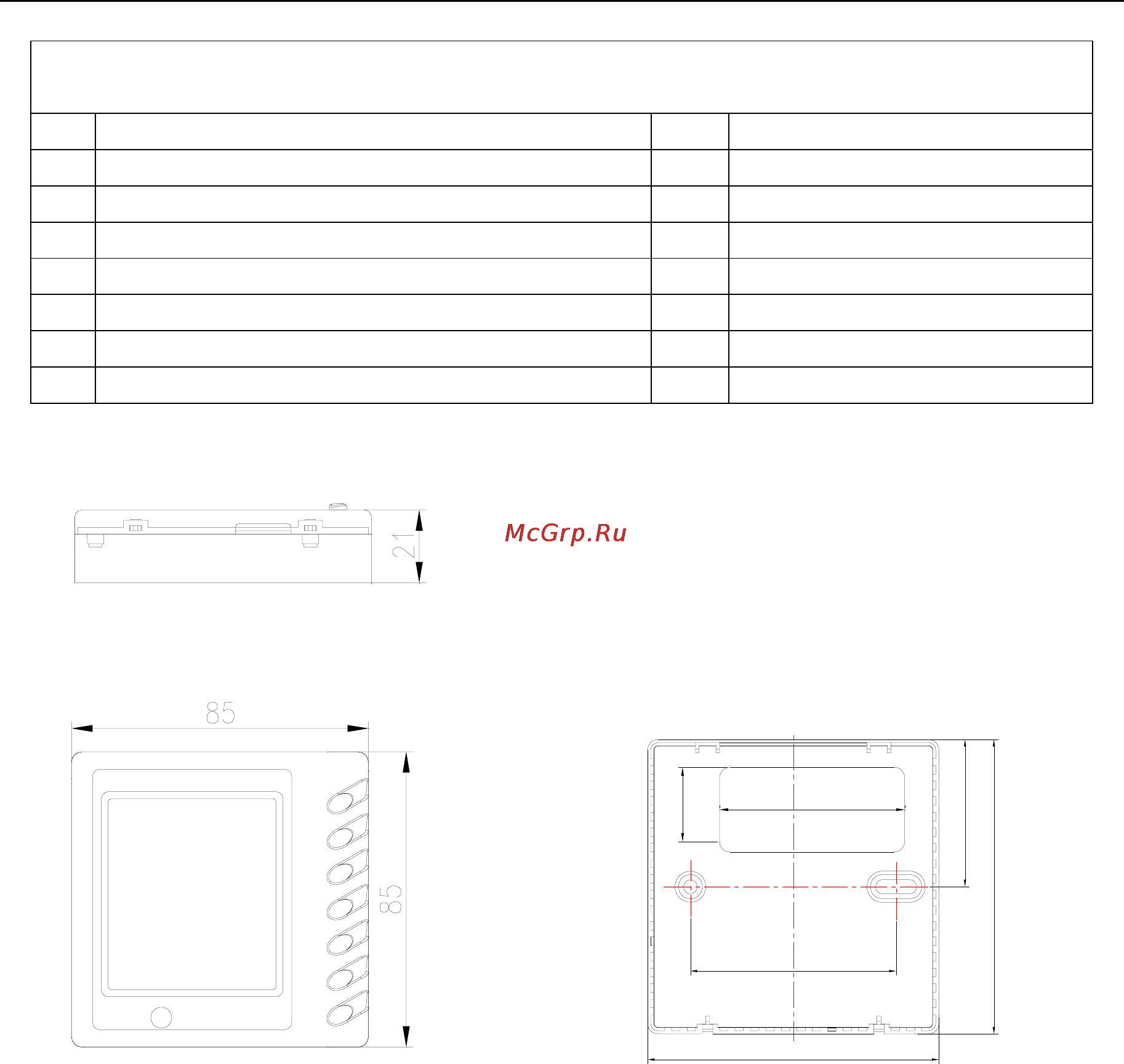

4.1.2 Dimension
Fig.4.2.1 Outline Dimension Fig.4.2.2 Installation Dimension
54
21.5
85
60
85
42.5
