Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
92
water heating function.
8 ON/OFF Switch on or off the machine
4 Mode
and
7
Decrease
Forcing
water
pump to
run
Under OFF state, you may hold down MODE and “-" keys
simultaneously for 5 seconds to activate the water pump in Hydro box.
If you hold them for 5 seconds again or the machine is failed, the
system will exit the function. The ON/OFF key is disabled after the
function is started. The function can last 30 minutes the longest.
3
Increase
and
7
Decrease
Key Lock
When the machine has no fault, you may hold down “+" and “-“ keys
simultaneously for 5 seconds to enter in keypad lock state, in which
case the other keys will be disabled. Hold them down again for 5
seconds to exit the lock state. When the machine is incurred to fault, it
will automatically release the lock state.
Table 2.1
Appled for RQD5GB-K. RQ5GB-K .RQD8GB-K .RQ8GB-K.
RQD20LA-M. .RQ20LA-K.RQ30LA-K：
Key Functions

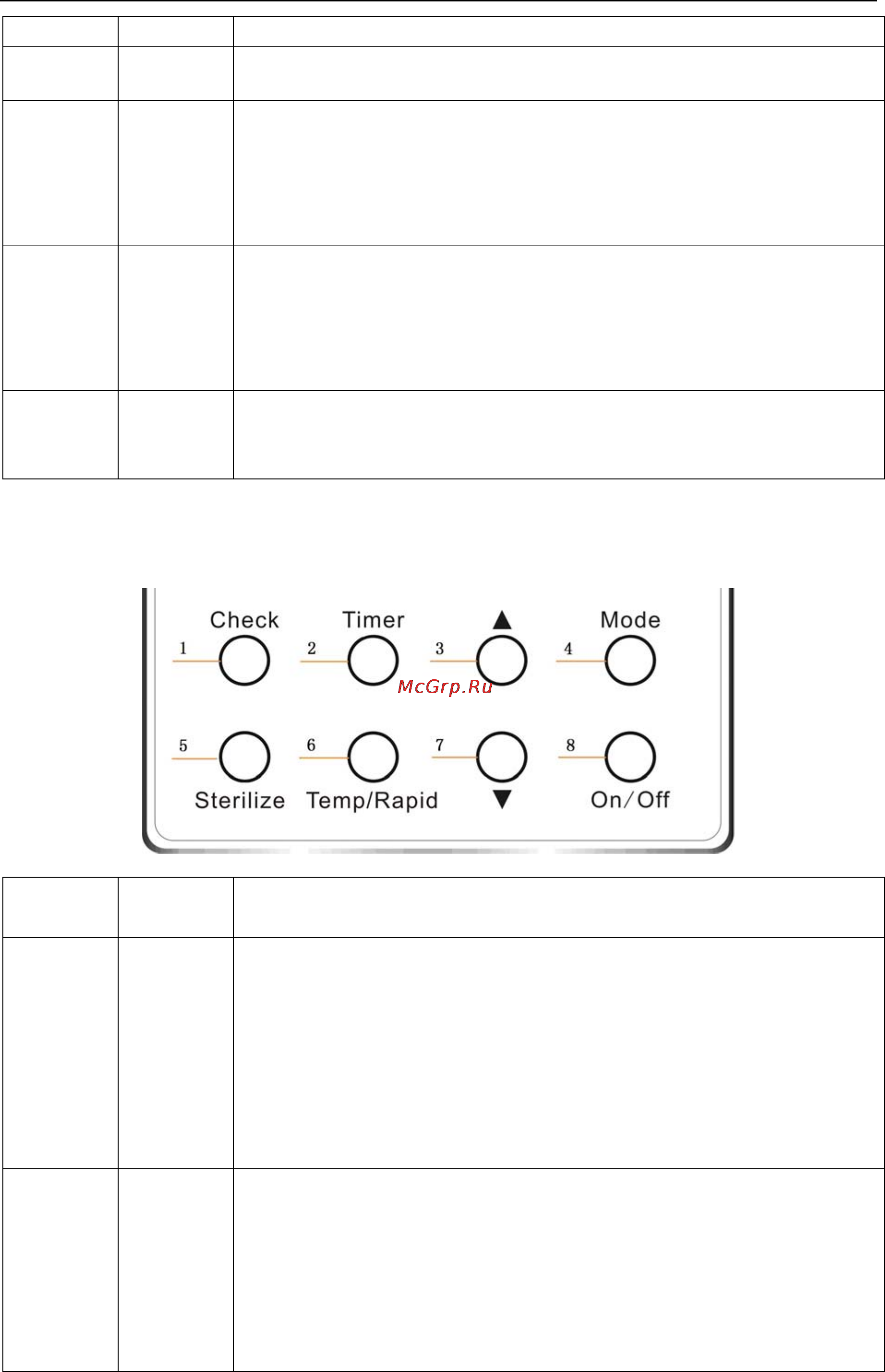

No. Key Name Key Functions
1 Check
Press Check key to enter into inquiry state. Press Check key to return
to preset temperature and water tank temperature state. Generally, the
inquiry function is used by test personnel for inquiry of the machine
operating parameters.
（1） Under inquiry state, press “+” or “-“ key to switch the inquiry code
and inquire the corresponding operation code of the machine.
（2） When the inquiry code is 00, you may press TIMER key to set
the system time.
2 Timer
（1） Under OFF state, you may press TIMER key to set the AUTO
ON time.
（2） Under instant water heating mode and energy saving mode,
you may press TIMER key to set the AUTO OFF time.
（3） Under preset mode, you may press TIMER key to preset the
water heating time.
（4） When the inquiry code is 00 under inquiry mode, you may
