Icom IC-2820H [108/164] Tone squelch and pocket beep
![Icom IC-2820H [108/164] Tone squelch and pocket beep](/views2/1074119/page108/bg6c.png)
87
11

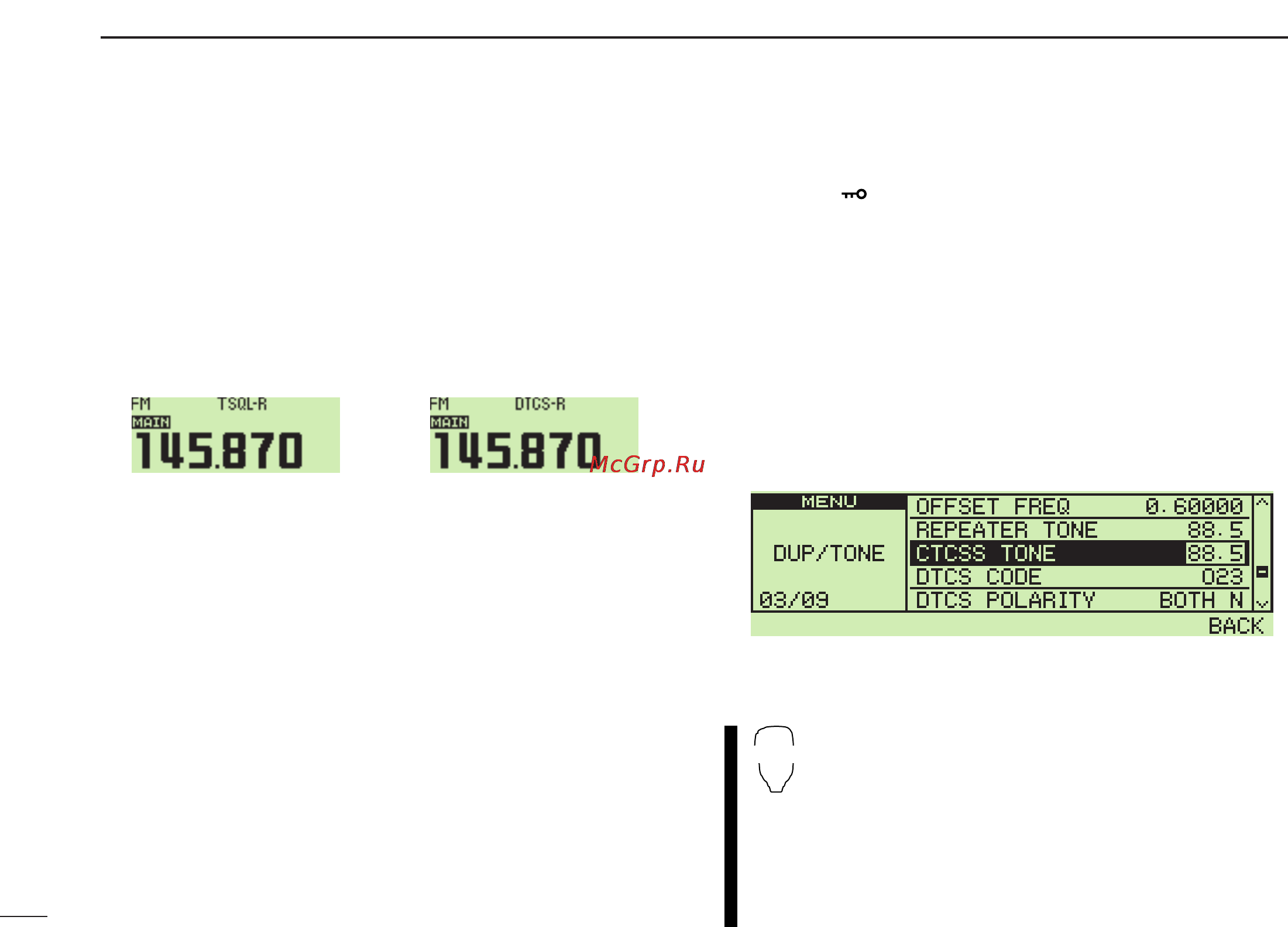

TONE SQUELCH AND POCKET BEEP
D Reverse tone/DTCS squelch
The reverse tone/DTCS squelch is convenient if you want to
ignore a specific signal.
qSet the desired operating frequency and the desired oper-
ating mode.
wPush [TONE•DTMF] several times to select “T SQL-R” or
“DTCS-R” appears.
eWhen a signal with unmatched tone or code is received,
the transceiver’s mute is released and the received audio
sounds.
The transceiver mutes the squelch when a signal with the
matched tone or code is received.
D Setting tone squelch frequency
q Push [F•]to display the function guide.
w Push [MENU](V/MHz•SCAN)
(Right band’s) to enter MENU
screen.
e Rotate [DIAL] to select “DUP/TONE…” then push
[MAIN•BAND].
r Rotate [DIAL] to select “CTCSS TONE” then push
[MAIN•BAND].
t Rotate [DIAL] to select the desired CTCSS tone frequency
then push [MAIN•BAND].
• Each operating band and each memory channel have indepen-
dent settings.
• See the table on page 88 for available tone frequencies.
y Push [BACK](V/MHz•SCAN) (Right band’s)
to exit from
DUP/TONE set mode.
z Push [
SET
B(D-OFF)] to enter set mode.
x Push [Y]/[Z] several times to select
“DUP/TONE…” then push [
SET
B(D-OFF)].
c Push [Y]/[Z] several times to select “CTCSS
TONE” then push [
SET
B(D-OFF)].
v Push [Y]/[Z] to select the desired tone fre-
quency then push [
SET
B(D-OFF)].
b Push [
CLR
A(MW)] to exit DUP/TONE set mode.
SET
B
Tone squelch reverse DTCS reverse
