77
8
SCAN OPERATION
D Programming scan edges via microphone
z Push [MR/CALL] to select memory mode.
x Select scan edge channel, 0A to9A using [Y]/[Z]
or keypad.
• Push [
ENT
C(T-OFF)] then push only 1 appropriate
digit key, [
VOL
Y 0(TONE-2)] to [
SIMP
9(16-KEY-L)] then
push [
MM
(TONE-1)] or [
SQL
Z #(16KEY-L)] to select scan
edge channels. “
MM
” and “#” can be used for “A” and
“B” respectively.
c Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency via the keypad or [Y]/[Z].
v Push [FUNC], then push and hold [
CLR
A(MW)] for 1 sec.
to program.
•3 beeps sound and VFO is automatically selected.
• Memory channel number advances to the next scan edge chan-
nel, 1B to 9B when continuing to push [
CLR
A(MW)] after pro-
gramming.
b To program a frequency for the other scan edge channels,
repeat steps z to v.
MW

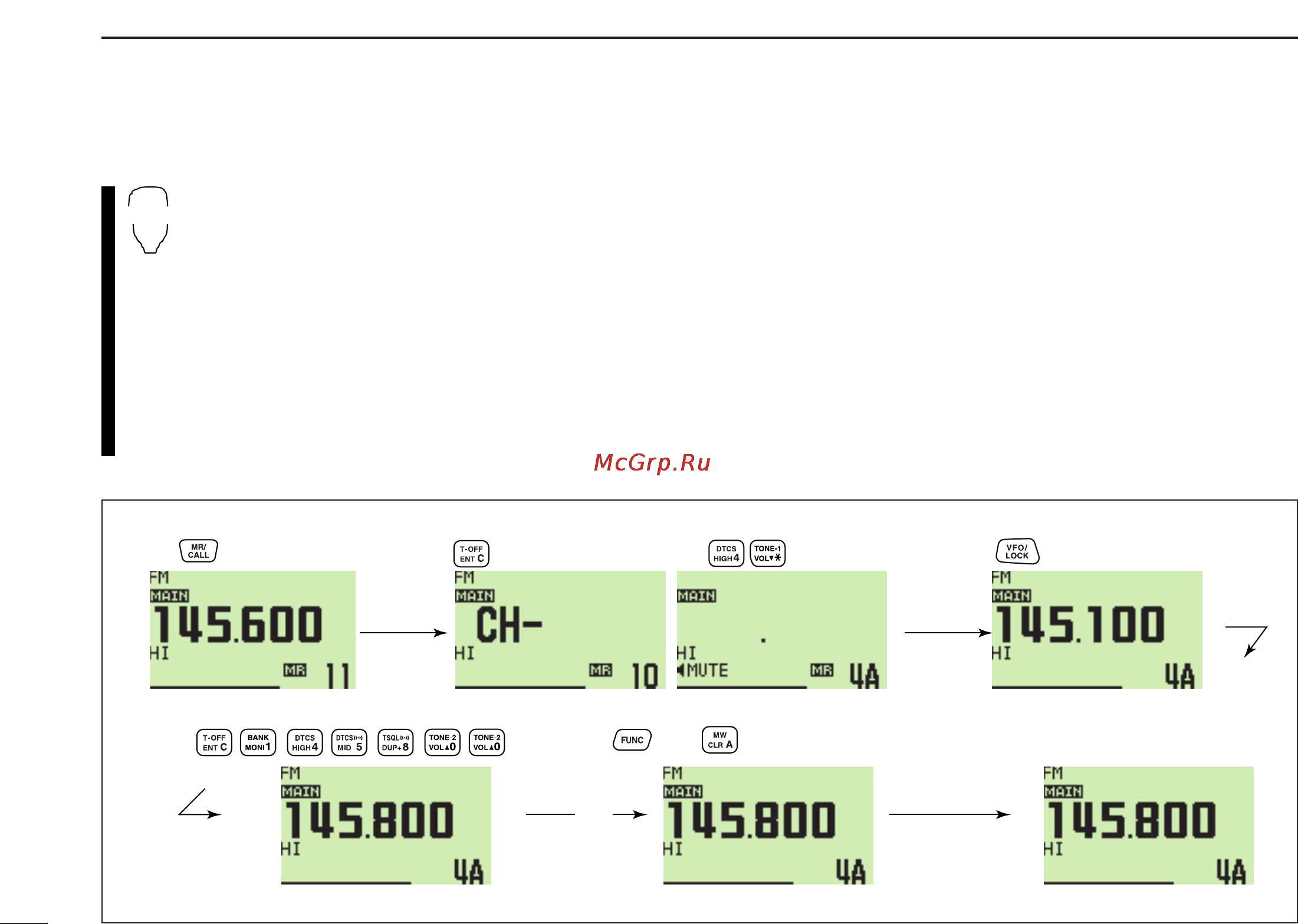

[EXAMPLE]: Programming 145.800 MHz into scan edge 4A.
Push Push Push
Push
Push then for 1 sec. and continue to push
➠
Beep
“
Beep
Beep
Beep
“
“
“
“
“
Push
