69
6
MEMORY MODE OPERATION
D Memory/call➪call/memory
qSelect the memory/call channel to be copied.
➥ Push the desired band’s [M/CALL•MW] several times
to select memory mode or call channel, then rotate the
same band’s [DIAL] to select the desired memory or
call channel.
wPush and hold the same band’s [M/CALL•MW] for 1 sec.
•“X” indicator and the memory channel number blink.
eRotate the same band’s [DIAL] to select the target memory
channel.
• “C1” or “C2” blinks when the call channel is selected.
• Scan edge channels, 0A/0B to 9A/9B can also be selected.
rPush and hold the [S.MW](M/CALL•MW) (Left band’s) for
1 sec. to copy the selected memory/call channel contents
to the target memory.
• The targeted memory and copied contents are indicated.

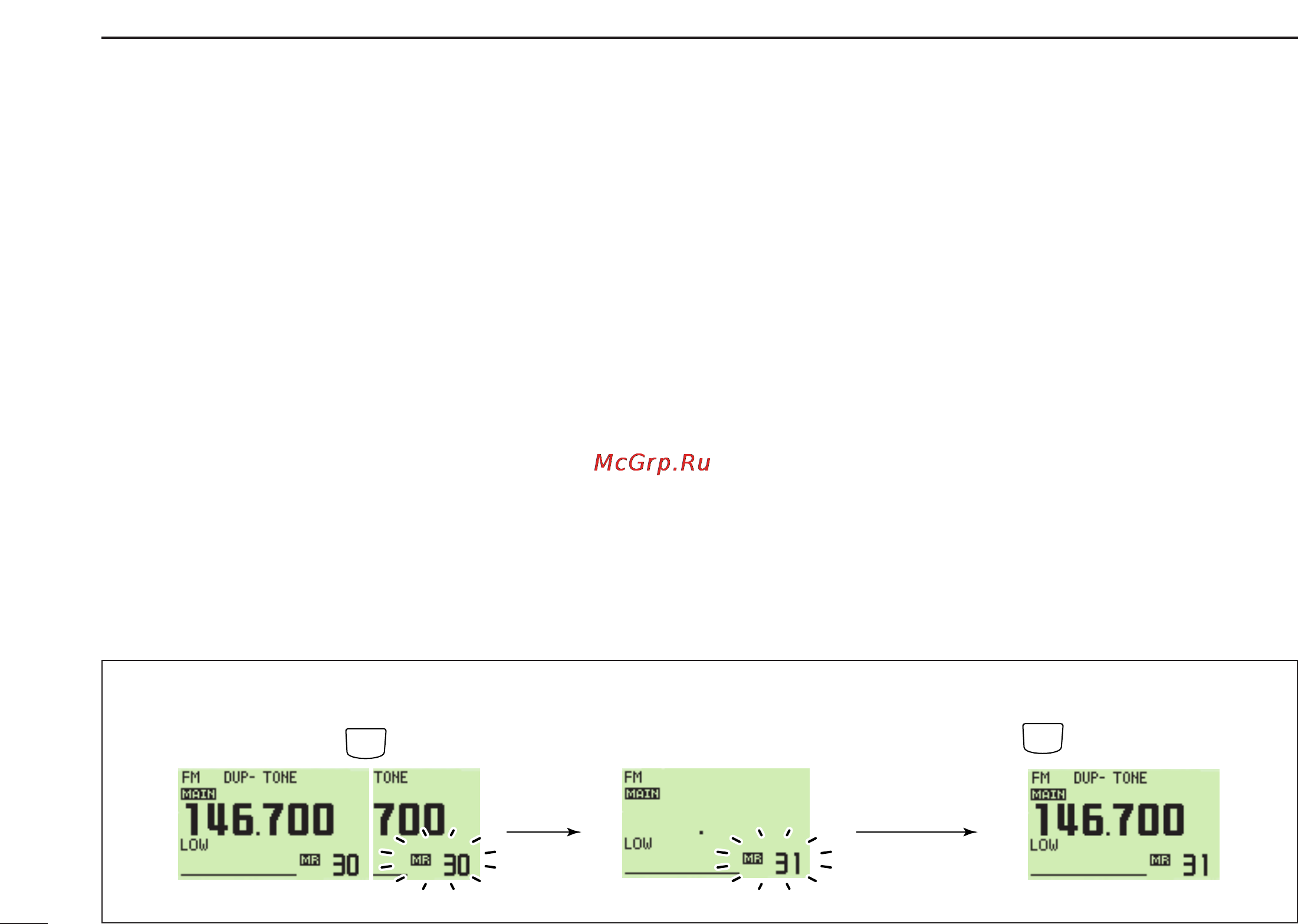

[EXAMPLE]: Copying memory channel 30 contents to channel 31.
Select the target channel.
Select the memory channel,
then push and hold for 1 sec.
Push and hold for 1 sec.
M/CALL
MW
M/CALL
MW
S.MW
