Icom IC-2820H [64/164] D repeater operation in the same zone
![Icom IC-2820H [64/164] D repeater operation in the same zone](/views2/1074119/page64/bg40.png)
43
5
DV MODE OPERATION (Optional UT-123 is required)
DD
Repeater operation in the same zone
qSet the desired repeater’s frequency, offset and shift direc-
tion in the main band.
(pgs. 30, 31)
• Select DV mode in advance. (p. 21)
wSet your own call sign. (p. 39)
• See p. 37 for your own call sign programming.
eSet the desired station call sign. (p. 40)
• See p. 38 for station call sign programming.
rSet the repeater’s call sign as follows;
zPush [F•]twice to display the function guide 2.
xPush [CS](V/MHz)

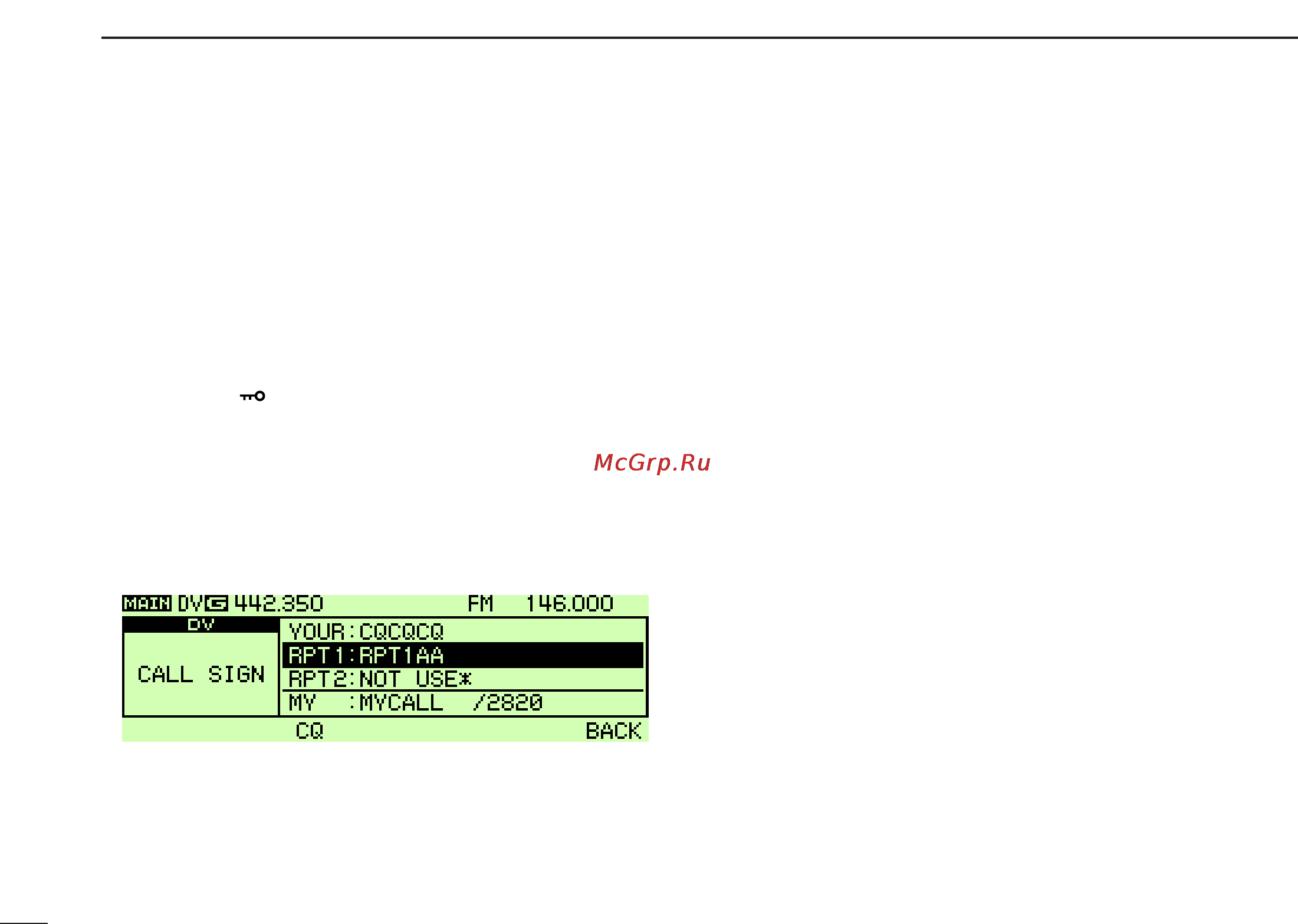

(Left band’s) to display the “CALL
SIGN” screen.
cRotate [DIAL] to select “RPT1,” then push
[MAIN•BAND].
•RPT1 CALL SIGN screen is displayed.
vRotate [DIAL] to select the nearest repeater’s call sign
then push [BACK](V/MHz)
(Right band’s).
bRotate [DIAL] to select “RPT2” then push
[MAIN•BAND].
•RPT2 CALL SIGN screen is displayed.
nRotate [DIAL] to select the desired repeater’s
(in the
same zone)
call sign.
• Select “NOT USE✱” when not operating RPT2.
mPush [BACK](V/MHz•SCAN) (Right band’s) to exit “CALL
SIGN” screen.
tPush [PTT] to transmit; release to receive.
