Icom IC-2820H [144/164] Weather channel operation
![Icom IC-2820H [144/164] Weather channel operation](/views2/1074119/page144/bg90.png)
123
15
OTHER FUNCTIONS

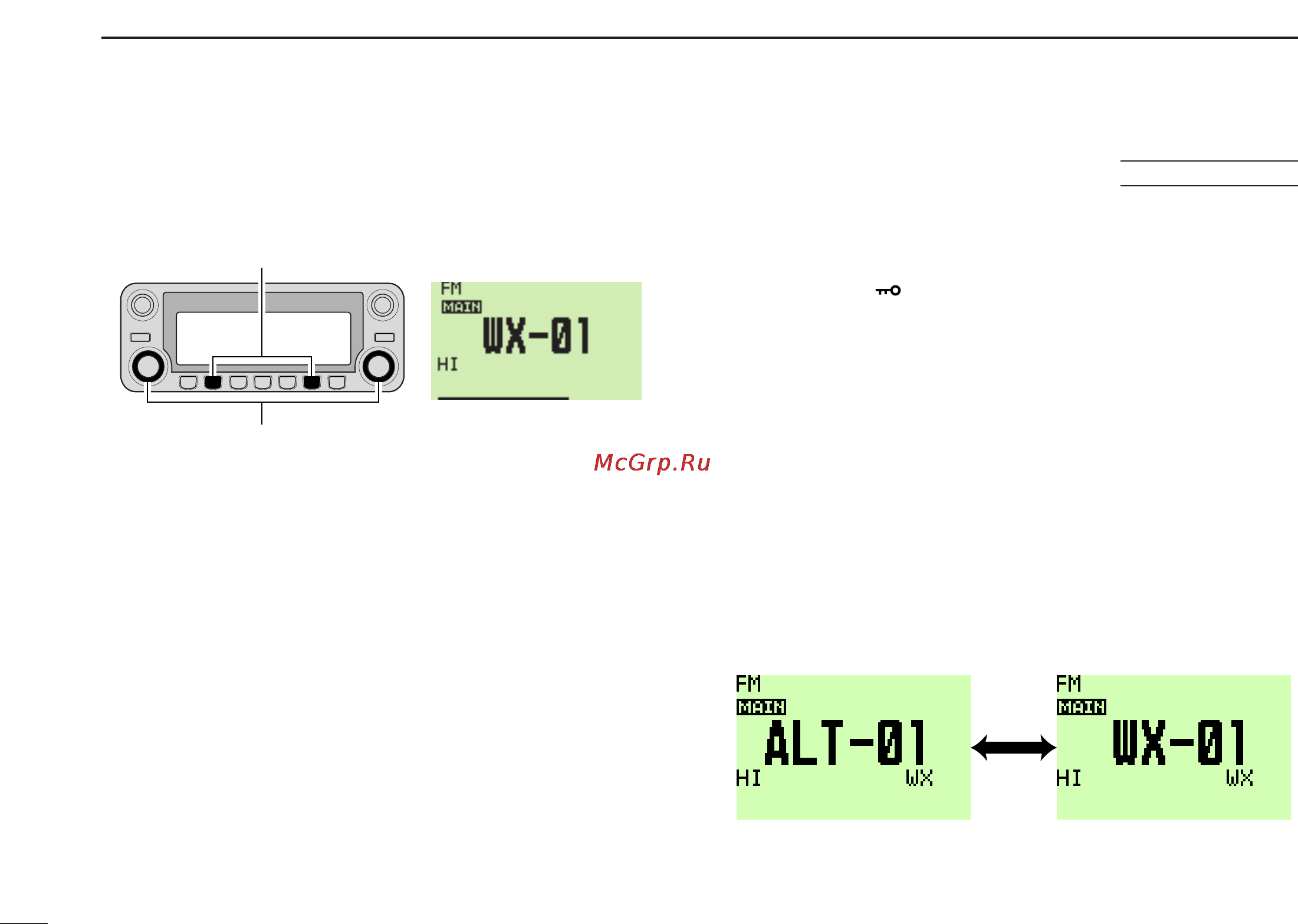

■ Weather channel operation
USA version only
DD
Weather channel selection
qPush the desired band’s [M/CALL•MW] several times to
select weather channel group.
wRotate the same band’s [DIAL] to select the desired
weather channel.
ePush the [M/CALL•MW] to select memory mode, or push
the same band’s [V/MHz•SCAN] to select VFO mode.
DD
Weather alert function
NOAA broadcast stations transmit weather alert tones before
important weather announcements. When the weather alert
function is turned ON, the selected weather channel is moni-
tored every 5 sec. so you can hear weather announcements.
When the alert signal is detected, the “ALT” and the “WX” with
channel number are displayed alternately and sounds a beep
tone until the transceiver is operated. The previously selected
(used) weather channel is checked periodically during
standby or while scanning.
qSelect the desired weather channel.
wTurn the weather alert function ON in DUP/TONE set
mode.
z Push [F•]to display function guide.
x Push [MENU](V/MHz•SCAN)
(Right band’s) to enter
MENU screen.
c Rotate [DIAL] to select “DUP/TONE…” then push
[MAIN•BAND].
v Rotate [DIAL] to select “WX ALERT” then push
[MAIN•BAND].
v Rotate [DIAL] to select “ON” then push [MAIN•BAND].
b Push [BACK](V/MHz•SCAN)
(Right band’s) twice to exit
from DUP/TONE set mode.
eSets the desired stand-by condition.
• Selects VFO, memory or call channel.
• Scan or priority watch operation can also be selected.
rWhen the alert is detected, a beep sounds and the follow-
ing indication will be displayed.
tTurn the weather alert function OFF in DUP/TONE set
mode.
The display shows above indications alternately.
Weather channel group
indicaiton
[M/CALL•MW]
[DIAL]
