Icom IC-2820H [48/164] Audio mute function
![Icom IC-2820H [48/164] Audio mute function](/views2/1074119/page48/bg30.png)
27
3
BASIC OPERATION

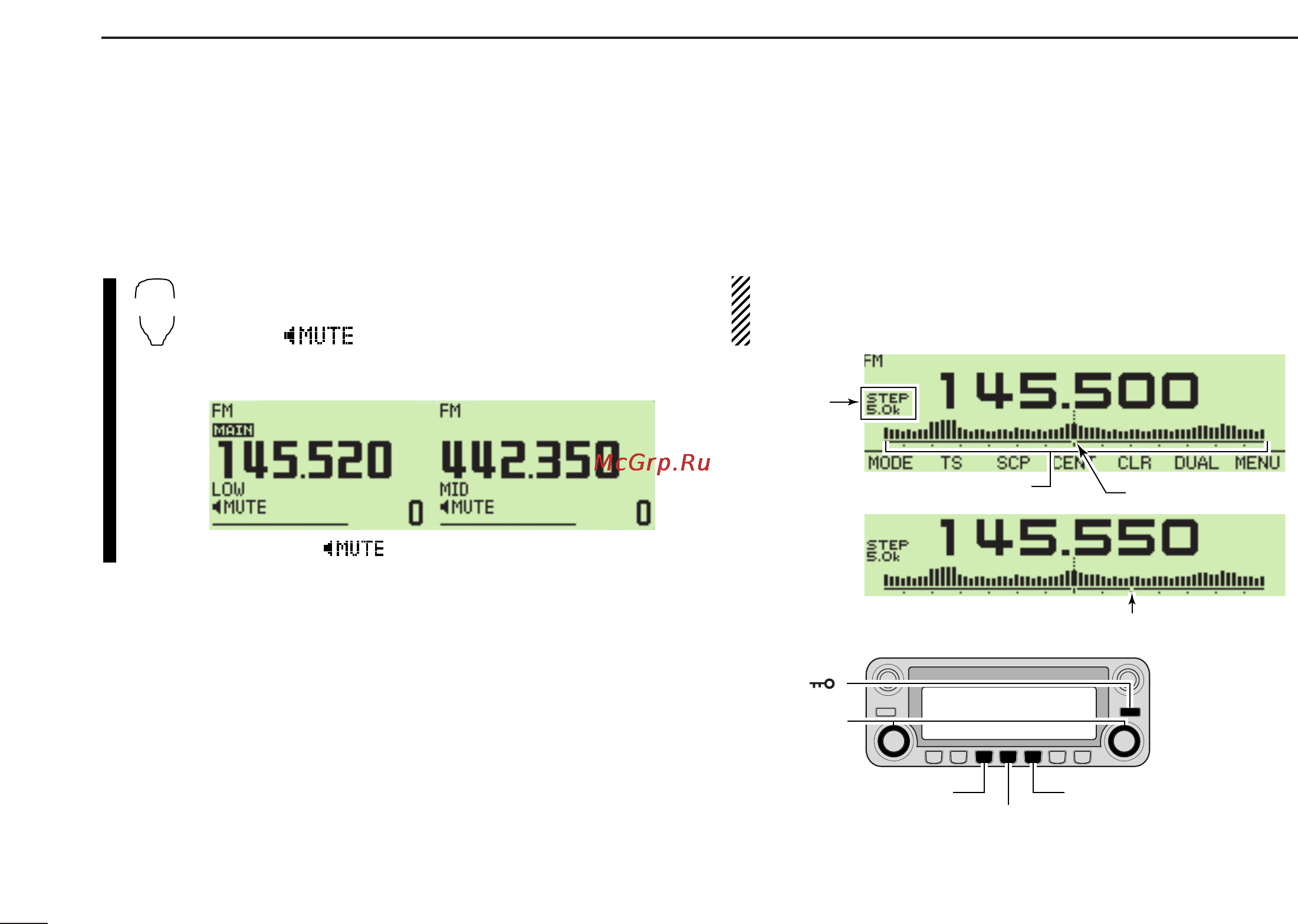

■ Audio mute function
This function temporarily mutes the audio without disturbing
the volume setting. (microphone only)
➥ Push [FUNC] then [
SQL
Y D(MUTE)] to mute
audio signals.
• The “ ” indicators appear.
• Push [
CLR
A(MW)] (or any other key) to cancel the
function.
■ Band scope
The band scope function allows you to visually check a spec-
ified frequency range around the center frequency.
About the sweep steps: The specified tuning step in each
frequency band
(in VFO mode) or programmed tuning step
(in memory mode) is used during sweep.
Frequency marker
Band scope indication
Sweep step
indication
Frequency marker
[CLR]
[CENT]
[SCP]
[F• ]
[DIAL]
“ ” indicators appear
MUTE
