64
6
MEMORY MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

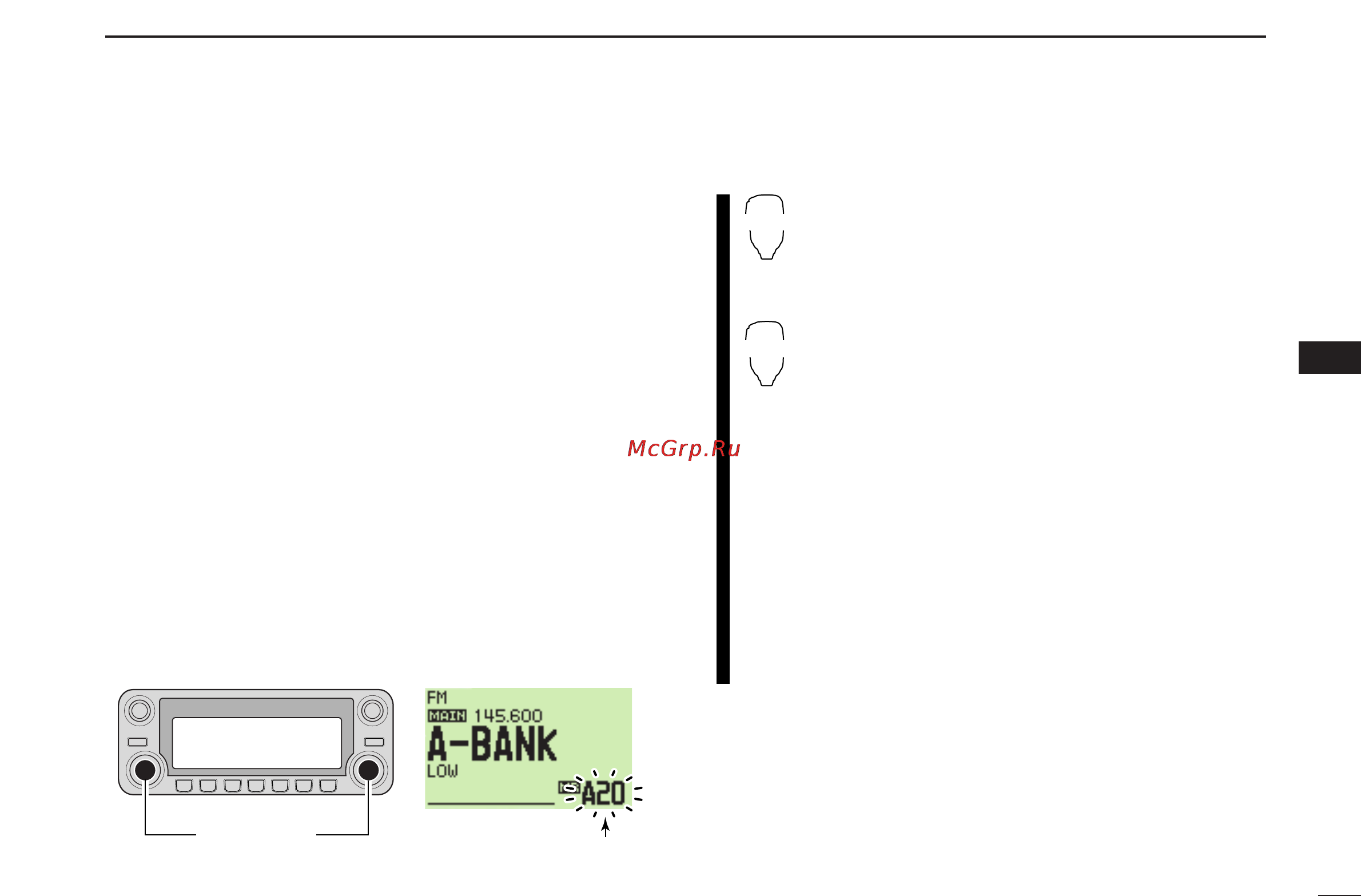

■ Memory bank selection
The IC-2820H has a total of 26 banks (A to Z). All memory
channels, regular channels, scan edges and call channels are
assigned into the desired bank for easy memory management.
qPush the desired band’s [M/CALL•MW] several times to
select memory mode, if desired.
wPush and hold the same band’s [MAIN•BAND] for 1 sec.
• The memory channel number blinks.
eRotate the same band’s [DIAL] to select the desired bank,
A to Z.
• Banks that have no programmed contents are skipped.
rPush the same band’s [MAIN•BAND] to set the bank
group.
• Bank initial and bank channel stop blinking.
tRotate the same band’s [DIAL] to select the desired bank
channel.
yTo return to regular memory mode, push and hold the
same band’s [MAIN•BAND] for 1 sec., rotate the same
band’s [DIAL] to select memory channel number indica-
tion, then push the same band’s [MAIN•BAND].
z Push [MR/CALL] to select memory mode, if de-
sired.
x Push [FUNC] then [
MONI
1(BANK)] to select
memory bank condition.
Or, push and hold [BAND] for 1 sec. to select
memory bank condition.
• Memory channel blinks
c Push [Y]/[Z] to select the desired bank, A to Z.
• Only programmed memory bank can be selected.
v Push [
CLR
A(MW)] to set the bank.
Or, push [BAND] to set the bank.
• Bank initial and bank channel stops blinking.
b Push [Y]/[Z] to select the desired contents in
the bank.
n To return to regular memory condition, push
[FUNC], [
MONI
1(BANK)] then push [Y]/[Z] to
select memory channel number indication.
Or, push and hold [BAND] for 1 sec., then push
[Y]/[Z] to select memory channel number indi-
cation.
BANK
Y/Z
Bank initial and bank
channel blink
[MAIN•BAND]
