63
6
MEMORY MODE OPERATION
D Programming a memory channel via the microphone
The microphone can also be used to program mem-
ory channels.
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency using the keypad.
➥ Set other data
(e.g. offset frequency, duplex direction, sub-
audible tone encoder ON/OFF and its frequency), if neces-
sary.
x Push [MR/CALL] to enter memory mode.
c Push [
ENT
C(T-OFF)], then set the desired memory chan-
nel using the keypad.
v Push [VFO/LOCK] to select VFO mode.
b Push [FUNC] then push and hold [
CLR
A(MW)] for 1 sec. to
program.
➥ 3 beeps may sound and the VFO contents
(including the
subaudible tone frequency, etc.) are programmed.
➥ Memory channel number increases when continuing to
push [
CLR
A(MW)] after programming.
MW

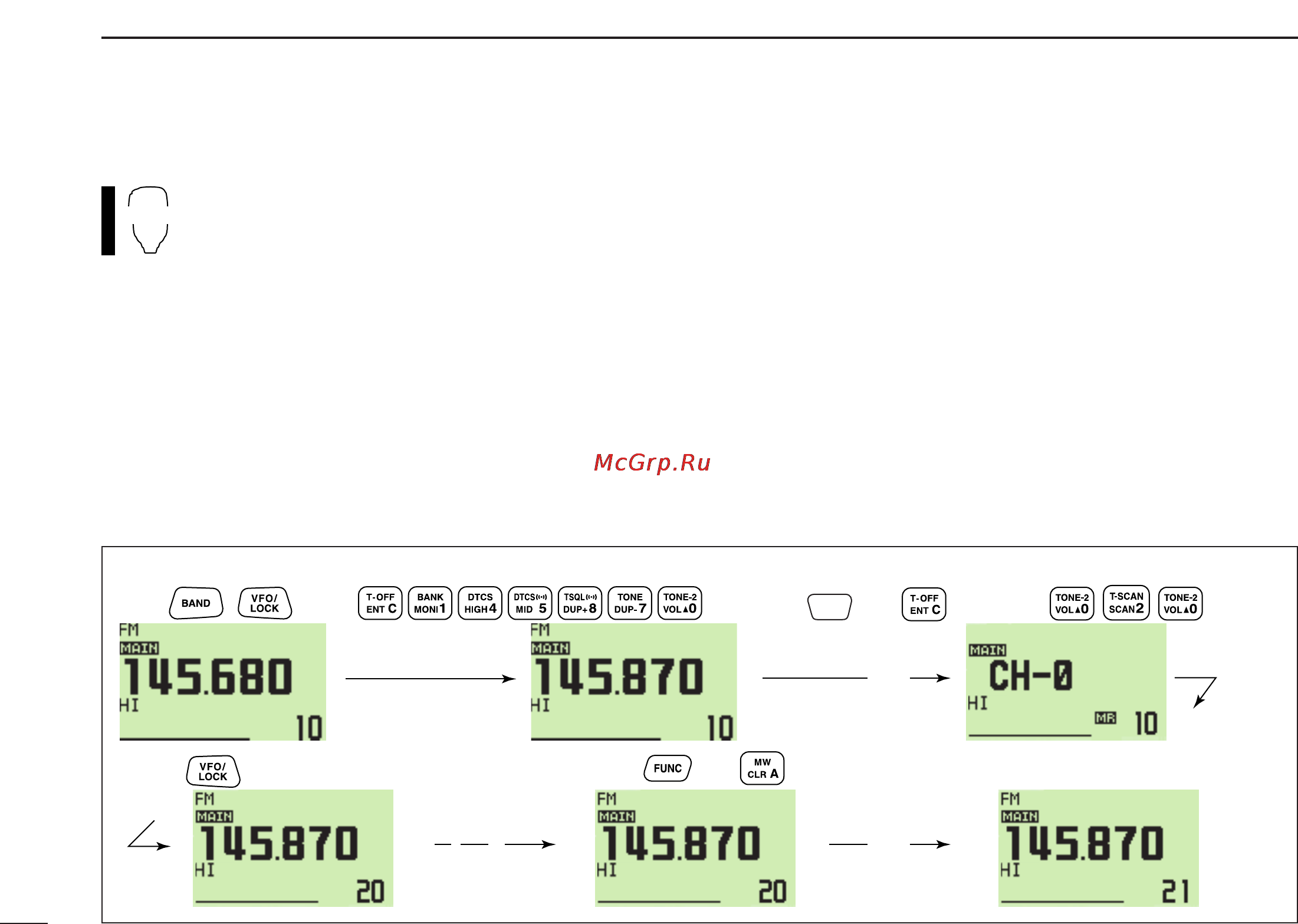

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the microphone.
Beep
“
Beep
“
Beep
Beep
Beep
“
“
“
“
“
Push ,
Push then for 1 sec. and continue to push
➠
MR/
CALL
Push then Push
Push
