GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
DD
RX GPS message indication
q Enter MENU screen via function guide.
➥ Push [F•] to display function guide.
➥ Push [MENU](V/MHz•SCAN)
(Right band’s) to enter
MENU screen.

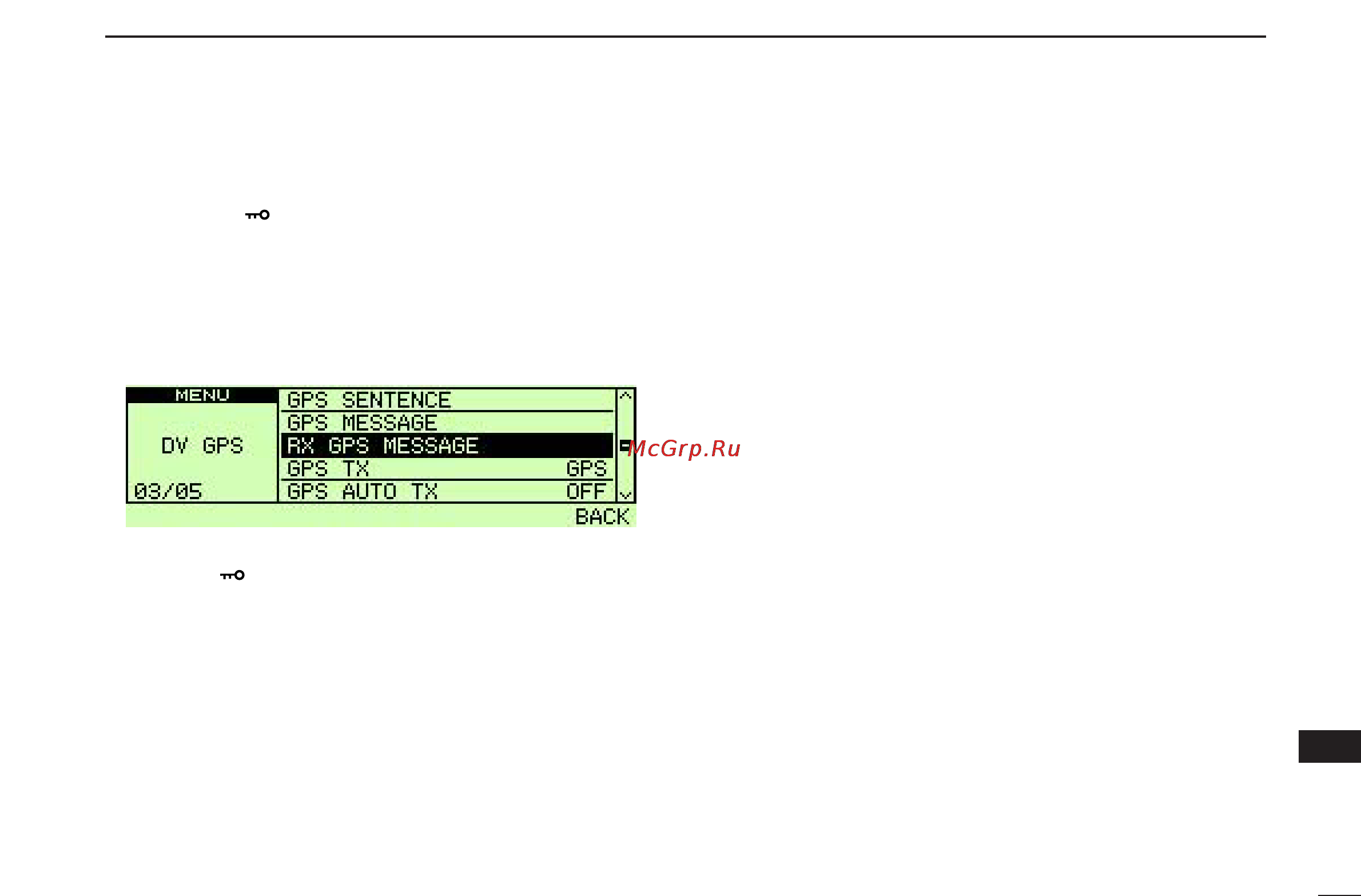

w Rotate [DIAL] to select “DV GPS,” then push
[MAIN•BAND] to enter DV GPS set mode.
e Rotate [DIAL] to select “RX GPS MESSAGE,” then push
[MAIN•BAND] to enter received GPS message.
r Verify the received GPS message.
t Push [F•]once to return to frequency indication.
DD
Programming GPS memory
Each memory channel can be programmed with an alphanu-
meric channel name for easy recognition and can be dis-
played independently by channel. Names can be a maximum
of 8 characters— see the table on page 66 for available char-
acters.
qPush [GMR](TONE•DTMF) to select GPS memory mode.
wRotate [DIAL] to select “ALL,” then push [MAIN•BAND].
eRotate [DIAL] to select the desired GPS memory channel,
then push [MAIN•BAND].
“NAME” : The GPS memory name
“TIME” : Time data
“LAT” : Latitude data
“LOT” : Longitude data
“BANK” : The memory bank
rPush [MAIN•BAND] to enter memory programming mode.
• The cursor appears on the NAME’s first character.
tRotate [DIAL] to select the desired character.
• Push [Aa](TONE•DTMF) to turn the character group from al-
phabetical characters capital letters or lower case letters.
• Push [1/](M/CALL•MW) (Right band’s) to turn the character group
from numbers or symbols.
• Push [>](M/CALL•MW) (Left band’s) to move the cursor right;
push [<](V/MHz•SCAN) (Left band’s) to move the cursor left.
• Push [CLR](DUP/MONI) to clear the selected character.
• Push and hold [CLR](DUP/MONI) for 1 sec. to clear all charac-
ters after the selected character.
yPush [MAIN•BAND] to set the channel.
• The cursor disappears.
