DV MODE OPERATION (Optional UT-123 is required)
■ Copying the call sign
DD
Copying the call sign memory contents
This function is convenient when modifying part of the current
call sign.
NOTE: Make sure that the “EDIT RECORD” item in DV set
mode is set to “AUTO” in advance.
(p. 104)
qPush [F•]twice to display the function guide 2.
wPush [CS](V/MHz•SCAN)
(Left band’s) to display the “CALL
SIGN” screen.
eRotate [DIAL] to select “YOUR” or “RPT1/2” then push
[MAIN•BAND].
rRotate [DIAL] to select the desired call sign channel.
• U01–U60 and R01–R60 are available.
tPush [MAIN•BAND].
• The selected call sign channel contents are copied into a blank
channel automatically and call sign programming mode is se-
lected.

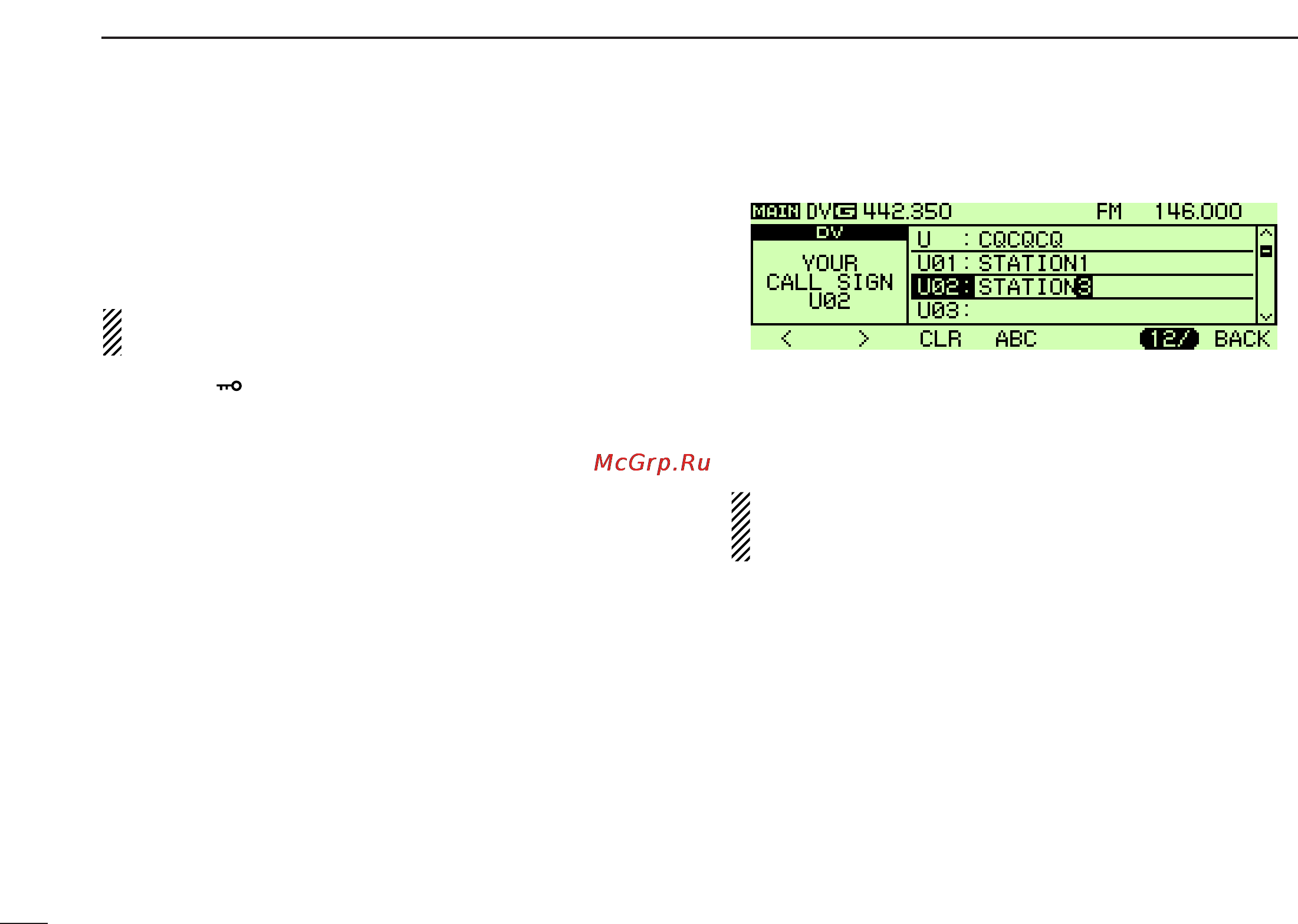

yEdit or modify the copied call sign as follows;
• Push [<](V/MHz•SCAN) (Left band’s) [>](M/CALL•MW) (Left
band’s) or to move the cursor left or right, respectively.
• Push [ABC](TONE•DTMF) to turn the character group from al-
phabetical characters capital letters.
• Push [12/](M/CALL•MW) (Right band’s) to turn the character
group from numbers or symbol.
• Push [CLR](DUP•MONI) to clear the selected character.
• Push [GW](LOW•PRIO) to turn the gateway setting ON/OFF.
(available only when “RPT1/2” is selected in step e)
uPush [BACK](V/MHz•SCAN) (Right band’s) to store the
edited/modified call sign into the selected blank channel,
or push [MAIN•BAND] to store the call sign into the chan-
nel and set for the call.
NOTE:
The message “FULL” is displayed when no blank channel
is available in the station or repeater call sign memory.
