37
5
DV MODE OPERATION (Optional UT-123 is required)
DD
Your own call sign programming
Your own call sign must be programmed for both digital voice
and low-speed data communications
(including GPS transmis-
sion).
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to enter MENU
screen.
eRotate [DIAL] to select “CALL SIGN MEMORY” then push
[MAIN•BAND].

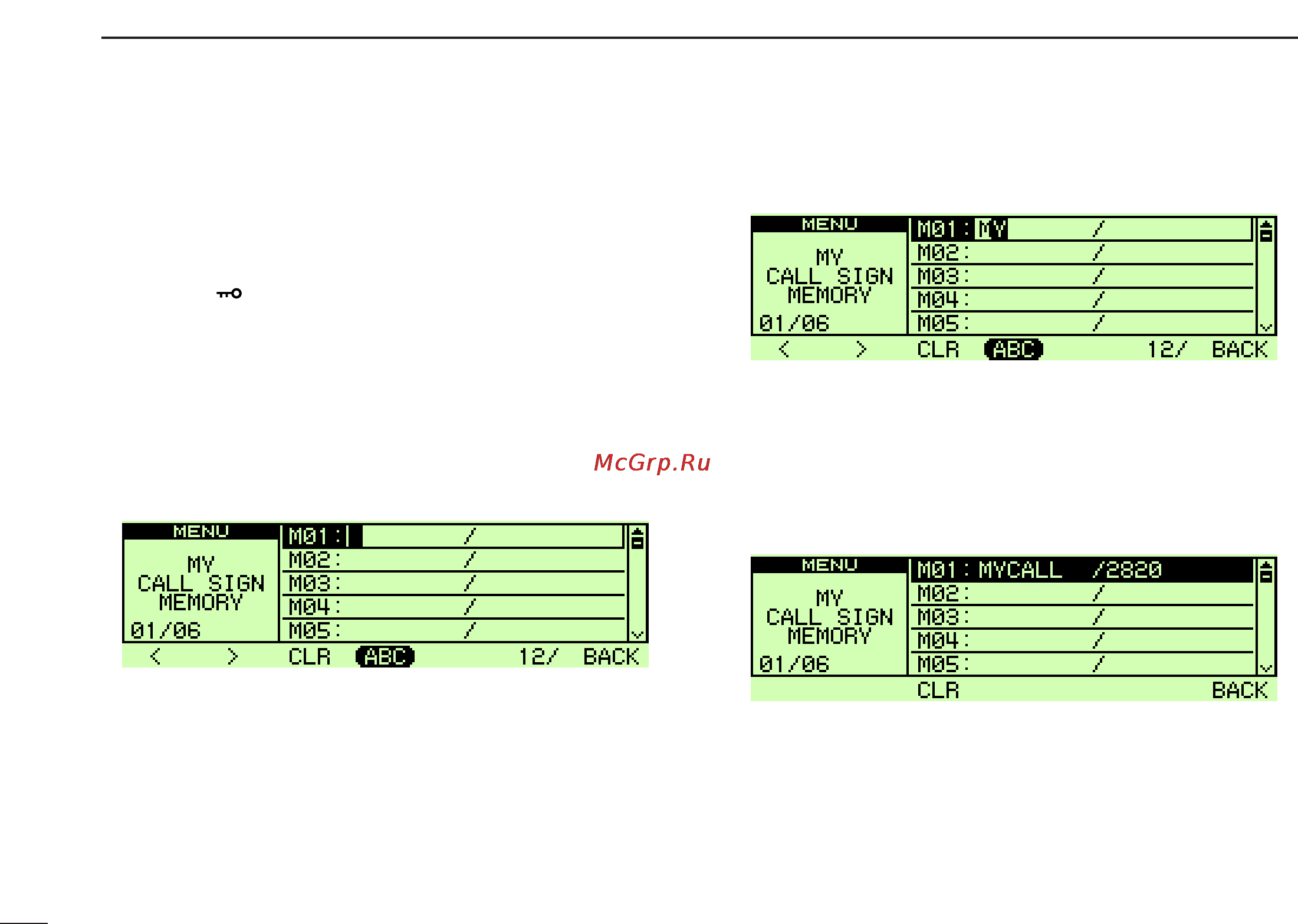

rRotate [DIAL] to select “MY CALL SIGN MEMORY” then
push [MAIN•BAND].
tRotate [DIAL] to select the desired call sign channel
(M01
to M06), then push [MAIN•BAND].
yRotate [DIAL] to select the desired character, then push
[>](M/CALL•MW)
(Left band’s) to move the cursor right.
• Push [<](V/MHz•SCAN) (Left band’s) to move the cursor left.
• Up to 8-character call signs can be entered.
• Push [ABC](TONE•DTMF) to select the character group from
capital letter characters.
• Push [12/](M/CALL•MW) (Right band’s) to select the character
group from numbers or symbols.
• Push [CLR](DUP•MONI) to clear the selected character.
uRepeat step y until your own call sign is programmed.
iPush [>](M/CALL•MW)
(Left band’s) several times to move
the cursor to “/” position.
•Ato Z, 0 to 9 and “/” characters are available.
• If no note is required, skip steps i and o, go to step !0.
oRepeat step y to program the desired 4-character note.
!0Push [MAIN•BAND] to store the programmed call sign
(or
with note).
!1Push [BACK](V/MHz•SCAN)
(Right band’s) three times to
return to frequency indication.
