DV MODE OPERATION (Optional UT-123 is required)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
DD

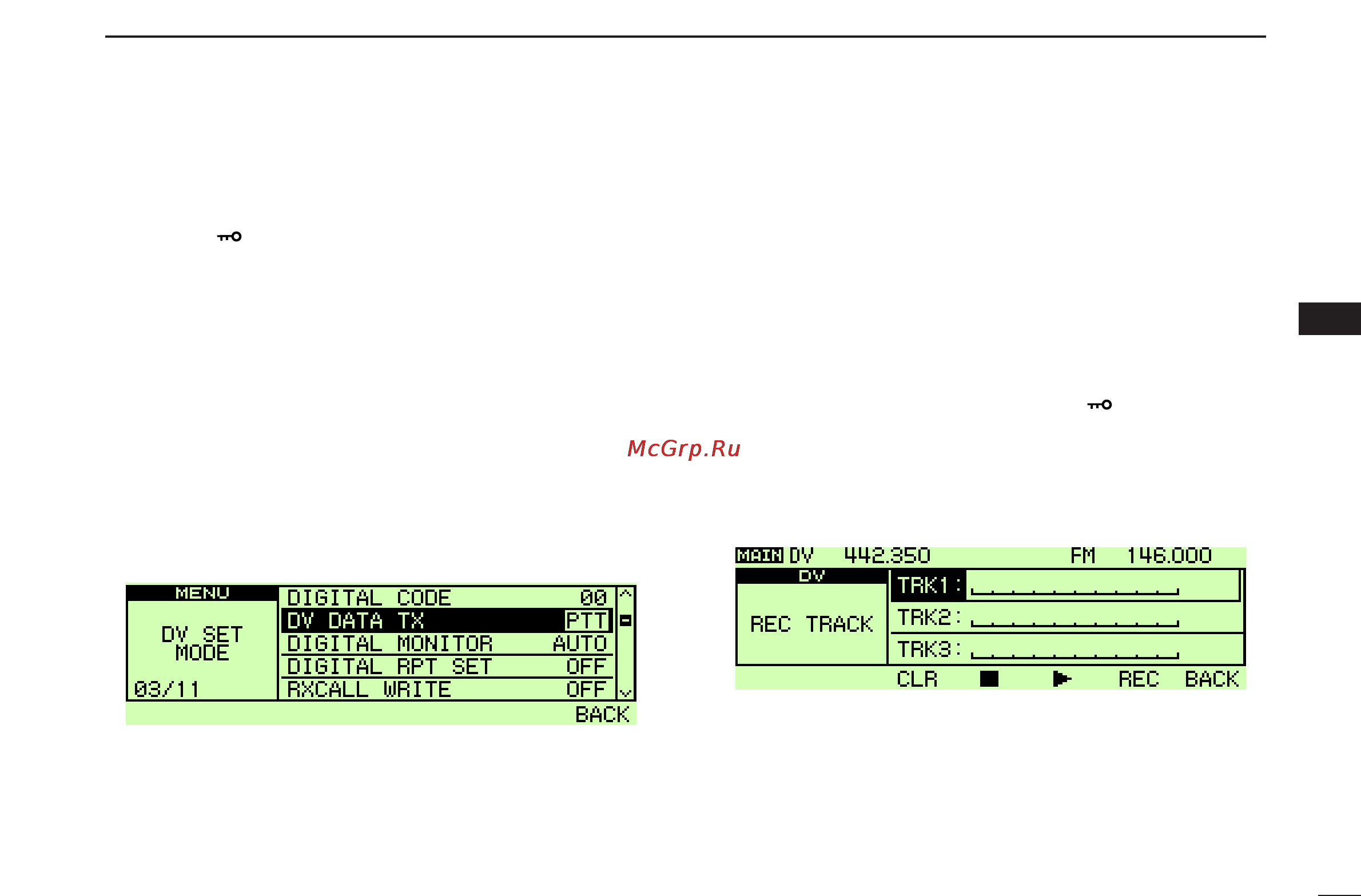

Transmission condition setting
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
eRotate [DIAL] to select “DV SET MODE,” then push
[MAIN•BAND].
rRotate [DIAL] to select “DV DATA TX,” then push
[MAIN•BAND].
tRotate [DIAL] to select the desired transmission condition.
PTT : The entered text data in the Terminal Window
(buffer screen) is transmitted when [PTT] is
pushed.
(default)
AUTO : The entered text data in the Terminal Window
(buffer screen) is automatically transmitted when
text is entered.
yPush [BACK](V/MHz•SCAN)
(Right band’s) three times to
exit from DV set mode screen.
■ DV voice memory
The IC-2820H has a DV voice memory that records aa total of
30 sec. (approx.) of received audio.
The DV voice memory is divided into 2 tracks, 15 seconds
each in a track, as the default setting.
DD
Recording received audio
qSelect DV mode in main band, and deactivate the priority
watch
(p. 81) and weather alert function (p. 123) if activated.
wWhile receiving a DV signal, push [F•]twice to display
the function guide 2.
ePush [REC](M/CALL•MW)
(Right band’s) to display the
REC track screen.
rRotate [DIAL] to select the desired track.
• Bar meter is displayed for the track that has been recorded.
tPush [REC](M/CALL•MW) (Right band’s) to start recording.
•Track counter (bar meter) is displayed during record.
• The recording is paused automatically when the DV signal is in-
terrupted or when the DV audio signal cannot be received cor-
rectly. Re-starts the recording when the DV audio signal is
received correctly.
yPush [■](TONE•DTMF) to stop recording.
• The recording stops automatically when the track becomes full.
