DV MODE OPERATION (Optional UT-123 is required)
■ Digital voice mode operation
qSet the desired band (Left or Right) as the main band. (p. 15)
• Select output power, if desired. (p. 21)
wSelect DV mode. (p. 21)
eSet your own call sign for DV operation as follows.
zPush [F• ] twice to display the function guide 2.

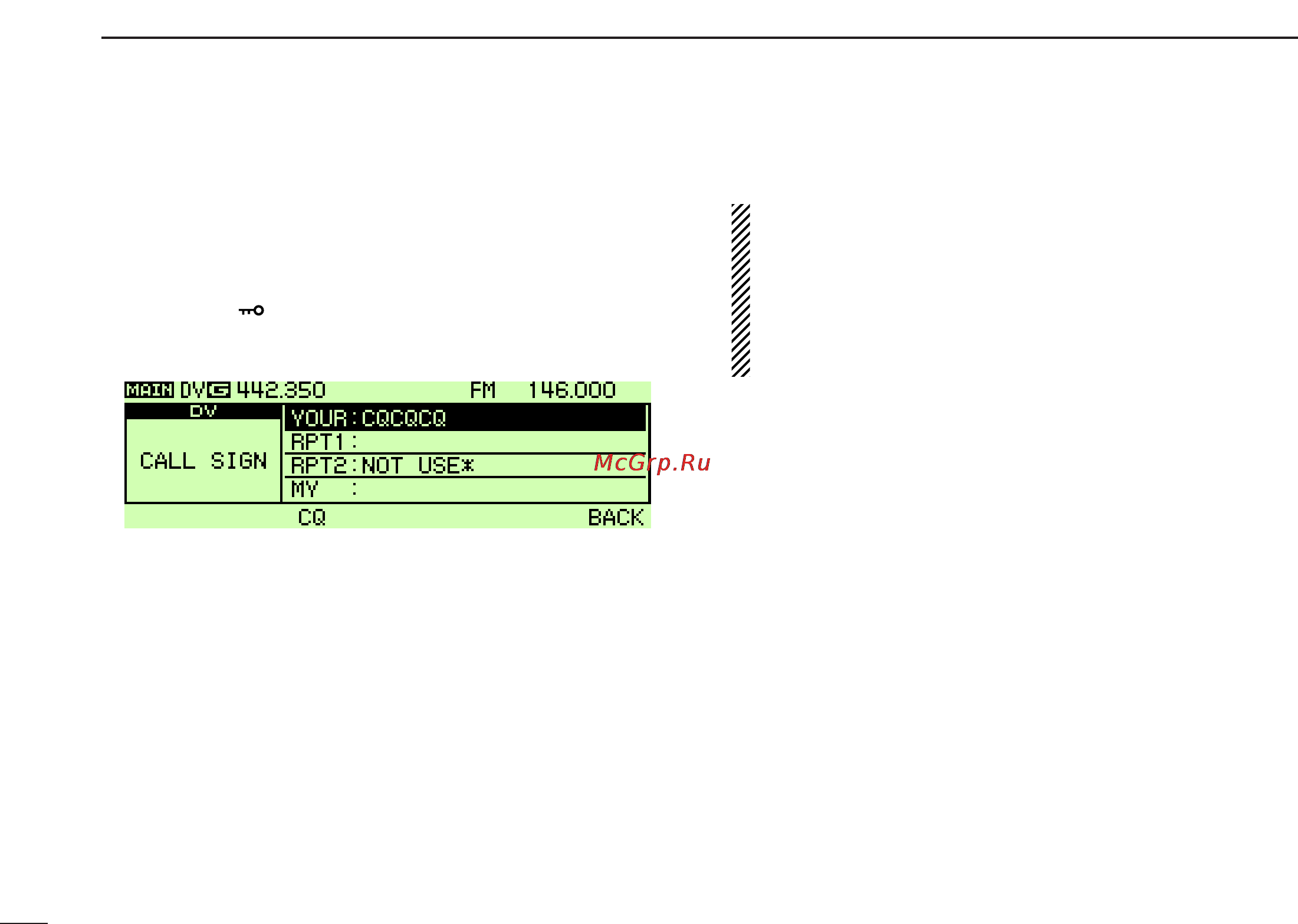

xPush [CS](V/MHz•SCAN)
(Left band’s) to display call sign
screen.
cRotate [DIAL] to select “MY” then push [MAIN•BAND].
vRotate [DIAL] to select the desired your own call sign
memory channel, then push [BACK](V/MHz•SCAN)
(Right band’s) to set “MY CALL SIGN.”
• See page 37 for your own call sign programming details.
rSet the desired call sign as described in “When calling the
desired station
(p. 40)” or “When sending a CQ (p. 40).”
tPush and hold [PTT] to transmit and speak into the micro-
phone at normal voice level.
•“$” appears and the RF meter shows the output power.
yRelease [PTT] to return to receive.
• The other station call sign will be received.
• Received call signs can be stored into the received call record
automatically. See page 47 for details.
NOTE: The digital mode operation is vastly different from
FM mode. One of the differences is that in digital mode the
squelch does not function as in FM mode. Changing the
squelch setting will not open it to hear the hiss of “White
Noise.” It only activates for digital squelch functions such
as CSQL
(Digital code squelch) or DSQL (Digital call sign
squelch).
