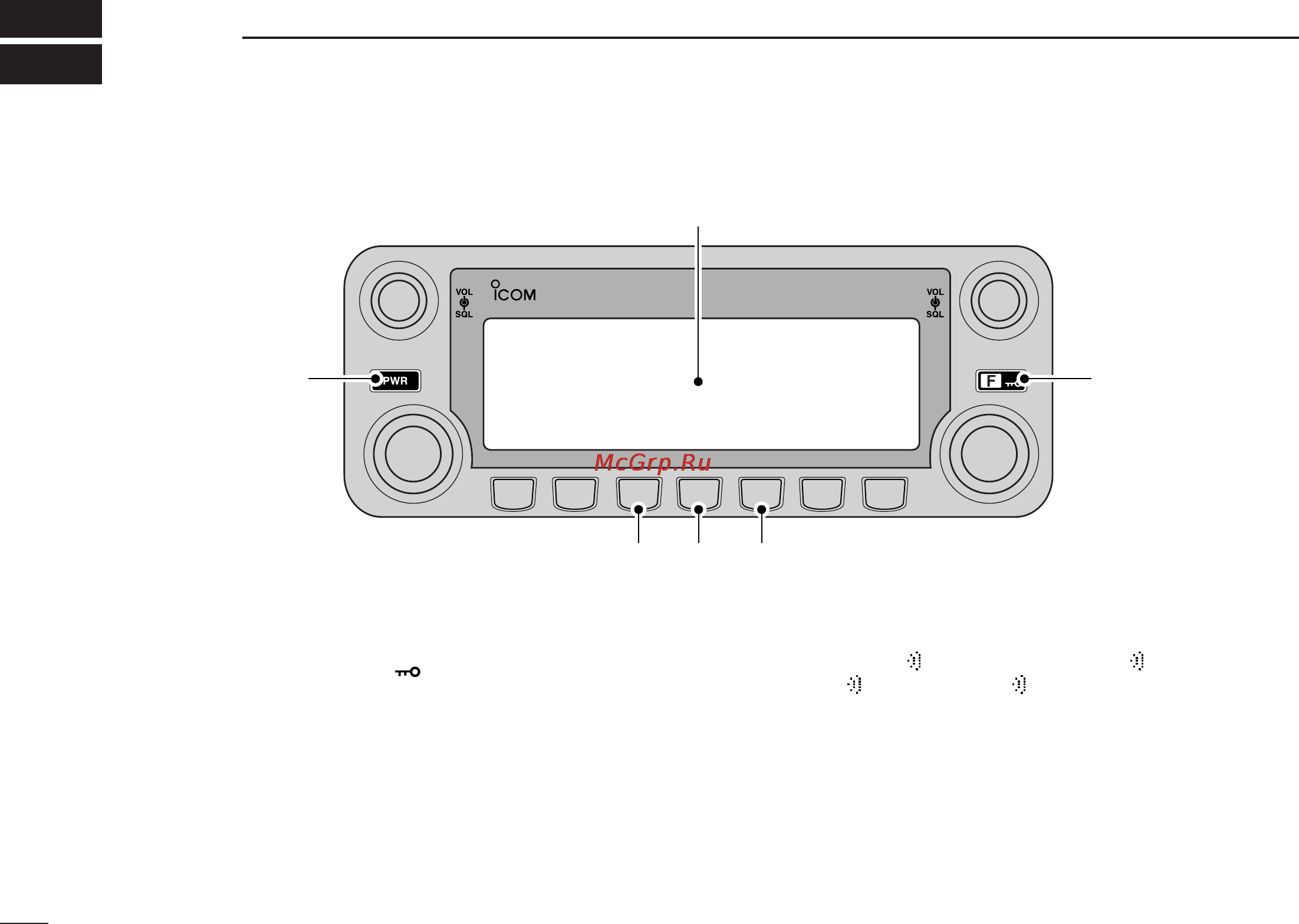

■ Front panel— controller
qPOWER KEY [PWR]
Push and hold for 1 sec. to turn power ON and OFF.
wFUNCTION•LOCK KEY [F•]
➥ Push to display the function guide.
(p. 7)
➥ Push and hold for 1 sec. to turn the lock function ON
and OFF.
(p. 19)
eOUTPUT POWER•PRIORITY KEY [LOW•PRIO]
➥ Each push changes the output power selection.
(p. 21)
➥ Push and hold for 1 sec. to start a priority watch. (p. 81)
rTONE•DTMF KEY [TONE•DTMF]
➥ Each push selects a tone function.
(pgs. 30, 86, 91)
•TONE, TSQL , TSQL, TSQL-R, DTCS , DTCS, DTCS-R,
DSQL ,* DSQL,* CSQL ,* CSQL* or tone function OFF
can be selected.
*Available only when optional UT-123 is installed.
➥
Push and hold for 1 sec. to enter DTMF set mode. (p. 82)
tDUPLEX•MONITOR KEY [DUP•MONI]
➥ Push to select DUP–, DUP+ and simplex
(no indicator vis-
ible) operation. (p. 30)
➥ Push and hold for 1 sec. to turn the monitor function ON
and OFF.
(p. 24)
DUP
MONI
TONE
DTMF
LOW
PRIO
M/CALL
MW
V/MHz
SCAN
V/MHz
SCAN
M/CALL
MW
M
A
I
N
B
A
N
D
M
A
I
N
B
A
N
D
DUAL BAND TRANSCEIVER
i2820H
Function display (pgs. 3–8)
q
ert
w
1
PANEL DESCRIPTION
1
*The keys w to t are for
the MAIN band only.
