PANEL DESCRIPTION
■ Function guide indications
The function guide indications allow you to simply using a
wide variety of functions.

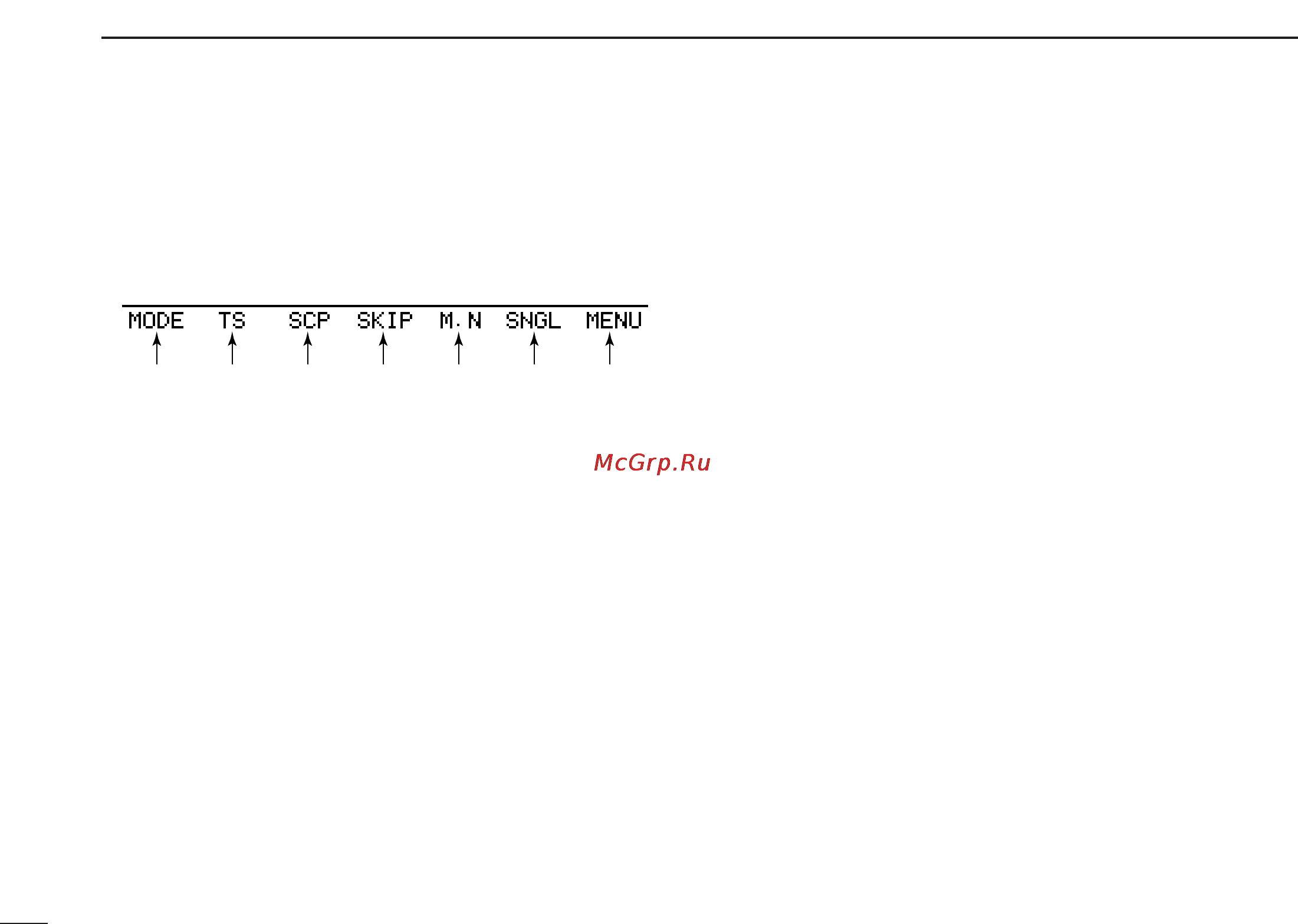

D Function guide
qMODE KEY [MODE](V/MHz•SCAN) (p. 21)
Push to select an operating mode from FM, FM-N, AM,
AM-N and DV* in main band.
*Available only when the optional UT-123 is installed.
wTUNING STEP KEY [TS](M/CALL•MW) (p. 18)
Push to display the tuning step selection mode.
• 5.0,* 6.25,* 10, 12.5, 15,* 20, 25, 30 and 50 kHz steps are avail-
able. *Not selectable in 900 MHz band.
eBAND SCOPE KEY [SCP](DUP•MONI) (p. 28)
➥ Push to display the simple band scope and make a sin-
gle sweep of the band.
➥ Push and hold for 1 sec. to display the simple band
scope and sweep continuously.
• Push [SCP](DUP•MONI) momentarily to cancel the sweep.
rSCAN SKIP KEY [SKIP](TONE•DTMF) (p. 79)
In memory mode, push to select the scan skip condition
for the selected memory channel.
•“≈” appears when memory skip, “P≈” appears when program
skip selection.
tMEMORY NAME INDICATION KEY [M.N](LOW•PRIO)
(p. 67)
Push to select the memory name indication.
• Memory name, frequency and OFF selections are available.
ySINGLE WATCH KEY [SNGL](M/CALL•MW) (p. 25)
Push to select the single band operation mode.
• Push [DUAL](M/CALL•MW)(for right band) to select the dual-
watch mode.
uMENU MODE KEY [MENU](V/MHz•SCAN) (p. 98)
Push to select the MENU screen indication.
