131
16
GPS/GPS-A OPERATION
DD
GPS alarm setting
GPS alarm sounds when your own position is close the spec-
ified area. This function can be set the received channel,
specified GPS memory channel, all GPS memory channels
or a memory bank.

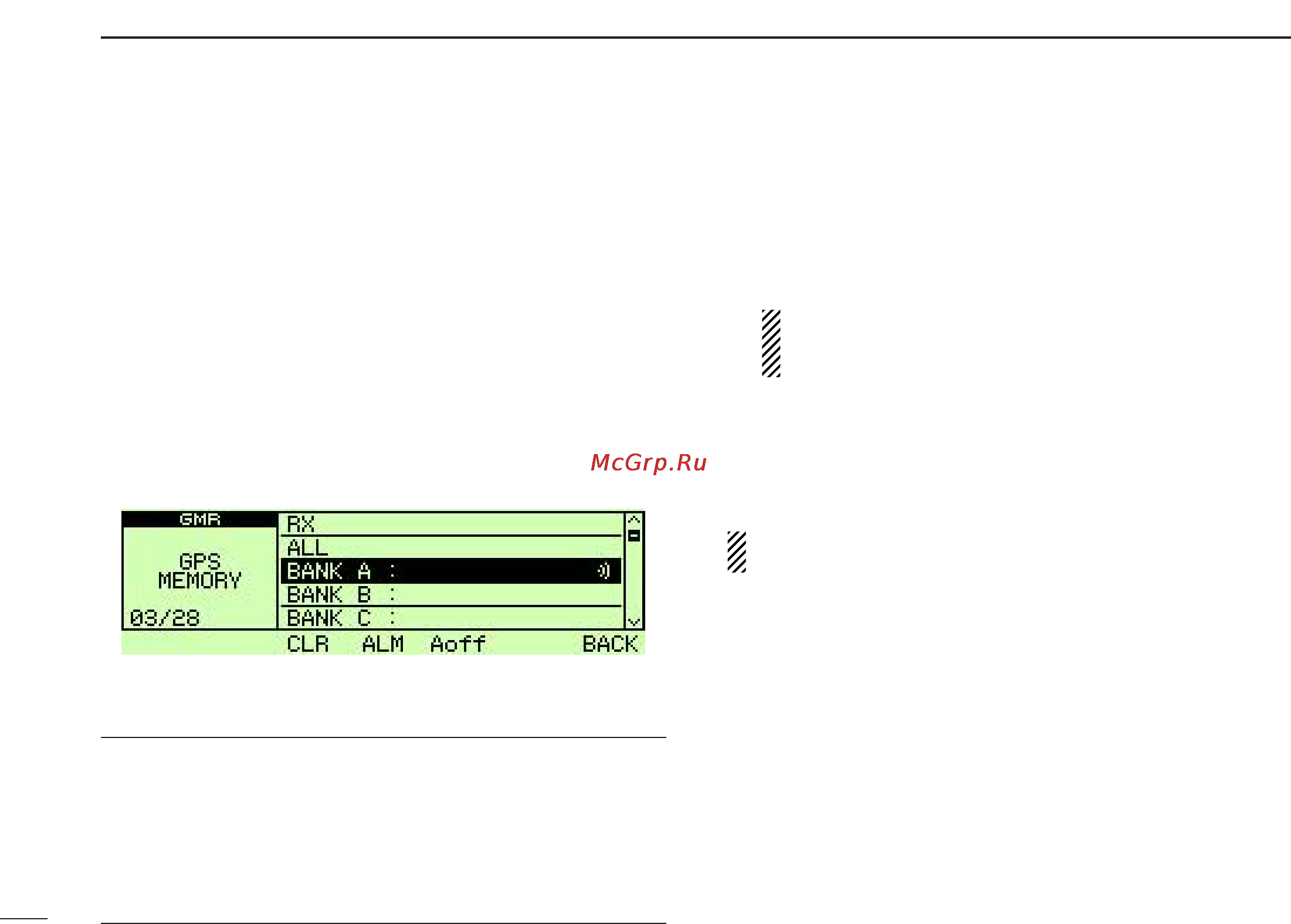

qPush [GMR](TONE•DTMF) to select GPS memory mode.
wRotate [DIAL] to select the desired memory group, or
memory channel.
• “RX,” “ALL,” one of memory bank or memory channel can be se-
lected.
ePush [ALM](TONE•DTMF) to turn the alarm function ON.
• Push [ALM](TONE•DTMF) again or push [Aoff](LOW•PRIO) to
turn OFF the alarm function.
rPush [BACK](V/MHz•SCAN) (Right band’s) once or twice to
return to frequency indication.
✔
For your information!
• When “RX” or memory channel is selected above step w,
alarm functions depending on “ALM AREA2” setting in the
GPS set mode (p. 112).
• When “ALL” or memory bank is selected above step w,
alarm functions depending on “ALM AREA1” setting in the
GPS set mode (p. 112).
DD
GPS memory clearing
qPush [GMR](TONE•DTMF) to select GPS memory mode.
wRotate [DIAL] to select “ALL,” or desired memory bank,
then push [MAIN•BAND].
eRotate [DIAL] to select the desired GPS memory channel
•“ALL” or one of memory bank can also be selected.
NOTE: When selecting “ALL” or one of the memory banks,
all memory channels or all memory channels in the specified
memory bank are cleared, respectively.
rPush and hold [CLR](DUP•MONI) for 1 sec. to clear.
•3 beeps sound, then the memory channel is cleared.
• Remaining channels scroll up.
tPush [BACK](V/MHz•SCAN) (Right band’s)
twice to return
to frequency indication.
NOTE: Be careful!— the contents of cleared memories
CANNOT be recalled.
