Icom IC-2820H [74/164] D message transmission
![Icom IC-2820H [74/164] D message transmission](/views2/1074119/page74/bg4a.png)
53
5
DV MODE OPERATION (Optional UT-123 is required)
DD
Message Transmission
Select the message transmission function ON (Ch01–05) and
OFF. When a message channel is selected, the transceiver
transmits a text message
(pre-programmed). (default: OFF)
qPush [F•]twice to display the function guide 2.
wPush [MSG](LOW•PRIO) to display the “MESSAGE”
screen.
eRotate [DIAL] to select “TX MESSAGE,” then push
[MAIN•BAND].
rRotate [DIAL] to select the desired message channel.
• “Ch01” to “Ch05” available.
• See page 52 for message programming.
tPush [BACK](V/MHz•SCAN) (Right band’s) to set the mes-
sage for transmission.
yPush [BACK](V/MHz•SCAN)
(Right band’s) again to return
to function guide 2 indication.
uPush [PTT] to transmit the selected message.
• The message is transmitted each time [PTT] is pushed.
• The message is transmitted each 30 sec. automatically during
continuous transmission.
iRelease [PTT] to return to receive.

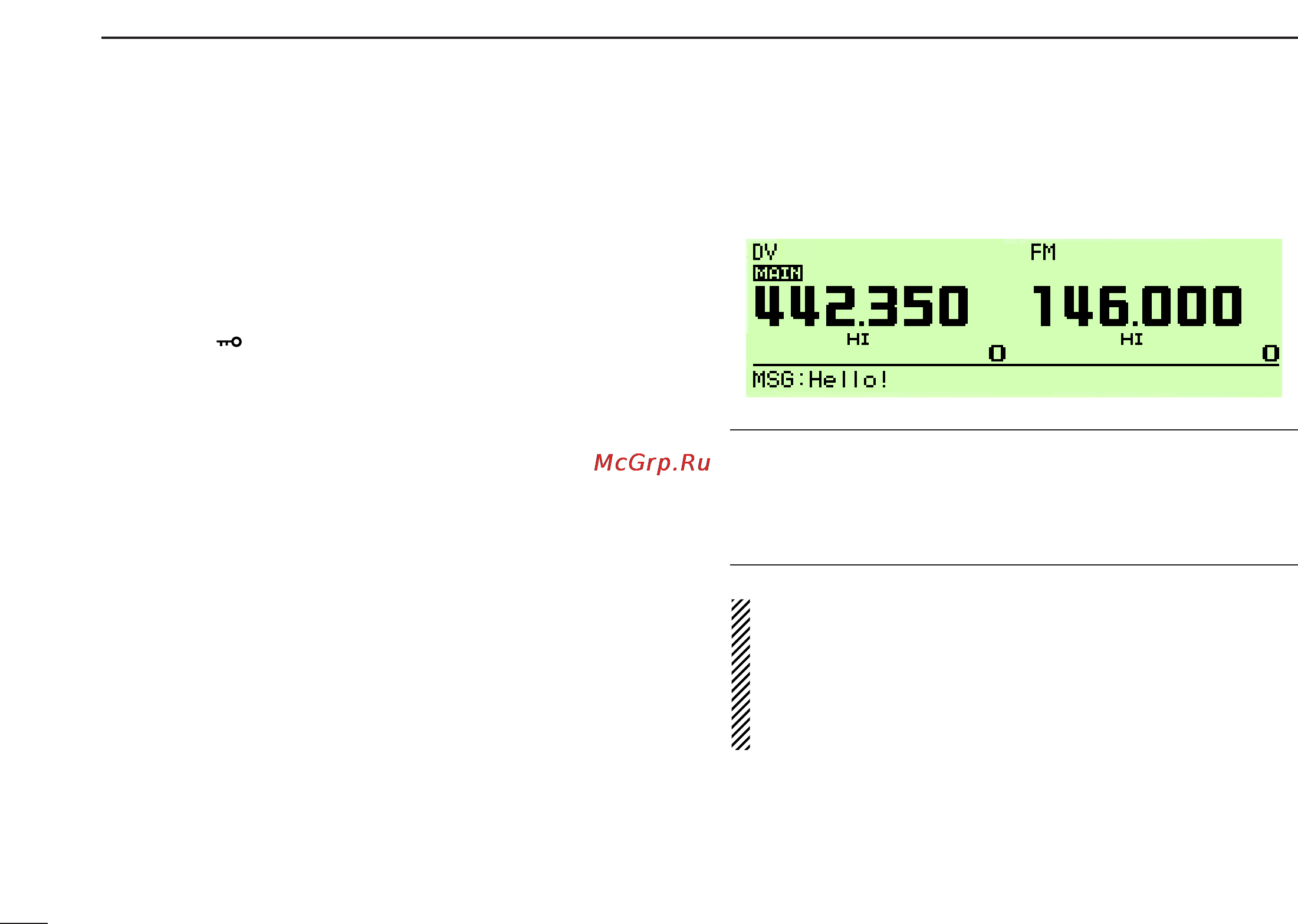

oWhen the reply call with a message is received, the call
sign and the message displays alternately at the bottom of
the function display.
✔
For your information
The automatic received call sign and/or message indication
can be turned OFF in display set mode, if desired.
➥ RX CALL SIGN
(p. 108)
➥ RX MESSAGE (p. 108)
NOTE: Only 1 message can be stored in the IC-2820H.
The received message is cleared by turning power OFF,
or overwritten when another message is received.
A transmitted message that includes lower case charac-
ters from the IC-2820H may not be decoded and displayed
correctly by the ID-800H, IC-V82/U82, etc.
