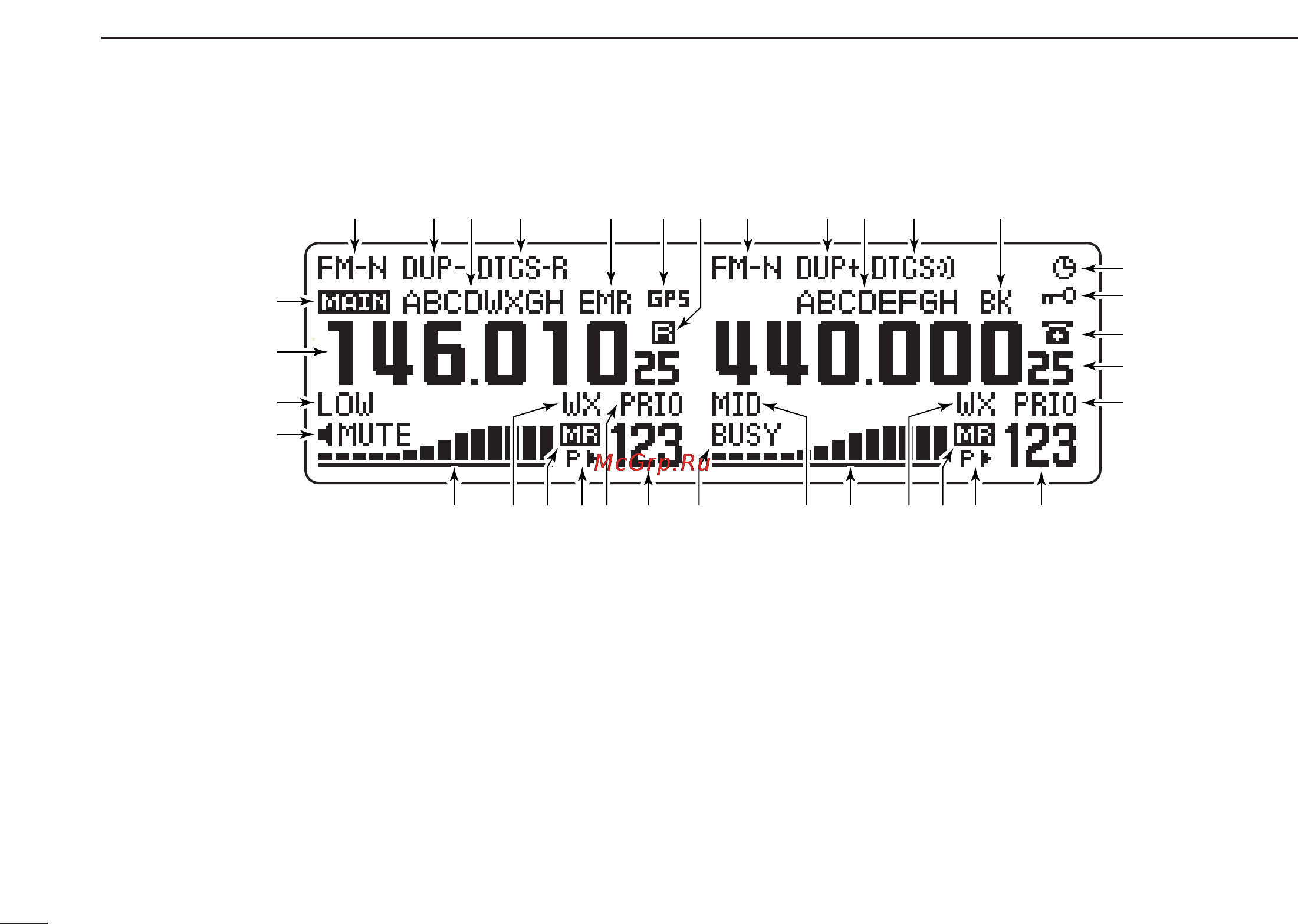

PANEL DESCRIPTION
■ Function display— continued
!9OUTPUT POWER INDICATORS
“LOW” appears when low output power; “MID” appears
when middle output power, “HI” appears when high output
power is selected.
@0BUSY INDICATOR
➥ Appears when a signal is being received or the squelch
is open.
(p. 20)
➥ Blinks while the monitor function is activated. (p. 24)
@1AUDIO MUTE INDICATOR
Appears when the audio mute
(p. 27) or sub band mute
(p. 24) function is in use.
@2MAIN INDICATOR
(p. 15)
Indicates the main band for transmit and function control.
