56
5
DV MODE OPERATION (Optional UT-123 is required)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
DD
Play-back or erase the voice memory
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
eRotate [DIAL] to select “DV VOICE MEMO,” then push
[MAIN•BAND].
rRotate [DIAL] to select “REPLY VOICE,” then push
[MAIN•BAND].

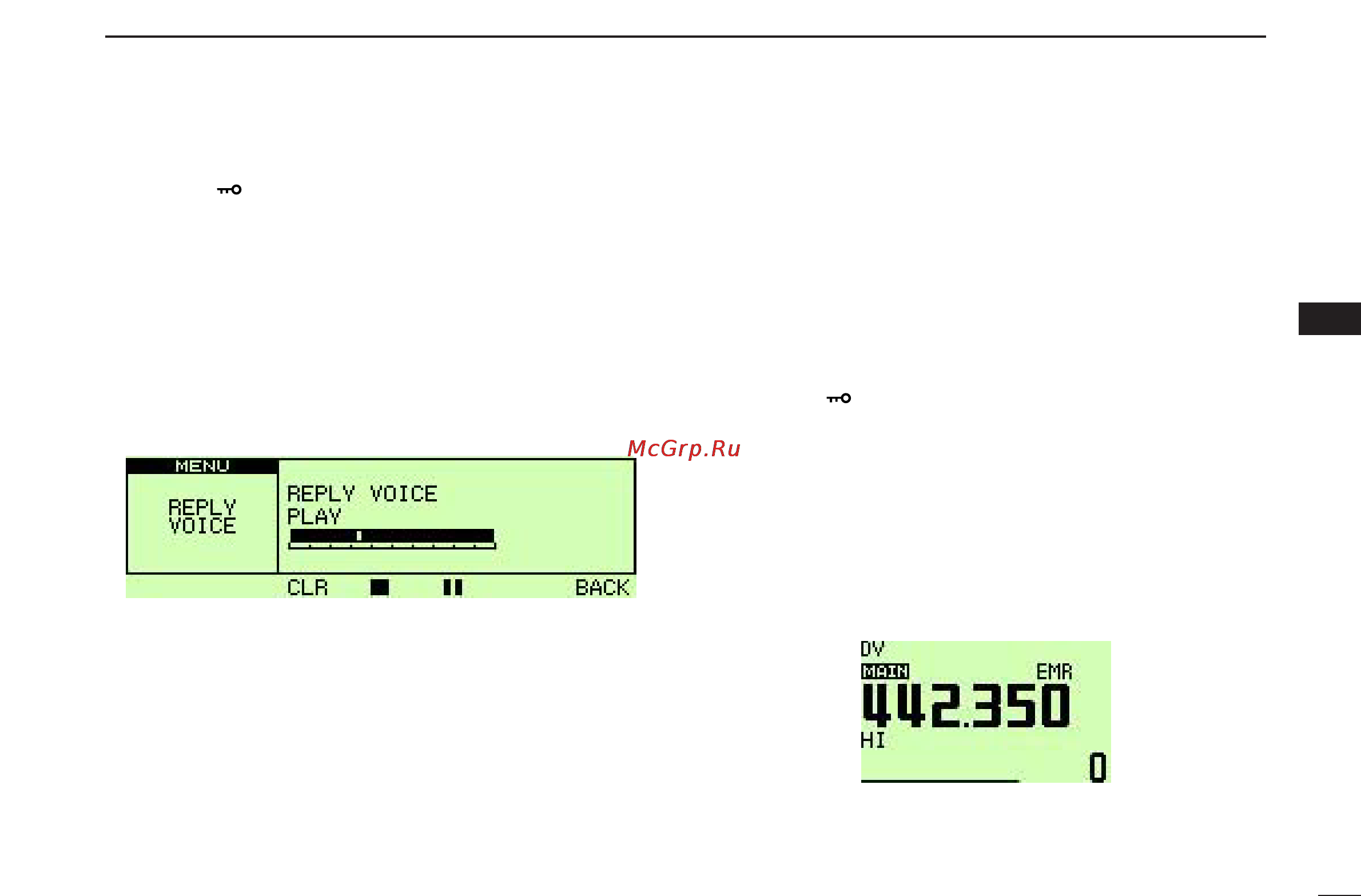

tTo play-back the recorded reply voice, push
[≈](LOW•PRIO).
• Push [||](LOW•PRIO) to pause, push [■](TONE•DUP) to cancel
the play-back.
yTo erase the reply voice, push [CLR](DUP•MONI).
uPush [BACK](V/MHz•SCAN) (Right band’s) three times to
exit from DV VOICE MEMO screen.
■ EMR communication
The EMR communication mode is available for digital mode
operation. In the EMR communication mode, no call sign set-
ting is necessary. When an EMR communication mode sig-
nal is received, the audio (voice) will be heard at the specified
level even the volume setting level is set to minimum level, or
digital call sign/digital code squelch is in use.
qSet the desired frequency in 144 or 440 MHz band.
wPush [F•]to display the function guide.
ePush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
rRotate [DIAL] to select “DV SET MODE,” then push
[MAIN•BAND].
tRotate [DIAL] to select “EMR,” then push [MAIN•BAND].
yRotate [DIAL] to select “ON,” then push [MAIN•BAND].
uPush [BACK](V/MHz•SCAN) (Right band’s) twice to exit
from DV set mode.
• “EMR” appears
iOperate the transceiver normally.
oTo cancel the EMR communication mode, select “OFF” in
EMR at step y.
