Icom IC-2820H [119/164] Menu screen operation
![Icom IC-2820H [119/164] Menu screen operation](/views2/1074119/page119/bg77.png)
98
14
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ General
MENU screen is used for programming infrequently changed
values or conditions of functions.

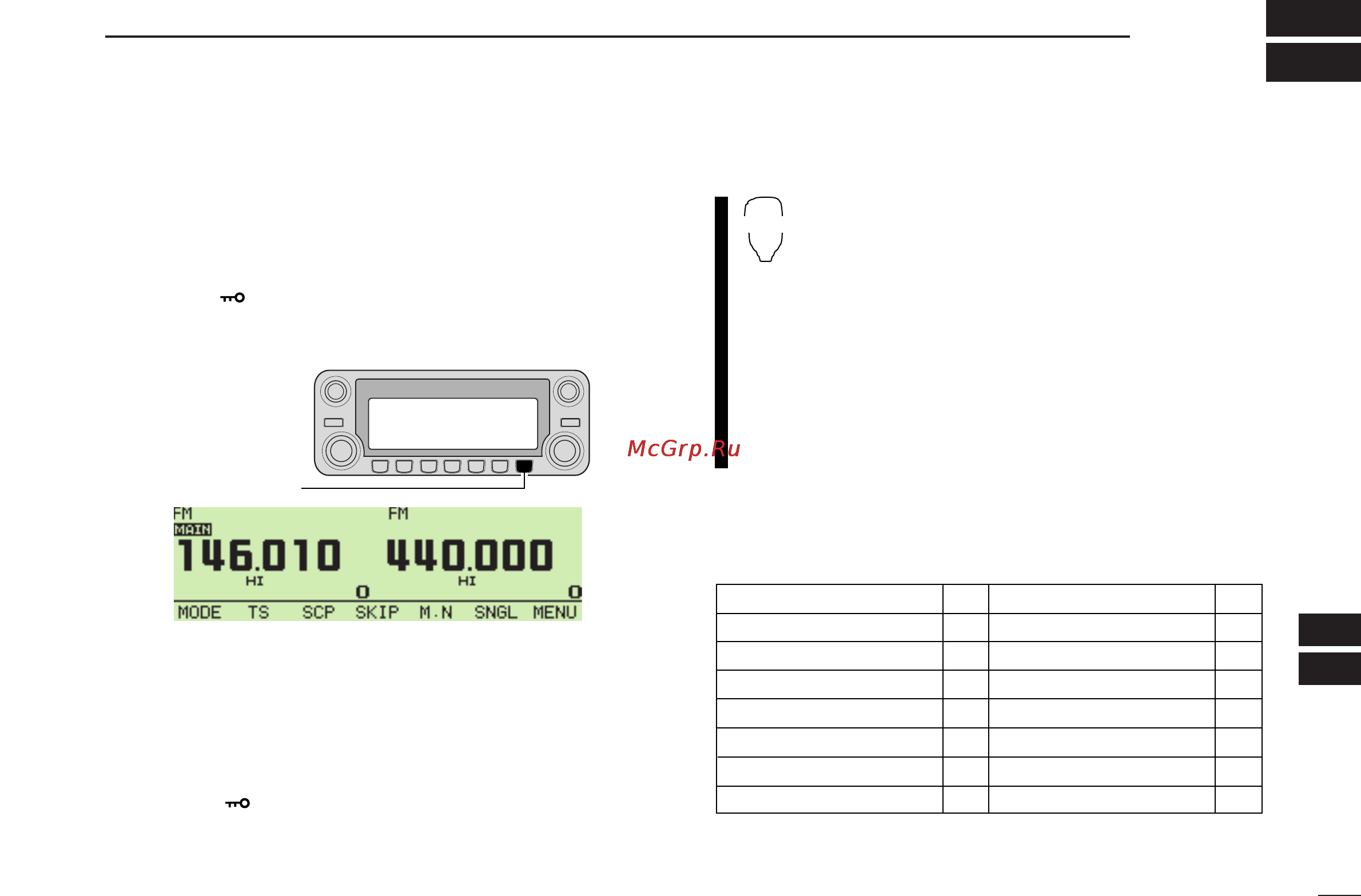

• Entering MENU screen and operation
q Push [F•]to display the function guide.
w Push [MENU](V/MHz•SCAN)
(Right band’s) to enter MENU
screen.
e Rotate [DIAL] to select the desired menu group, then push
[MAIN•BAND].
r Rotate [DIAL] to select the desired item, then push
[MAIN•BAND].
t Rotate [DIAL] to select the desired condition or value, then
push [MAIN•BAND].
y Push [F•]to return to frequency indication or push
[BACK](V/MHz•SCAN)
(Right band’s) to return the previous
screen.
z Push [
SET
B(D-OFF)] to enter MENU screen.
x Push [Y] or [Z] to select the desired menu group,
then push [
SET
B(D-OFF)] to enter the appropri-
ate set mode.
c Push [Y] or [Z] to select the desired item, then
push [
SET
B(D-OFF)].
v Push [Y] or [Z] to select the condition or value
then push [
SET
B(D-OFF)].
b Push [
CLR
A(MW)] to exit set mode or push
[
ENT
C(T-OFF)] to return to the previous indica-
tion.
■ Menu list
†
Refer to the chapter 5 for details.
CALL SIGN MEMORY
†
RX CALL SIGN
†
DV MESSAGE
†
DV VOICE MEMO
†
SET MODE
DV SET MODE
SCAN
ITEMS
—
—
—
—
p. 101
p. 103
p. 105
DUP/TONE...
DISPLAY
SOUNDS
DV GPS
PACKET
GPS SET MODE
GPS-A SET MODE
p. 106
p. 107
p. 109
p. 110
p. 111
p. 111
p. 113
REF. ITEMS REF.
SET
B
[MENU]
