DD

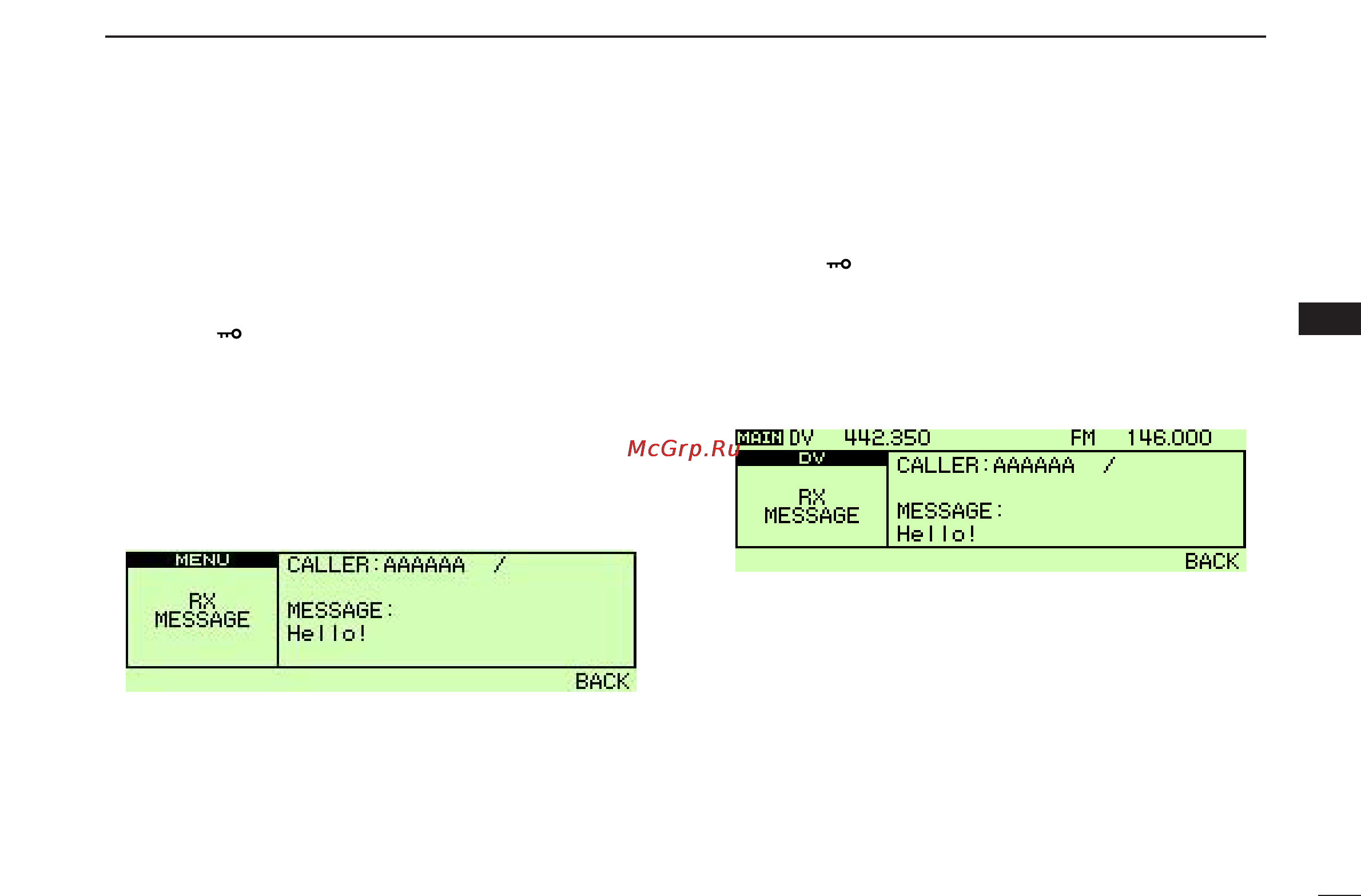

RX message indication
The received message can also be checked via MENU
screen and function guide 2.
➥
Via MENU screen
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
eRotate [DIAL] to select “DV MESSAGE,” then push
[MAIN•BAND].
rRotate [DIAL] to select “RX MESSAGE,” then push
[MAIN•BAND].
• The received message with the call sign is displayed in RX MES-
SAGE screen.
tPush [BACK](V/MHz•SCAN) (Right band’s) three times to
return to frequency indication.
➥
Via function guide 2
qPush [F•]twice to display the function guide 2.
wPush [MSG](LOW•PRIO) to display the “MESSAGE”
screen.
eRotate [DIAL] to select “RX MESSAGE,” then push
[MAIN•BAND].
• The received message with the call sign is displayed in RX MES-
SAGE screen.
rPush [BACK](V/MHz•SCAN) (Right band’s) twice to return
to function guide indication.
