116
15
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

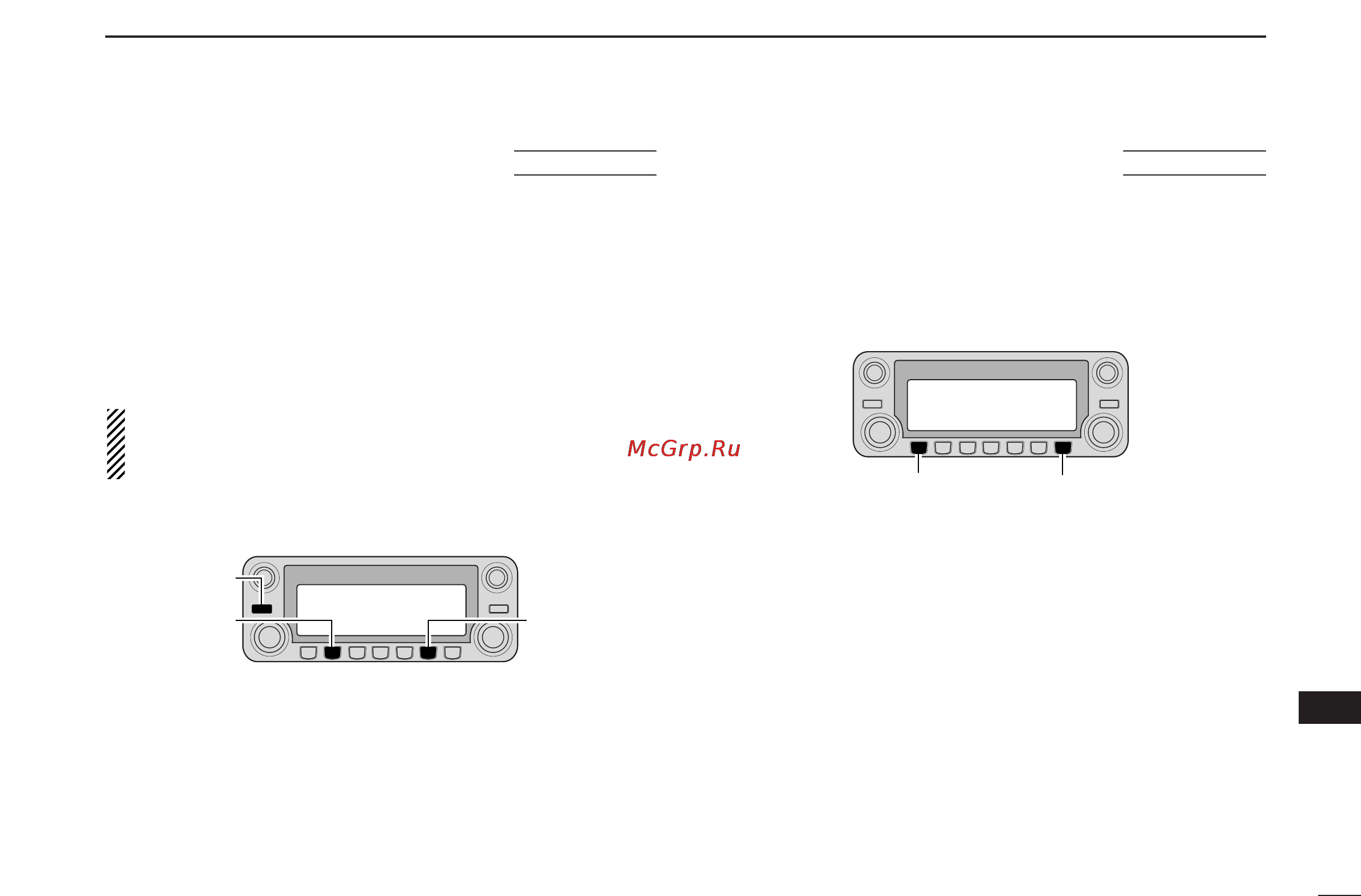

■ All reset
The function display may occasionally display erroneous in-
formation
(e.g. when first applying power). This may be caused
externally by static electricity or by other factors.
If this problem occurs, turn power OFF. After waiting a few
seconds, turn power ON again. If the problem persists, per-
form the following procedure.
•Partial reset is also available. See right for details.
IMPORTANT!:
Resetting the transceiver CLEARS all memory information
and initializes all values in the transceiver.
➥ While pushing both band’s [M/CALL•MW], turn the power
ON to reset the CPU.
■ Partial reset
If you want to initialize the operating conditions (VFO frequency,
VFO settings, menu group’s contents) without clearing the mem-
ory contents, a partial reset function is available.
➥ While pushing either band’s [V/MHz•SCAN], turn the
power ON to partially reset the transceiver.
[V/MHz•SCAN] [V/MHz•SCAN]
AT
POWER ON
[M/CALL•MW]
While pushing both [M/CALL•MW], turn power ON.
[M/CALL•MW]
[PWR]
AT
POWER ON
