GPS/GPS-A OPERATION
DD
Position indication
q Push [F•]several times to display function guide 3.
w Push [POSI](M/CALL•MW)
(Left band’s) once to display the
“POSITION” screen.
e Push and hold [G-WR](DUP•MONI) for 1 sec. to store the
your current position information, if desired.
r Push [F•]once to return to frequency indication.
DD
GPS data communication
The transceiver transmits a GPS data or DV data to your con-
necting PC via the [DATA] jack depending on the data com-
munication setting.
➥
While in DV mode operation and displayed position
indication as above, push [DATA](V/MHz•SCAN)
(Left
band’s) to toggle the GPS data communication ON and OFF.
• ON : GPS data from the connected GPS receiver.
• OFF: DV data such as the low-speed data communica-
tion data (p. 57) or received position data (p. 129).
DD
GPS Automatic transmission
q Enter MENU screen via function guide.
➥ Push [F•] to display function guide.
➥ Push [MENU](V/MHz•SCAN)
(Right band’s) to enter
MENU screen.
w Rotate [DIAL] to select “DV SET MODE,” then push
[MAIN•BAND] to enter DV set mode.
e Rotate [DIAL] to select “DV DATA TX,” then push
[MAIN•BAND].
r Rotate [DIAL] to select “AUTO,” then push [MAIN•BAND].
tPush [BACK](V/MHz•SCAN)
(Right band’s) to return to
MENU screen.
y Rotate [DIAL] to select “DV GPS,” then push
[MAIN•BAND] to enter DV GPS set mode.
u Rotate [DIAL] to select “GPS TX,” then push
[MAIN•BAND].
i Rotate [DIAL] to select “GPS,” then push [MAIN•BAND].

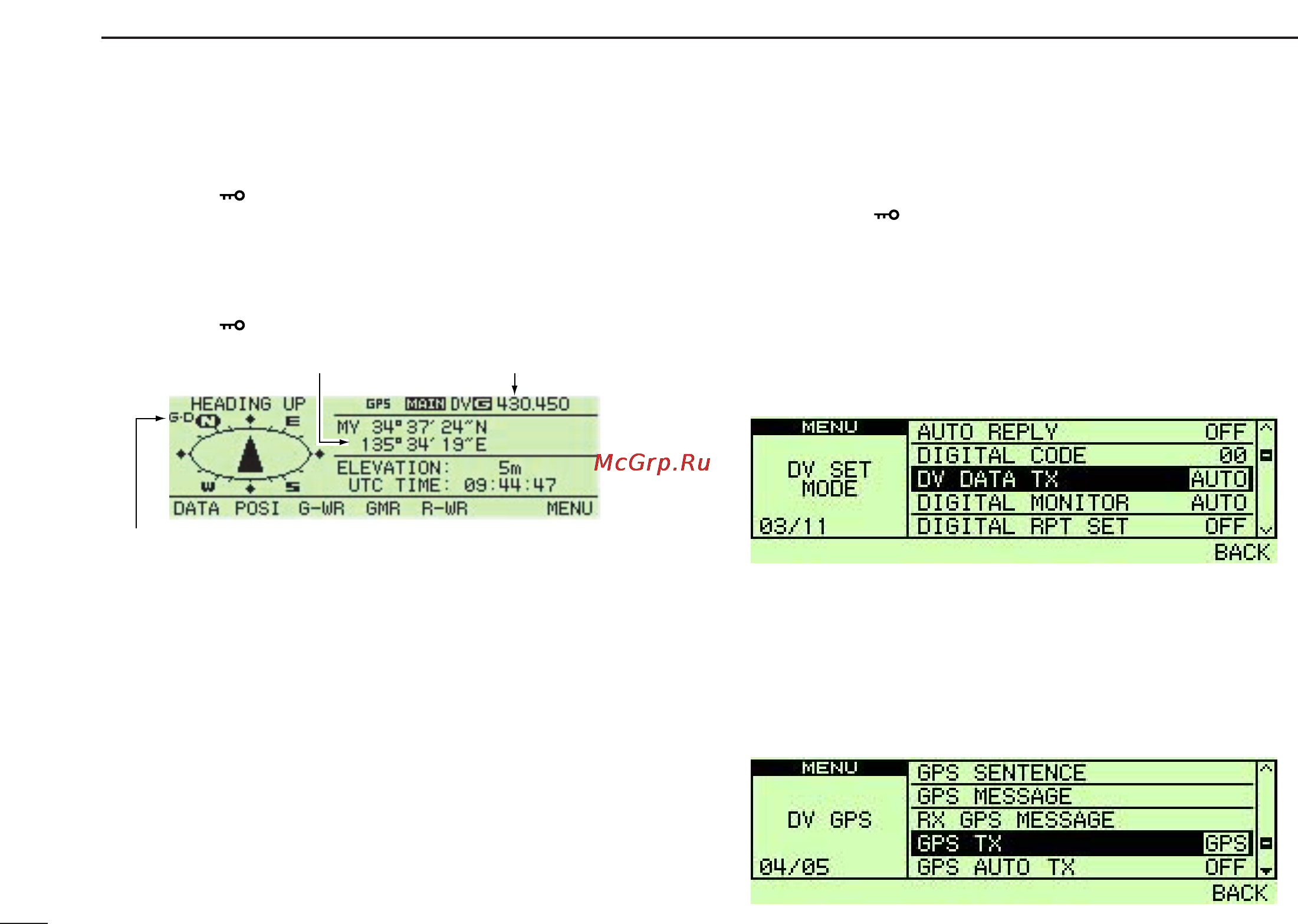

FrequencyPosition indication
“G-D” appears when GPS data communication is set to ON.
