118
15
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft
®
Windows
®
98SE/2000/Me/XP) using the optional CS-
2820
CLONING SOFTWARE
and the optional data
communication cable; OPC-1529R, cloning cable; OPC-
478/478U. Consult the CS-2820
CLONING SOFTWARE
HELP file
for details.
D Cloning error
NOTE: DO NOT push any key on the transceiver (to be
cloned) during cloning. This will cause a cloning error.

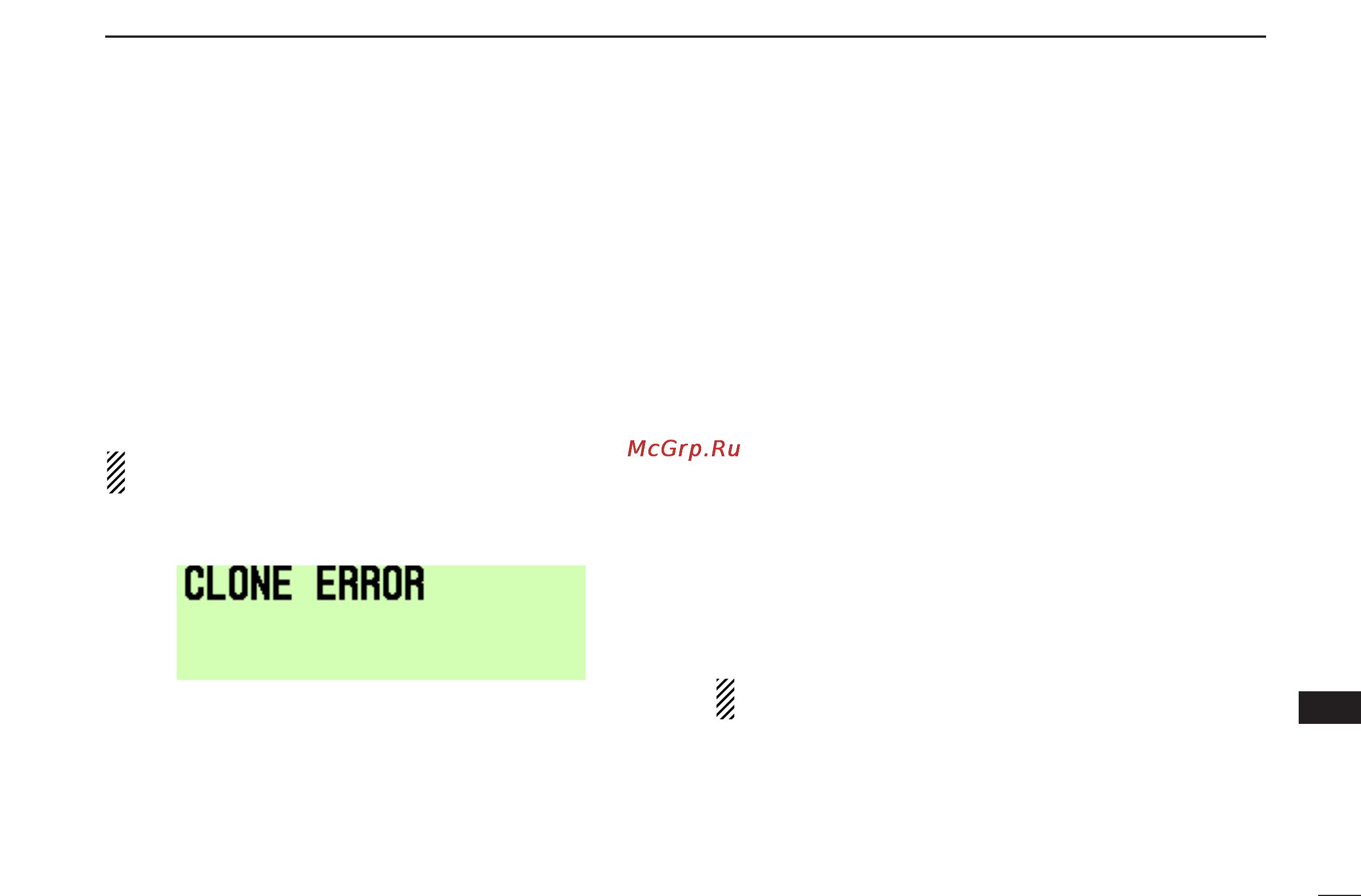

When the display appears as below, a cloning error has oc-
curred.
If this happens, turn the transceiver (to be cloned) power OFF
then ON again and cloning must be repeated.
■ Auto power OFF
The transceiver can be set to automatically turn OFF after a
specified period with a beep when no switch is pushed.
120 min., 90 min., 60 min., 30 min. and OFF can be speci-
fied. The specified period is retained even when the trans-
ceiver is turned OFF by the auto power-off function. To cancel
the function, select “OFF” in the auto power-off item in set
mode.
This can be selected with “AUTO POWER OFF” in set mode.
(p. 101)
■ Time-out timer
To prevent accidental prolonged transmission, etc., the trans-
ceiver has a time-out timer. This timer cuts a transmission
OFF after 3, 5, 15 or 30 min. of continuous transmission. This
timer can be cancelled (default).
Approx. 10 sec. before the time-out timer is activated, the
transceiver emits a beep tone as a warning.
This can be selected with “TIME-OUT TIMER” in set mode.
(p. 101)
