■ Message operation
DD
TX message programming
TX messages are available for up to 5 channels, and each
channel can be programmed with a message of up to 20
characters. Available characters are 0 to 9, A to Z
(capital let-
ters), a to z (lower case letters), some symbols and space.

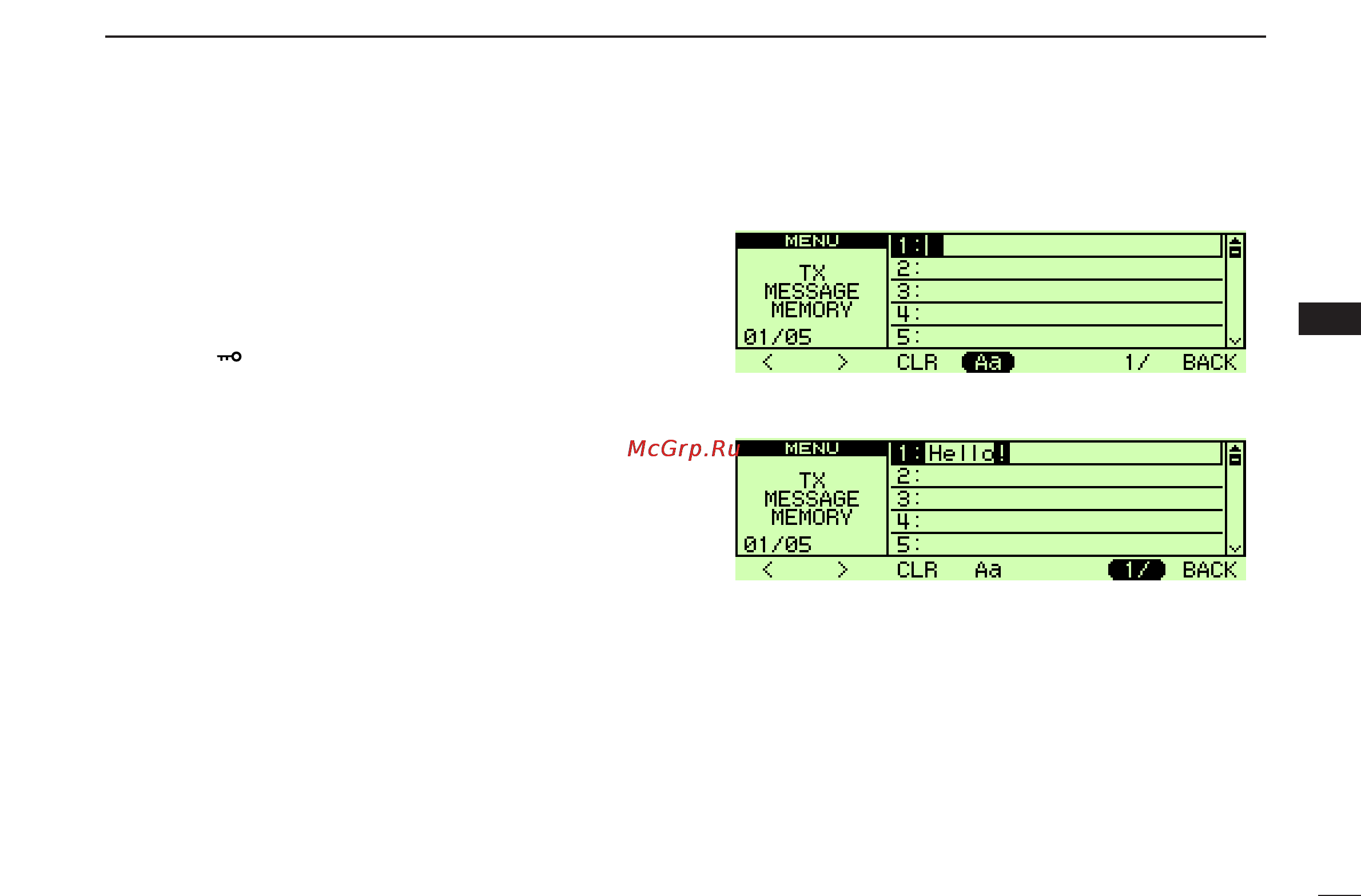

qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
eRotate [DIAL] to select “DV MESSAGE,” then push
[MAIN•BAND].
rRotate [DIAL] to select “TX MESSAGE MEMORY,” then
push [MAIN•BAND].
tRotate [DIAL] to select the desired message memory
channel, 01 to 05, then push [MAIN•BAND].
• Previously message is displayed if programmed.
yRotate [DIAL] to select the desired character.
•Push [Aa](TONE•DTMF) to turn the character group from alpha-
betical characters capital letters or lower case letters.
• Push [1/](M/CALL•MW) (Right band’s) to turn the character
group from numbers or symbols.
• Push [>](M/CALL•MW) or [<](V/MHz•SCAN) (Left band’s) to
move the cursor right or left, respectively.
• Push [CLR](DUP•MONI) to clear the selected character.
uRepeat the step y to enter the desired message.
• Up to 20-character messages can be set.
iPush [MAIN•BAND] to store the message.
ePush [BACK](V/MHz•SCAN)
(Right band’s) twice to exit
from DV message screen.
