23
3
BASIC OPERATION
The IC-2820H can simultaneously receive two signals on the
same band, such as 144 MHz band, using the para-watch
function.
qPush and hold either the left or right band’s [MAIN•BAND]
for 1 sec. to select the frequency band selecting condition.
wRotate the same band’s [DIAL] to select the desired fre-
quency band.
ePush the [MAIN•BAND] to return to frequency indication.
rSet the desired frequency.
tRepeat the steps q to r for the other band (left or right).
To activate the para-watch function from the HM-133, enter
the desired frequencies for each the left and right bands using
the direct frequency input capability via the keypad; or per-
form the following operation.
z Push [BAND] to select the desired band (left or
right) as the main band.
• Push [VFO/LOCK] to select VFO mode, if neces-
sary.
x Push [
ENT
C(T-OFF)] to activate the keypad for
digit input.
c Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [
ENT
C(T-
OFF)] to clear the input, then repeat input from the
1st digit.
v Push [VFO/LOCK] to change main band, then
repeat the steps z to c for the other band.
NOTE:
• Memory channels are common for the left and right band.

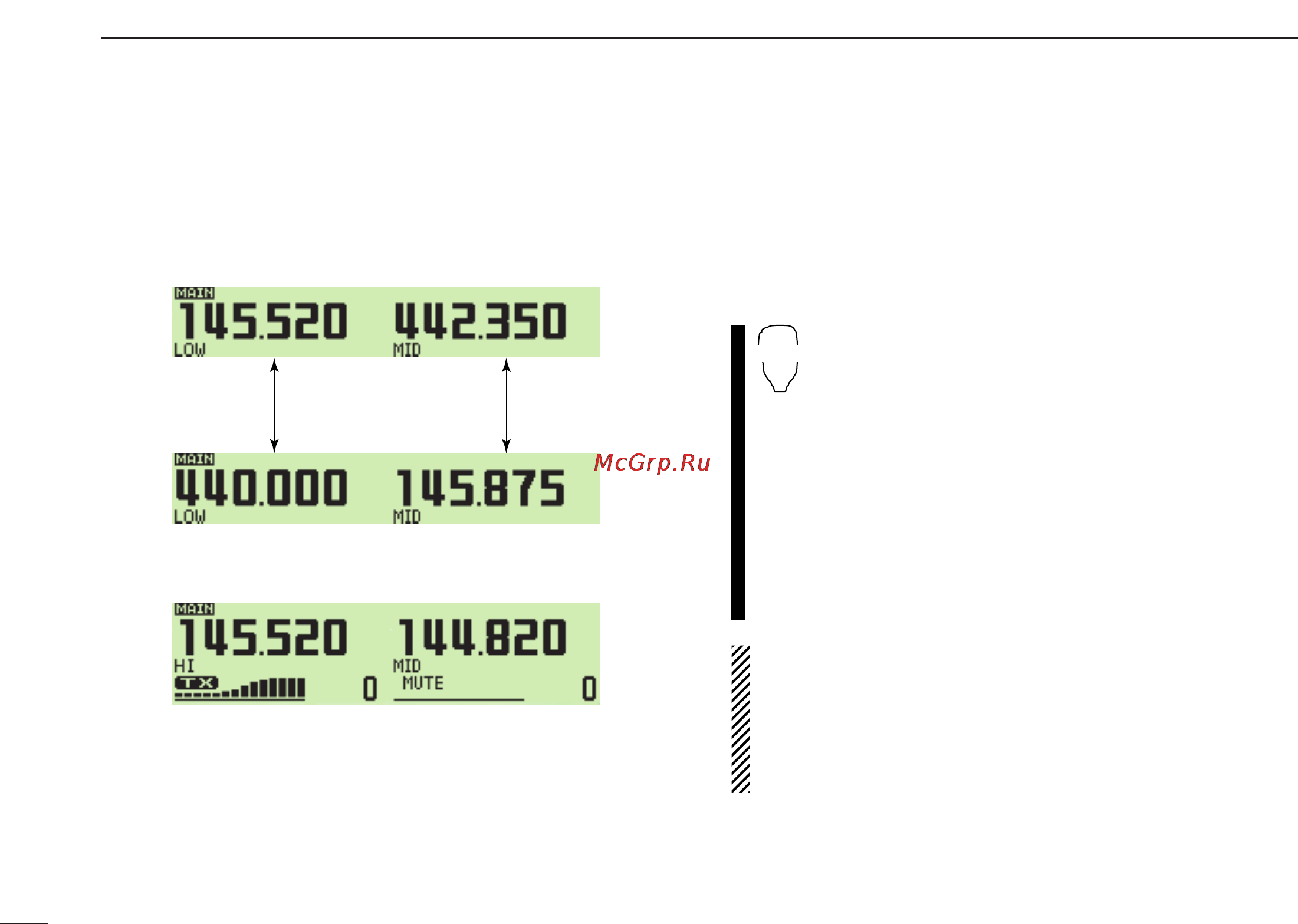

•Transmitting during the para-watch operation is possible.
However, the sub band’s reception is deactivated during
transmit as shown in the example at left.
• DV mode receiving is available only one band.
ENT
C
[Example]
Can be switched
between VHF and
UHF
■ V/V, U/U simultaneous receive (Para-watch)
