45
5
DV MODE OPERATION (Optional UT-123 is required)
DD
Repeater operation into another zone
qSet the desired repeater’s frequency, offset and shift direc-
tion in the main band.
(pgs. 30, 31)
• Select DV mode in advance. (p. 21)
wSet your own call sign. (p. 39)
•See p. 37 for your own call sign programming.
eSet the desired station call sign. (p. 40)
•When making a CQ call
Set the desired repeater’s
(in a different zone) call sign into
“YOUR.” The symbol “/” which stands for “CQCQCQ” is
added at the 1st digit automatically.
•See p. 38 for station call sign programming.
rSet the repeater’s call sign as follows;
zPush [F•]twice to display the function guide 2.
xPush [CS](V/MHz•SCAN)
(Left band’s) to display the

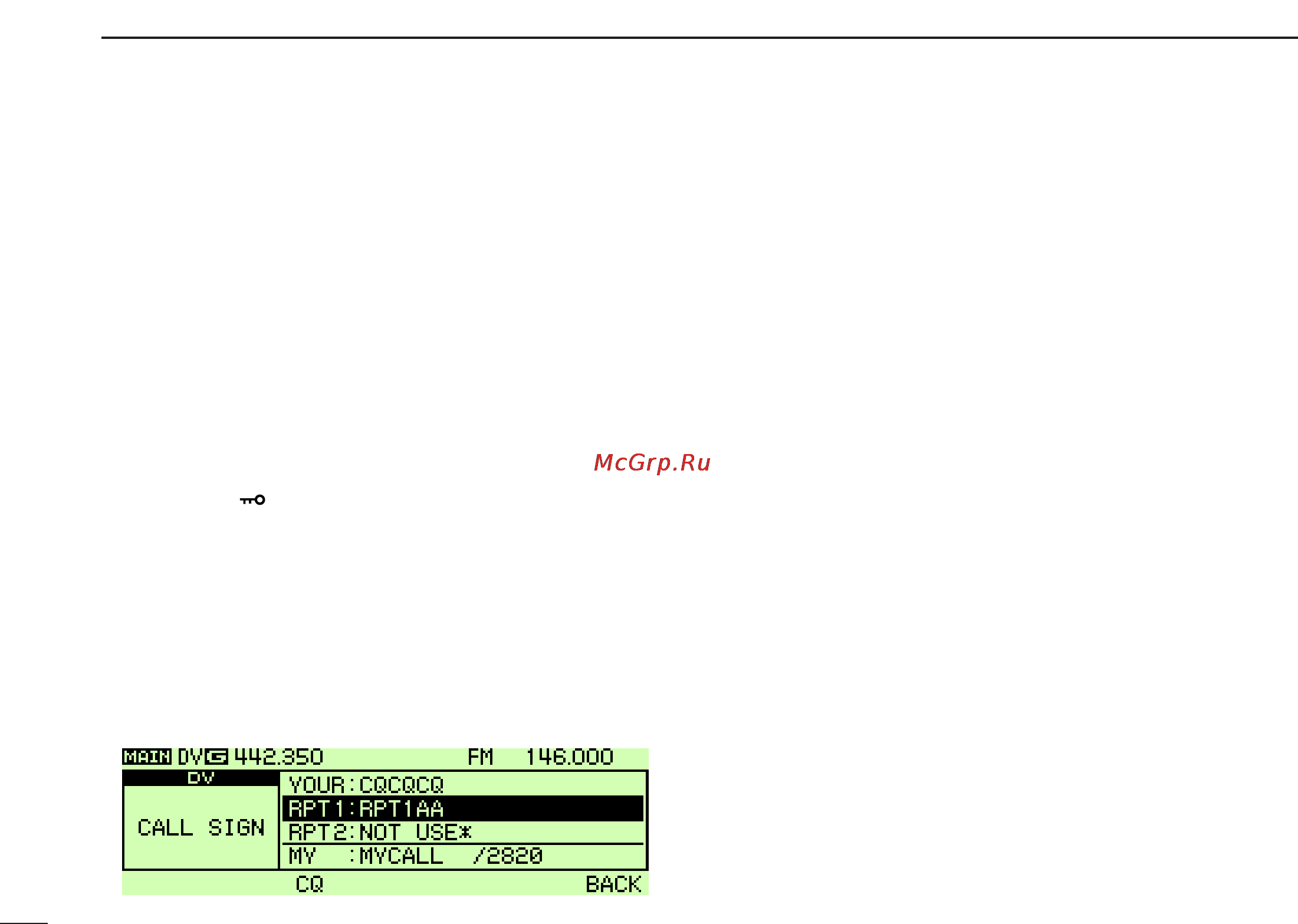

“CALL SIGN” screen.
cRotate [DIAL] to select “RPT1,” then push
[MAIN•BAND].
•RPT1 CALL SIGN screen is displayed.
vRotate [DIAL] to select the nearest repeater’s call sign
then push [BACK](V/MHz)
(Right band’s).
• If the nearest repeater is a gateway repeater, program the re-
peater’s call sign with “G” in the 8th digit.
bRotate [DIAL] to select “RPT2” then push
[MAIN•BAND].
• RPT2 CALL SIGN screen is displayed.
nRotate [DIAL] to select the gateway repeater’s (in the
same zone) call sign.
• The call sign should have “G” in the 8th digit.
• When gateway repeater call sign is set in “RPT1,” select “NOT
USE✱” for “RPT2” setting.
mPush [BACK](V/MHz•SCAN) (Right band’s) to exit “CALL
SIGN” screen.
tPush [PTT] to transmit; release to receive.
