Icom IC-2820H [155/164] Fuse replacement
![Icom IC-2820H [155/164] Fuse replacement](/views2/1074119/page155/bg9b.png)
134
17
MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
PROBLEM POSSIBLE CAUSE SOLUTION REF.
Some memory channels
cannot be selected via the
tuning dial.
Scan does not operate.
Transmission is automati-
cally cut off.
Transmission continues
even when the PTT is re-
leased.
During tone squelch opera-
tion, the received audio
breaks off at the other station.
The function display shows
erroneous information.
• The memory channel number has not yet been
programmed.
• The squelch is open.
• Only 1 memory channel is programmed or other
channels are set as skip channels.
• Priority watch is activated.
•Time-out timer is activated.
• One-touch PTT function is activated.
•Transmitter’s microphone gain is too high.
• The CPU is malfunctioning.
• Select the channel via the microphone keypad to
check whether the channel has been programmed
or not.
• Set the squelch to the threshold point.
• Program other memory channels or cancel the
memory skip function in the desired channels.
• Cancel the watch.
• Set the timer to OFF.
•Turn the function OFF.
• Select low microphone sensitivity in set mode.
•Turn the ALC function ON in set mode.
• Reset the CPU.
—
p. 22
pgs. 62,
63, 79
p. 81
p. 101
p. 26
p. 102
p. 102
p. 116

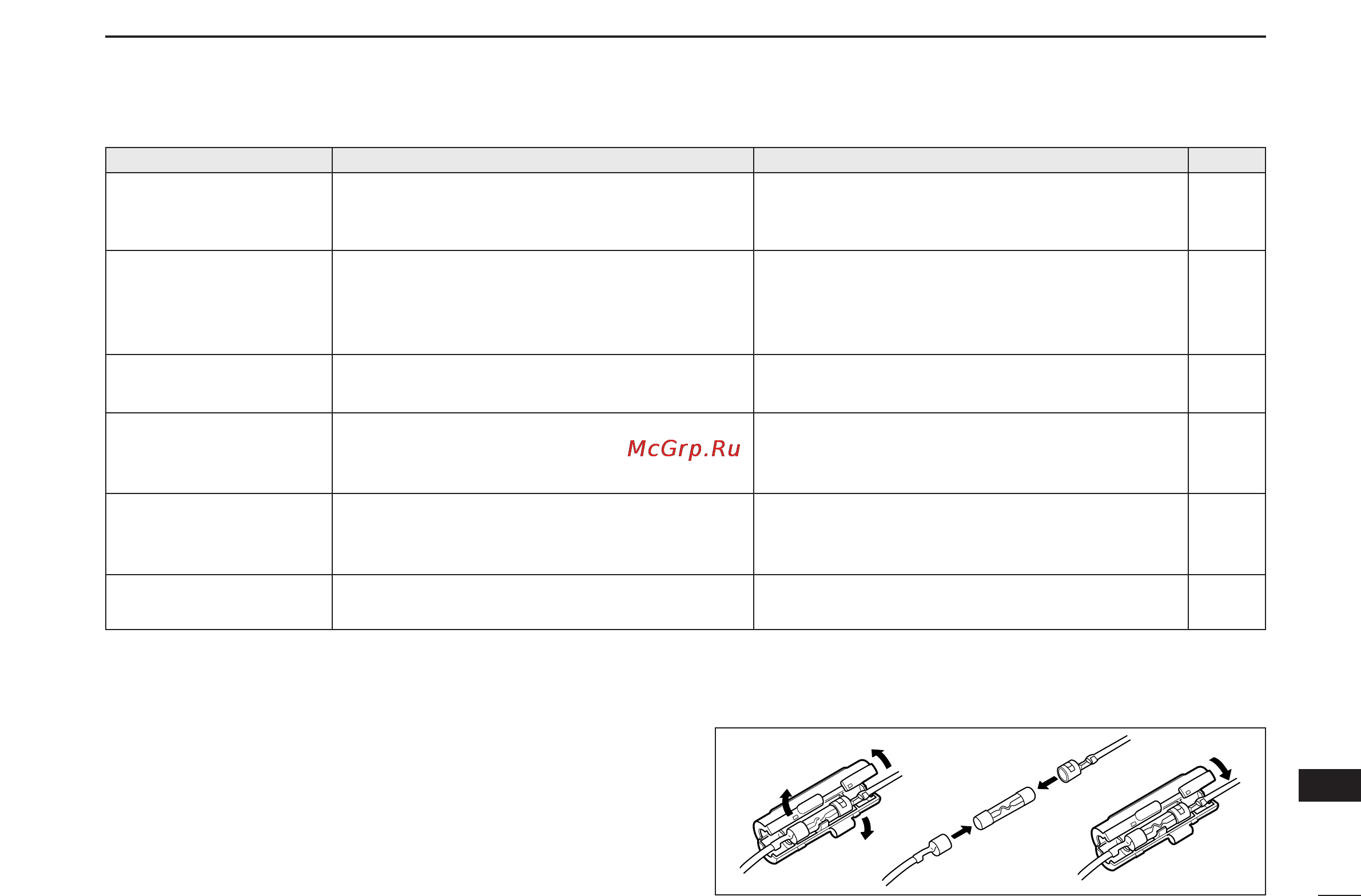

■ Fuse replacement
If the fuse blows or the transceiver stops functioning, find the
source of the problem if possible, and replace the blown fuse
with a new, properly rated one (FGB 20 A) as shown at right.
20 A
fuse
