DD
Station call sign programming
Station call signs must be programmed for the specified sta-
tion call as well as repeater operation in all digital voice, low-
speed data and GPS communications.
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to enter MENU
screen.

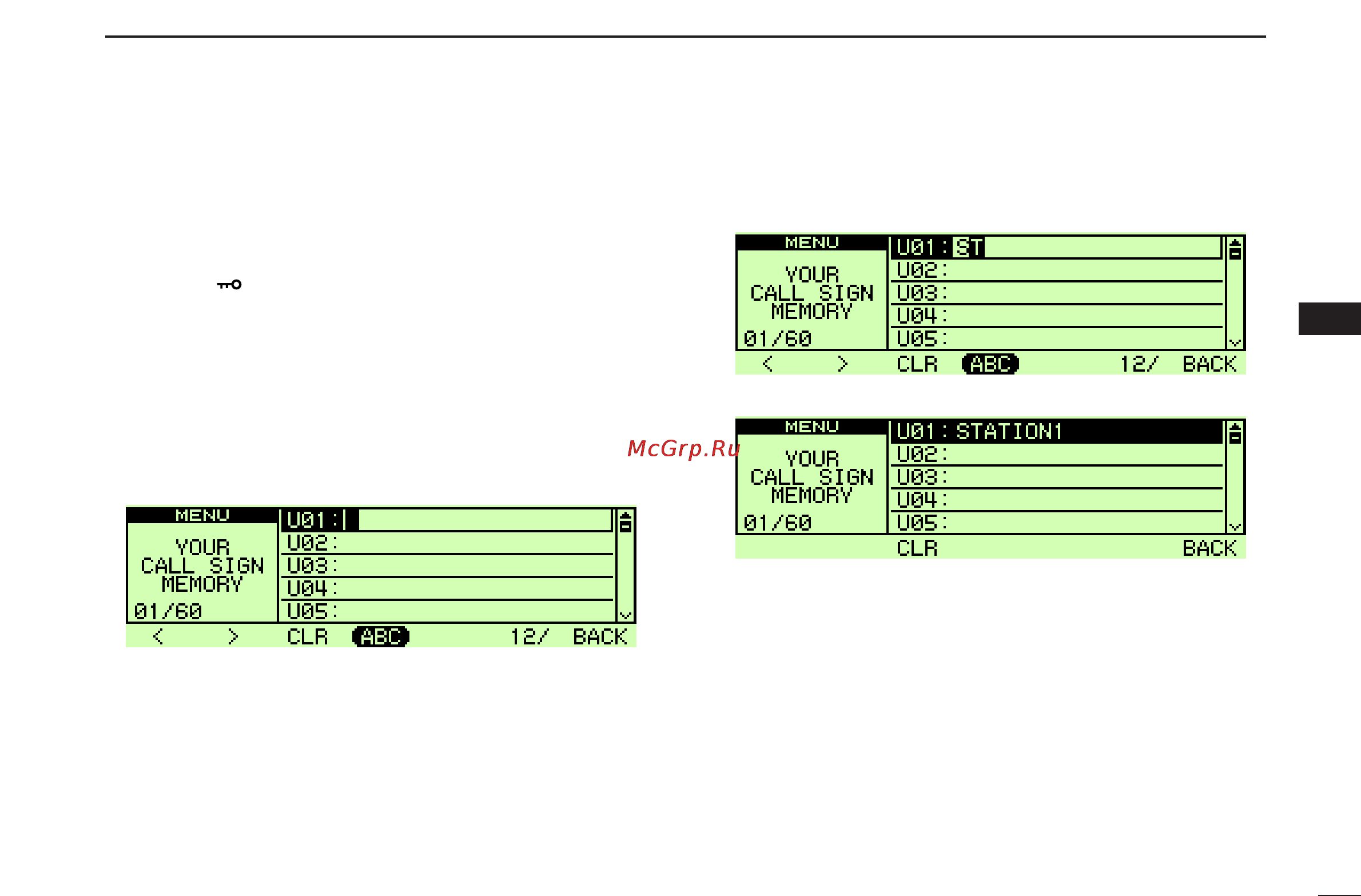

eRotate [DIAL] to select “CALL SIGN MEMORY” then push
[MAIN•BAND].
rRotate [DIAL] to select “YOUR CALL SIGN MEMORY”
then push [MAIN•BAND].
tRotate [DIAL] to select the desired call sign channel
(U01 to
U60), then push [MAIN•BAND].
yRotate [DIAL] to select the desired character, then push
[>](M/CALL•MW)
(Left band’s) to move the cursor right.
• Push [<](V/MHz•SCAN) (Left band’s) to move the cursor left.
• Up to 8-character call signs can be entered.
• Push [ABC](TONE•DTMF) to select the character group from
capital letter characters.
• Push [12/](M/CALL•MW) (Right band’s) to select the character
group from numbers or symbol.
• Push [CLR](DUP•MONI) to clear the selected character.
uRepeat step y until the desired station call sign is pro-
grammed.
iPush [MAIN•BAND] to store the programmed call sign.
oPush [BACK](V/MHz•SCAN)
(Right band’s) three times to
return to frequency indication.
