50
5
DV MODE OPERATION (Optional UT-123 is required)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
DD
Copying the call record contents into call
sign memory
This is a way to copy the call record contents (“CALLER,”
“RXRPT1” and “RXRPT2”) into call sign memory (“YOUR” and
“RPT”) at the same time or individually.
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
eRotate [DIAL] to select “RX CALL SIGN,” then push
[MAIN•BAND].
rRotate [DIAL] to select the desired record channel, then
push [MAIN•BAND].

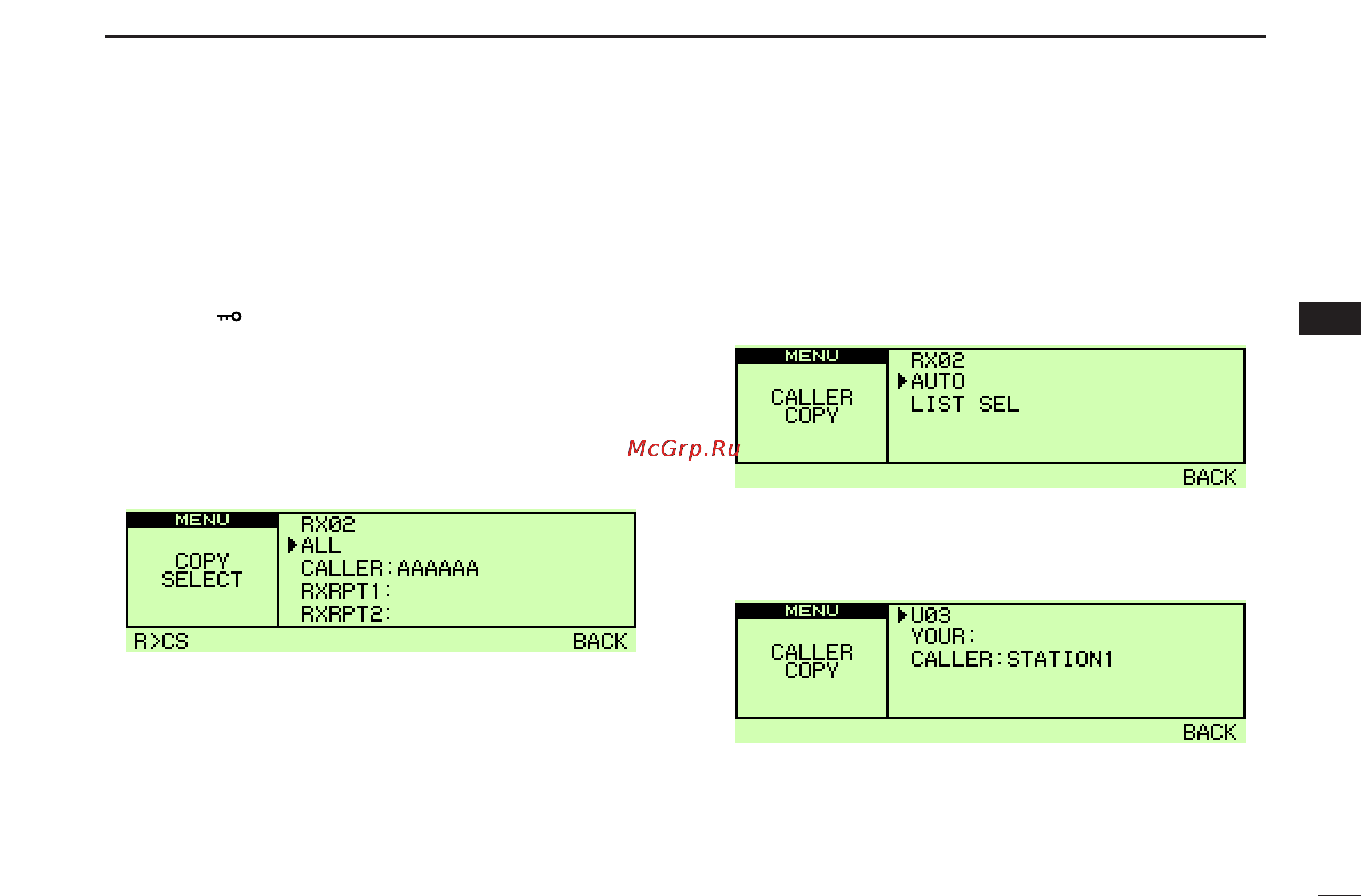

• COPY SELECT screen is displayed.
tRotate [DIAL] to select the desired call sign to be copied
from “ALL,” “CALLER,” “RXRPT1” and “RXRPT2.”
• “ALL” selection won’t appear when either station or repeater call
sign memory has no blank channel.
•When “ALL” is selected
➥ Push [MAIN•BAND] to copy the selected record’s con-
tents into the appropriate call sign memory’s blank chan-
nel automatically.
• Returns to RX CALL SIGN screen automatically.
• When “CALLER,” “RXRPT1” or “RXRPT2” is
selected
zPush [MAIN•BAND] then rotate [DIAL] to select the de-
sired condition of call sign memory channel selection to
be copied to from “AUTO” and “LIST SEL.”
• “AUTO” selection won’t appear when the appropriate call sign
memory has no blank channel.
• Go to step y when “AUTO” is selected.
xPush [MAIN•BAND] then select the desired call sign
memory channel to copy to with [DIAL].
• Programmed call sign is displayed if the selected memory
channel has already been programmed.
cPush [MAIN•BAND] to copy the call sign into the se-
lected call sign memory.
• Returns to RX CALL SIGN screen automatically.
yPush [BACK](V/MHz•SCAN) (Right band’s)
three times to
return to frequency indication.
