DV MODE OPERATION (Optional UT-123 is required)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

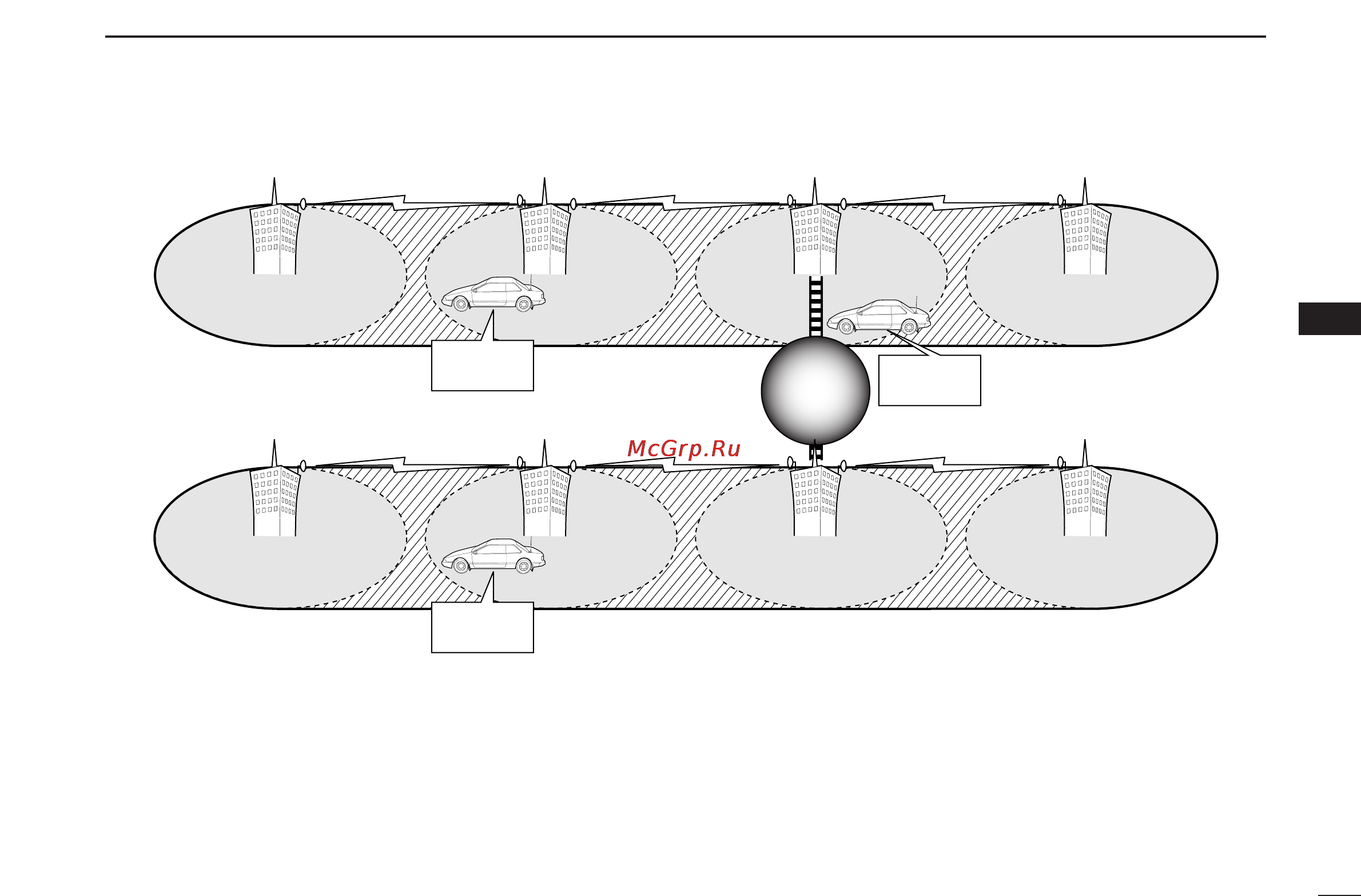

Area 1
Zone A
• Setting examle 2
Repeater 1
: A11111
Area 2 Repeater 2
: A22222
Area 3
(Gateway)
Repeater 3
: A33333
Area 4 Repeater 4
: A44444
Zone B
Area 6 Repeater 6
: B66666
Area 7
(Gateway)
Repeater 7
: B77777
Area 8 Repeater 8
: B88888
Internet
network
Internet
network
Area 5 Repeater 5
: B55555
Station C
: B6666C
Station A
: A2222A
Station B
: A3333B
❑ The setting when Station A is call-
ing Station C
UR : B6666C
R1 : A22222
R2 : A33333 G
MY : A2222A
❑ The setting when Station A is mak-
ing a CQ call in area 8
UR : /B88888
R1 : A22222
R2 : A33333 G
MY : A2222A
❑ The setting when Station B is call-
ing Station C
UR : B6666C
R1 : A33333 G
R2 : NOT USE✱
MY : A3333B
