Icom IC-2820H [99/164] Scan resume condition
![Icom IC-2820H [99/164] Scan resume condition](/views2/1074119/page99/bg63.png)
78
8
SCAN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Scan resume condition
The scan resume condition can be selected as timer or pause
scan. The selected resume condition is also used for priority
watch.
(p. 81)
qPush [MAIN•BAND] to select the desired band (left or right)
as the main band.
wPush [F•]to display the function guide.
ePush [MENU](V/MHz•SCAN]
(Right band’s) to enter MENU
screen.
rRotate the [DIAL] to select
“SCAN,” then push
[MAIN•BAND].

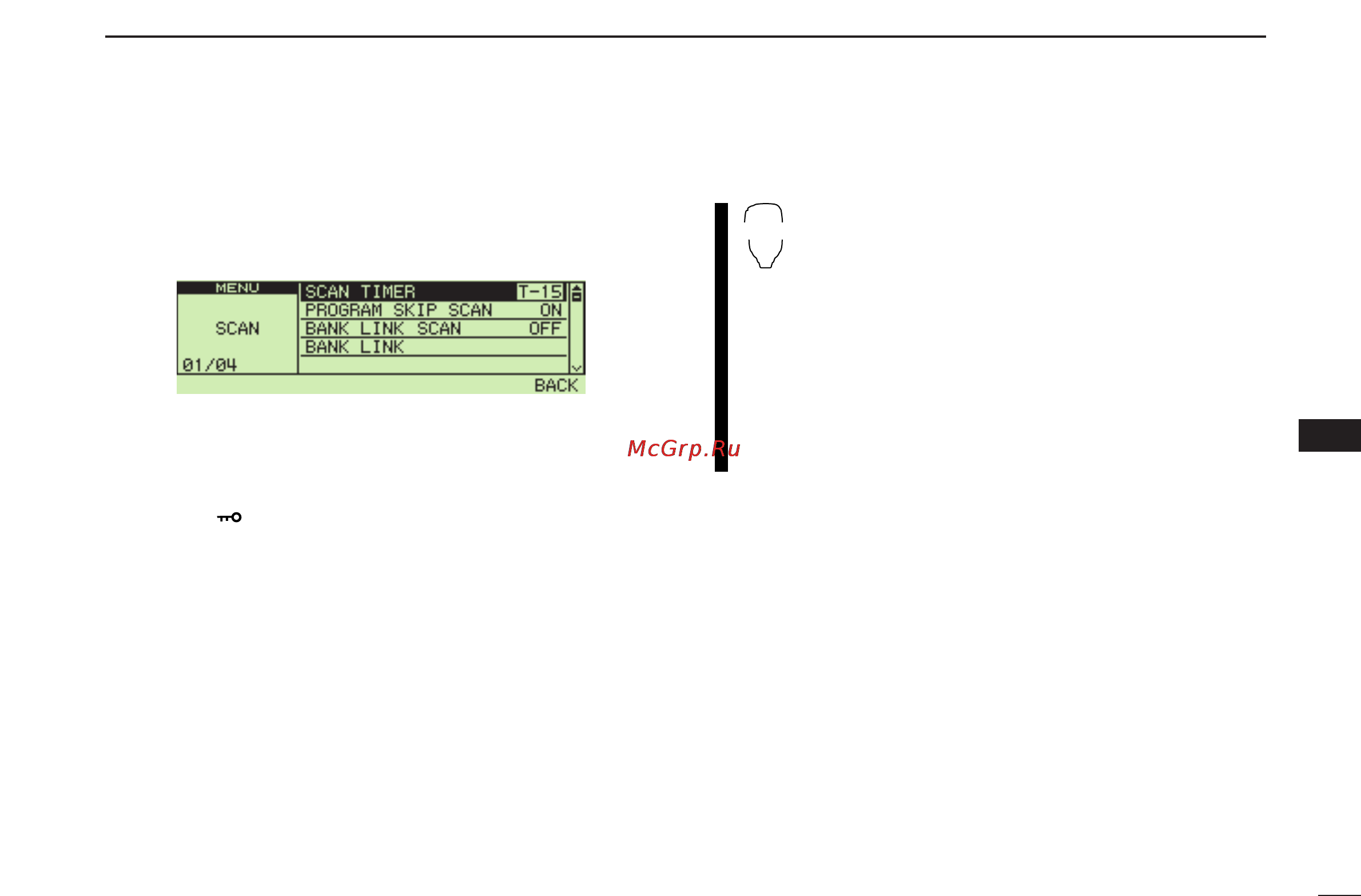

tRotate the main band’s [DIAL] to select
“SCAN TIMER,”
then push [MAIN•BAND].
yRotate [DIAL] to select the desired timer:
•“T-5” : Scan pauses 5 sec. while receiving a signal.
•“T-10” : Scan pauses 10 sec. while receiving a signal.
•“T-15” : Scan pauses 15 sec. while receiving a signal.
• “P-2” : Scan pauses until the signal disappears and then re-
sumes 2 sec. later.
uPush [MAIN•BAND] to set.
iPush [BACK](V/MHz•SCAN)
(Right band’s)
twice to return
to frequency indication.
z Push [BAND] to select the desired band (left or
right) as the main band.
x Push [
SET
B(D-OFF)] to enter MENU screen.
c Push [Y] or [Z] to select “SCAN” then push
[
SET
B(D-OFF)] to enter scan set mode.
v Push [Y] or [Z] to select “SCAN TIMER” then
push [
SET
B(D-OFF)].
b Push [Y] or [Z] to select the scan resume condi-
tion, then push [
SET
B(D-OFF)].
• See item y at left for scan resume condition details.
n Push [
CLR
A(MW)] to exit set mode.
SET
B
The display shows that the scan will resume
15 sec. after it stops.
