Icom IC-2820H [115/164] Pager operation
![Icom IC-2820H [115/164] Pager operation](/views2/1074119/page115/bg73.png)
94
12
PAGER/CODE SQUELCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Pager operation
D Calling a specific station
q Program the pager code channel in advance (p. 93).
w Set the operating frequency.
•
Set the volume and squelch to the desired level as in normal op-
eration.
e Push [F•]to display the function guide.
r Push [MENU](V/MHz•SCAN)
(Right band’s) to enter the
MENU screen.
t Rotate [DIAL] to select “DUP/TONE…” then push
[MAIN•BAND] to enter DUP/TONE set mode.
y Rotate [DIAL] to select the “PGR/C-SQL” then push
[MAIN•BAND].
u Rotate [DIAL] to set “PGR” then push [MAIN•BAND].
i Select the desired 3-digit transmit code channel:
➥ Rotate [DIAL] to select “PGR MEMORY” then push
[MAIN•BAND].
➥ Rotate [DIAL] to select the desired pager code chan-
nel.
➥ Push [BACK](V/MHz•SCAN)
(Right band’s) three times
to return to frequency indication.
• “PGR” appears in normal frequency indication.
o Push [PTT] to transmit the pager code.
!0 Wait for an answer back.
• When the transceiver receives an answer back code, the func-
tion display shows the other member’s ID or group code.
!1 After confirming a connection, perform the previous steps
e to u and select the code squelch operation “C-SQL,”
or non-selective calling system, “OFF” in step u.
• Push [BACK](V/MHz•SCAN) (Right band‘s) twice to return to
frequency indication.
!2 Communicate with the other party as normal: push [PTT]
to transmit; release to receive.
D Waiting for a call from a specific station
q Set the operating frequency.
w Turn pager function ON.
• Perform the steps e to u in “D Calling a specific station” as at
left.
• “PGR” indication appear.
e Wait for a call.
• When receiving a call, the caller’s ID or group code appears as
shown at next page.
r Push [PTT] to send an answer-back call and display the
operating frequency.
t After confirming a connection, select the code squelch
operation “C-SQL,” or non-selective calling system “OFF.”

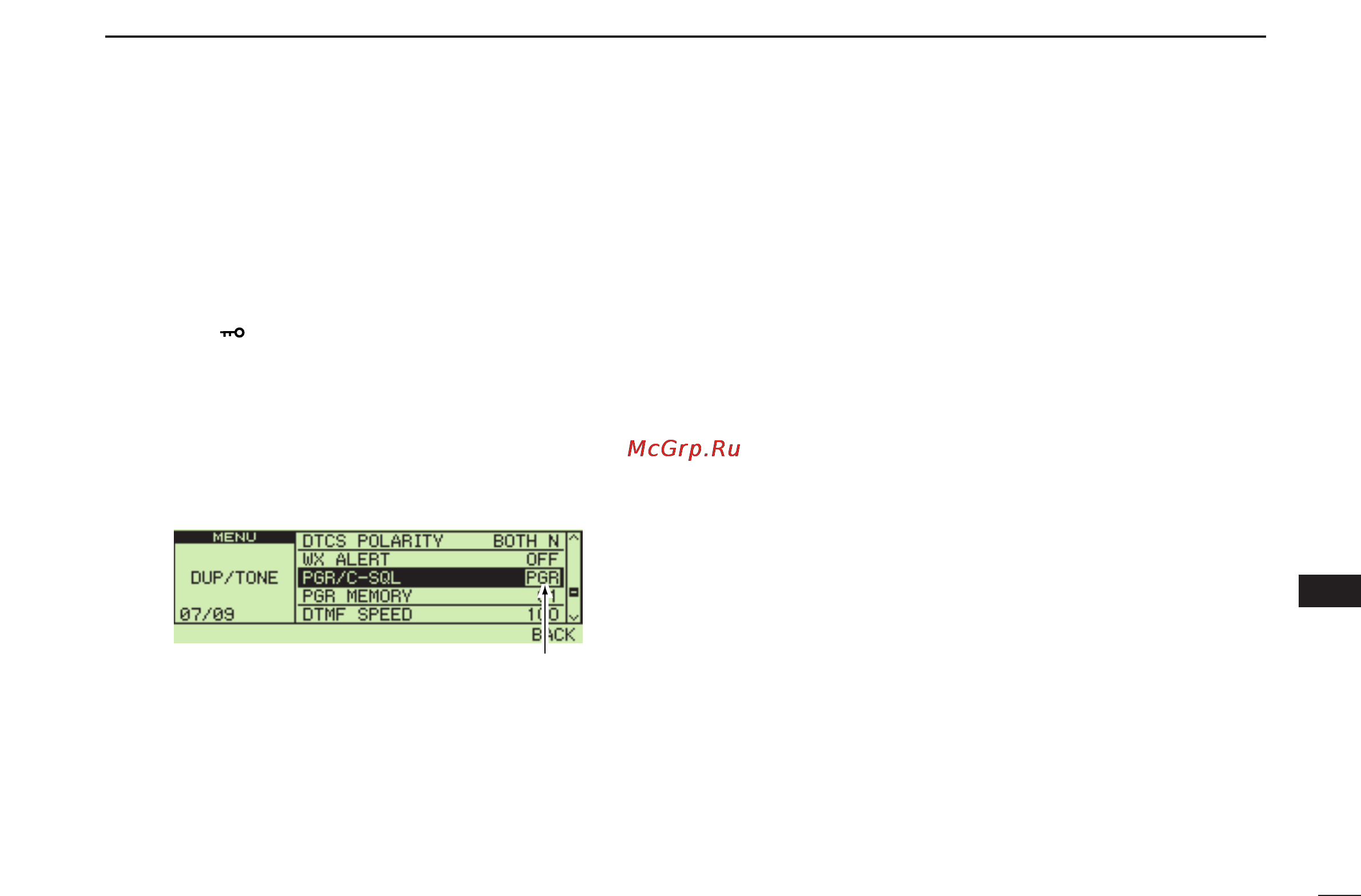

Select “PGR”
