62
6
MEMORY MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
VFO settings, including MENU group contents such as sub-
audible tone frequency and offset can be programmed into a
memory channel.
qSet the desired frequency in the desired band
(left or right).
➥ Push the desired band’s [V/MHz•SCAN] to select VFO
mode.
➥ Set the frequency using the same band’s [DIAL].
➥ Set other data
(e.g. tone frequency, duplex information, etc.)
if required.
wPush and hold the same band’s [M/CALL•MW] for 1 sec.
•2 beeps sound
•“X” indicator and the memory channel number blink.
eRotate the [DIAL] to select the memory channel to be pro-
grammed.
• Memory channels not yet programmed are blank.
rPush and hold [S.MW](M/CALL•MW) (Left band’s) for 1 sec.
to program.
•3 beeps sound
• Memory channel number automatically increases when contin-
uing to push [M/CALL•MW] after programming.
✔FOR YOUR CONVENIENCE
Memory programming can be performed in various ways e.g.
memory channel to the same (or different) memory channel,
memory channel to the call channel, etc.
■ Programming a memory channel

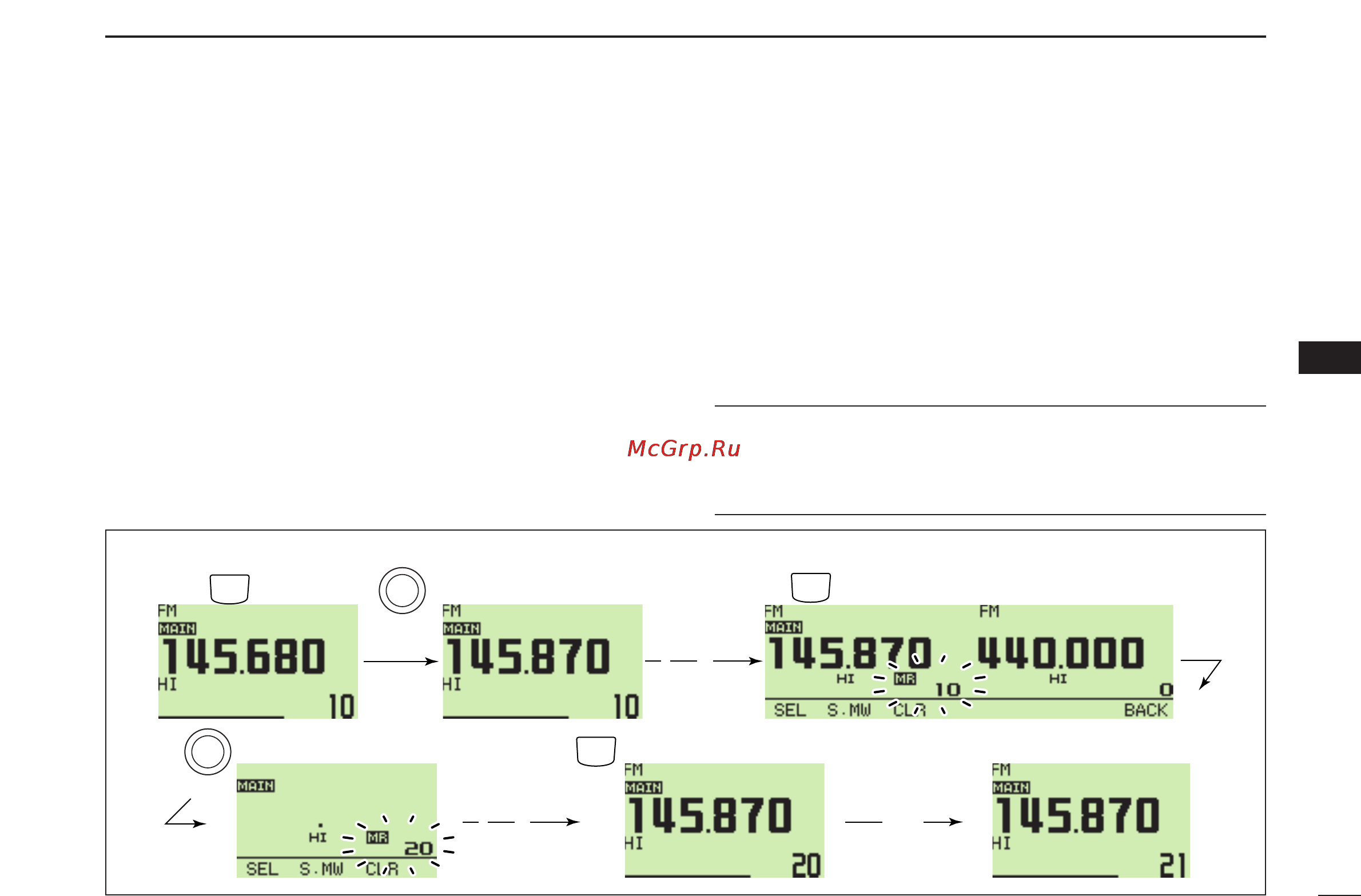

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the controller.
Push Rotate for setting frequency, etc. Push and hold for 1 sec.
Push and hold for 1 sec. and continue to push
➠
Beep
“
V/MHz
SCAN
M/CALL
MW
M/CALL
MW
S.MW
Beep
Beep
Beep
“
“
“
“
“
Beep
Beep
“
“
“
“
“
M
A
I
N
B
A
N
D
M
A
I
N
B
A
N
D
Rotate
