![Icom IC-2820H [39/164] Tuning step selection](/img/pdf.png)
Icom IC-2820H [39/164] Tuning step selection
![Icom IC-2820H [39/164] Tuning step selection](/views2/1074119/page39/bg27.png)
18
2
SETTING A FREQUENCY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

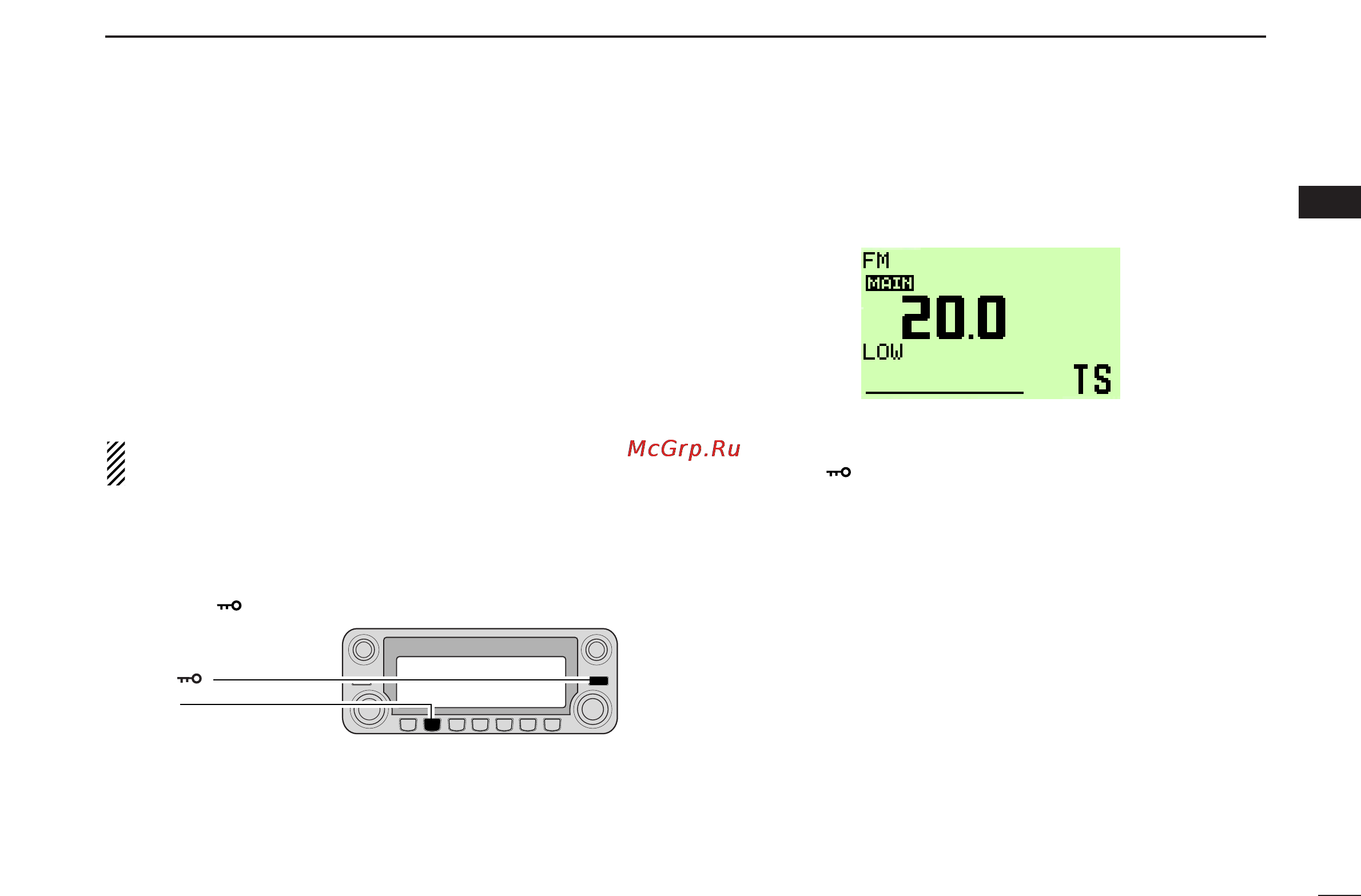

■ Tuning step selection
Tuning steps are the minimum frequency change increments
when you rotate [DIAL] or push [Y]/[Z] on the microphone.
Independent tuning steps for the left and right bands, as well
as each frequency band can be set for individual tuning con-
venience. The following tuning steps are available.
•5kHz* • 6.25 kHz* • 10 kHz • 12.5 kHz
•15kHz* • 20 kHz • 25 kHz • 30 kHz
•50kHz
*Not selectable in 900 MHz band.
NOTE: For convenience, select a tuning step that matches
the frequency intervals of repeaters in your area.
q Push the desired band’s [MAIN•BAND] to select the main
band.
• Push the same band’s [V/MHz•SCAN] to select VFO mode, if
necessary.
wPush [F•]to display the function guide.
ePush [TS](M/CALL•MW) (Left band’s) to enter tuning step
set mode.
rRotate the same band’s [DIAL] to select the desired tun-
ing step.
tPush [F•]to exit tuning step set mode.
[TS]
[F• ]
