128
16
GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

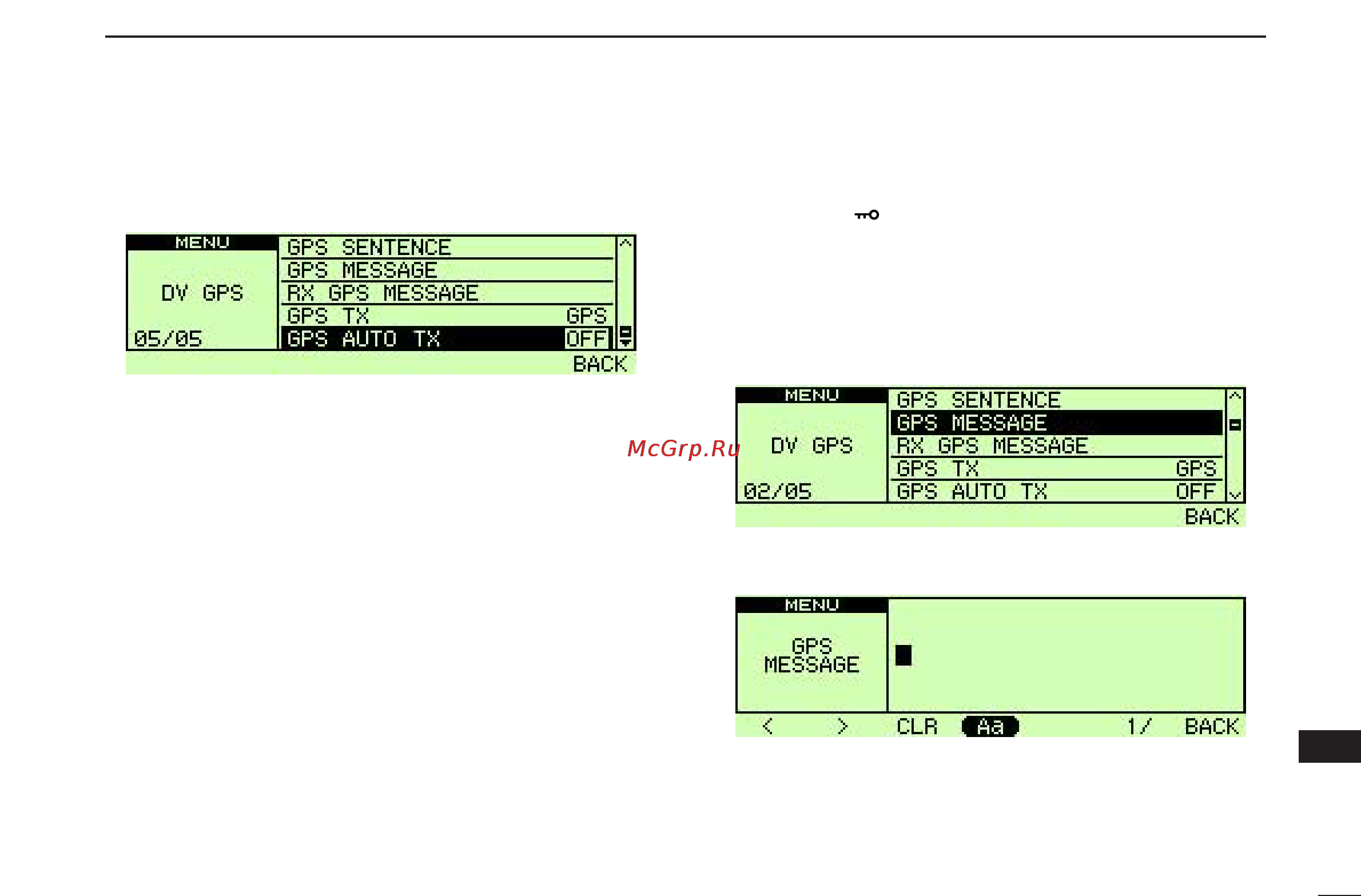

o Rotate [DIAL] to select “GPS AUTO TX,” then push
[MAIN•BAND] to enter GPS auto transmission interval.
!0 Rotate [DIAL] to select the desired auto transmission
interval.
• 5SEC, 10SEC, 30SEC, 1MIN, 3MIN, 5MIN, 10MIN and 30MIN
are selectable.
!1 Push [BACK](V/MHz•SCAN) (Right band’s) three times to
return to frequency indication.
DD
GPS message programming
q Enter MENU screen via function guide.
➥ Push [F•] to display function guide.
➥ Push [MENU](V/MHz•SCAN)
(Right band’s) to enter
MENU screen.
w Rotate [DIAL] to select “DV GPS,” then push
[MAIN•BAND] to enter DV GPS set mode.
e Rotate [DIAL] to select “GPS MESSAGE,” then push
[MAIN•BAND].
r Push [MAIN•BAND] to enter message programming
mode.
•The cursor appears on the first character.
