DV MODE OPERATION (Optional UT-123 is required)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ DV automatic detect
The “DV” mode indicator blinks when a non-DV signal is re-
ceived during DV mode operation.
The IC-2820H DV automatic detection monitors in FM mode
when other than DV mode signal is received.
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
MENU screen.
eRotate [DIAL] to select “DV SET MODE” then push
[MAIN•BAND].
r

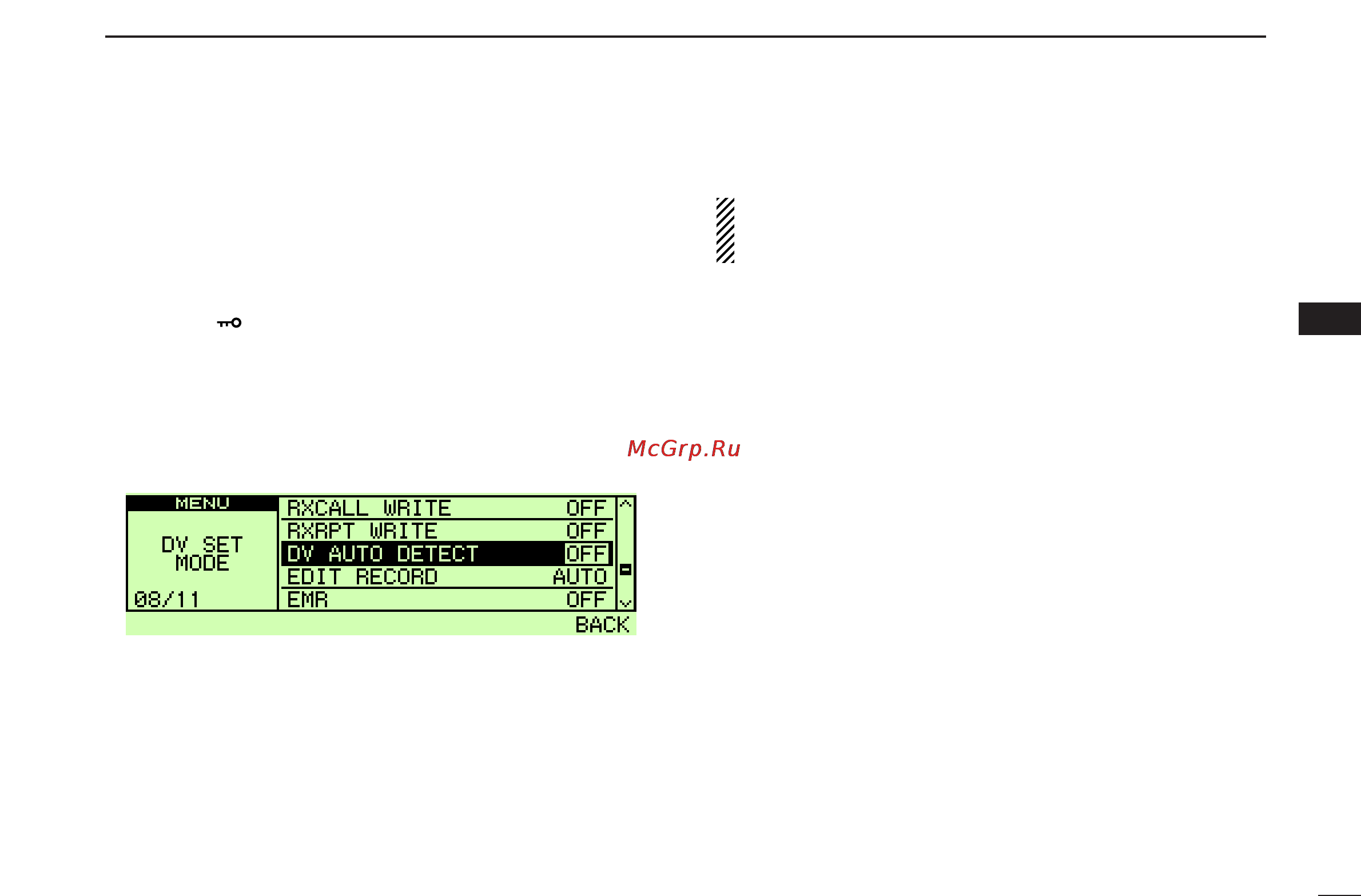

Rotate [DIAL] to select “DV AUTO DETECT” then push
[MAIN•BAND].
tRotate [DIAL] to turn the DV automatic detect function ON
and OFF, then push [MAIN•BAND].
OFF : “DV” mode indicator blinks, however the trans-
ceiver receives in DV mode even if non-DV mode
signals are received.
(default)
ON : “DV” mode indicator blinks and the transceiver
monitors the signal in FM mode.
yPush [BACK](V/MHz•SCAN)
(Right band’s) twice to exit
from DV set mode.
NOTE: The received FM audio may be distorted when re-
ceiving an FM signal with the DV automatic detect function
active.
