MEMORY MODE OPERATION
■ Memory bank setting
qPush the desired band’s [M/CALL•MW] several times to
select memory mode, then rotate the same band’s [DIAL]
to select the desired memory channel.
wPush and hold the same band’s [M/CALL•MW] for 1 sec.
•“X” and memory number indication blinks.

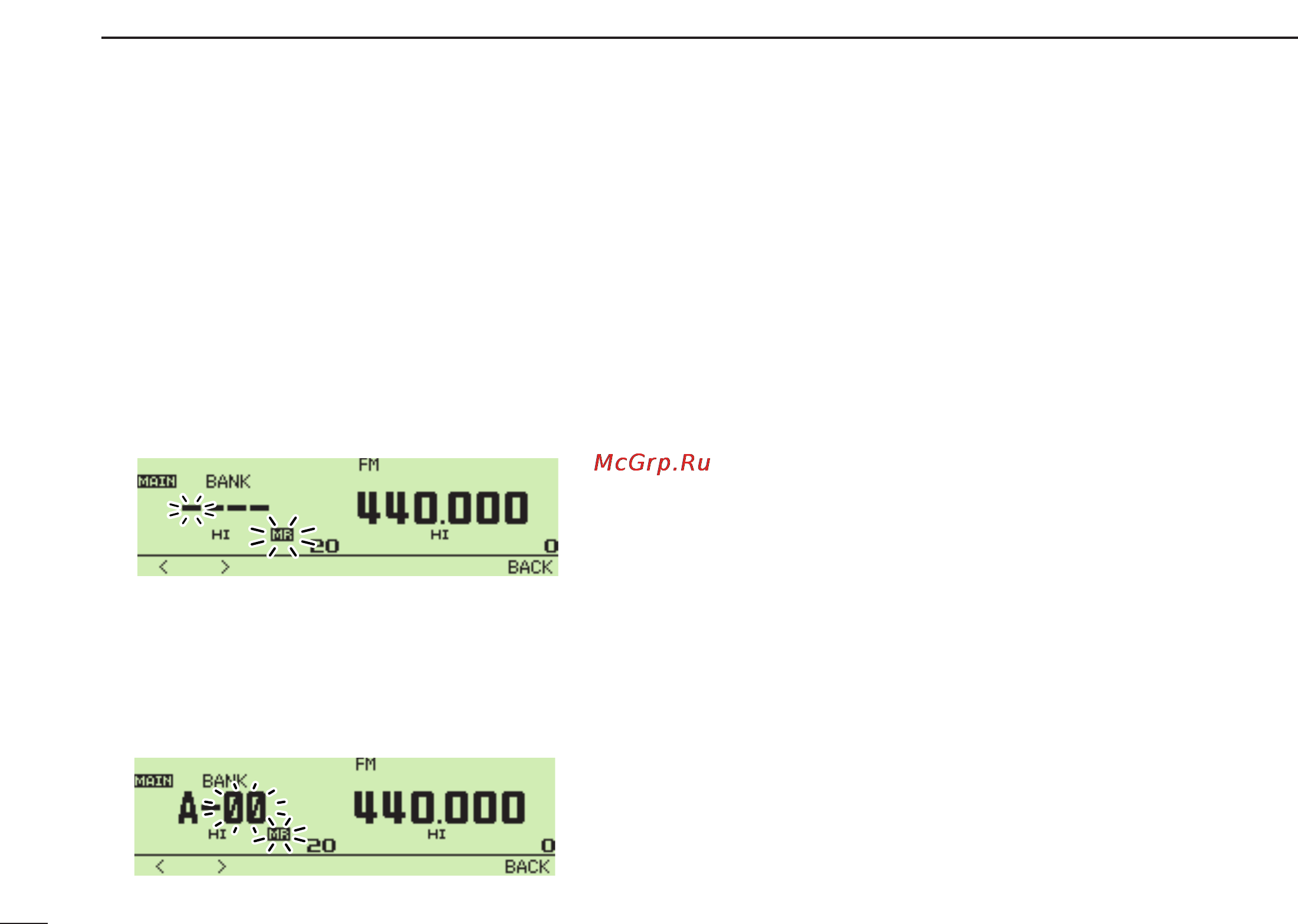

ePush [SEL](V/MHz•SCAN) (Left band’s) once to select
“BANK” setting stand-by condition.
•“X” indicator blinks.
rPush [EDIT](M/CALL•MW) (Right band’s) to edit.
•“X” and 1st digit blink.
tRotate the same band’s [DIAL] to select the desired bank
group.
•Ato Z bank groups available.
yPush [>](M/CALL•MW) (Left band’s) then rotate [DIAL] to
select the desired bank channel.
•“X” and last 2 digits blink.
uPush [BACK](V/MHz•SCAN) (Right band’s) to set the bank
initial and channel number.
•“X” indicator blinks.
iPush and hold [S.MW](M/CALL•MW) (Left band’s) for 1 sec.
to overwrite the memory channel to store the memory bank
settings.
oRepeat steps q to i to set another memory channel into
the same or another bank.
