DV MODE OPERATION (Optional UT-123 is required)
■ Automatic reply function
The automatic reply function replies to calls by a station that
specified your call sign.
Two methods of replying are available: one is making a reply
call with your own call sign, and other one is making a reply
call with reply voice audio that has been recorded in DV voice
memory.
DD

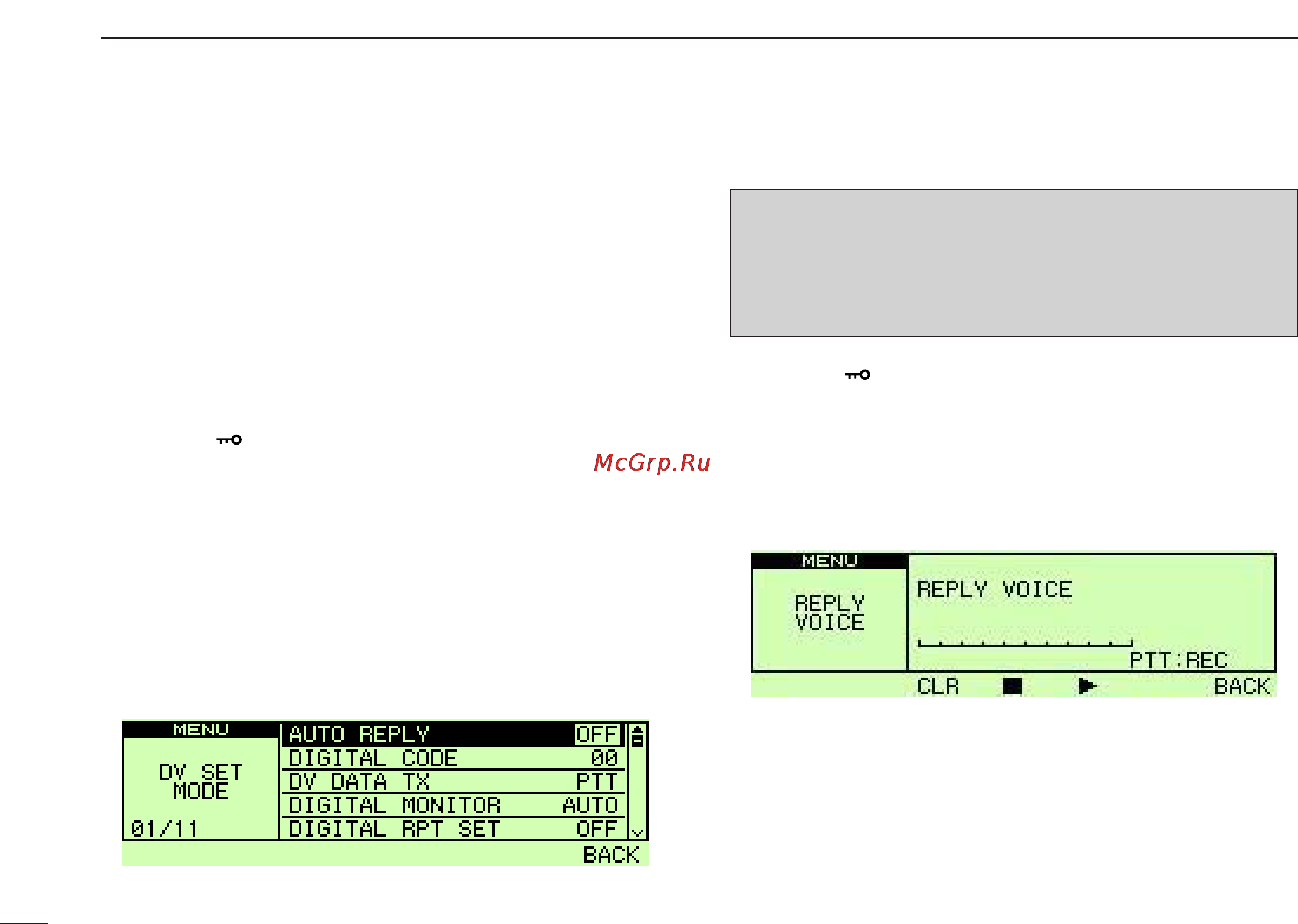

Automatic reply function setting
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s)
to display the
“MENU” screen.
eRotate [DIAL] to select “DV SET MODE,” then push
[MAIN•BAND].
rRotate [DIAL] to select “AUTO REPLY,” then push
[MAIN•BAND].
tRotate [DIAL] to select the desired reply condition.
OFF : Deactivate the automatic reply function.
(default)
ON : Reply to the call with your own call sign.
VOICE : Reply to the call with the recorded voice memory.
yPush [BACK](V/MHz•SCAN) (Right band’s) three times to
return to frequency indication.
DD
Voice memory recording for automatic reply
qPush [F•]to display the function guide.
wPush [MENU](V/MHz•SCAN)
(Right band’s) to display the
“MENU” screen.
eRotate [DIAL] to select “DV VOICE MEMO,” then push
[MAIN•BAND].
rRotate [DIAL] to select “REPLY VOICE,” then push
[MAIN•BAND].
• Bar meter is displayed when the reply voice has already been
recorded.
tWhile pushing and holding [PTT], speak into the micro-
phone.
•Up to 10 seconds of message is recordable.
• The recording stops after 10 second or when [PTT] is released.
yPush [BACK](V/MHz•SCAN) (Right band’s) three times to
exit from DV VOICE MEMO screen.
IMPORTANT!
Set the transceiver for single band operation and/or set mini-
mum [VOL] level for sub band when recording the reply voice.
Otherwise received audio or unwanted noise from sub band
is also recorded into the voice memory.
