89
11
TONE SQUELCH AND POCKET BEEP

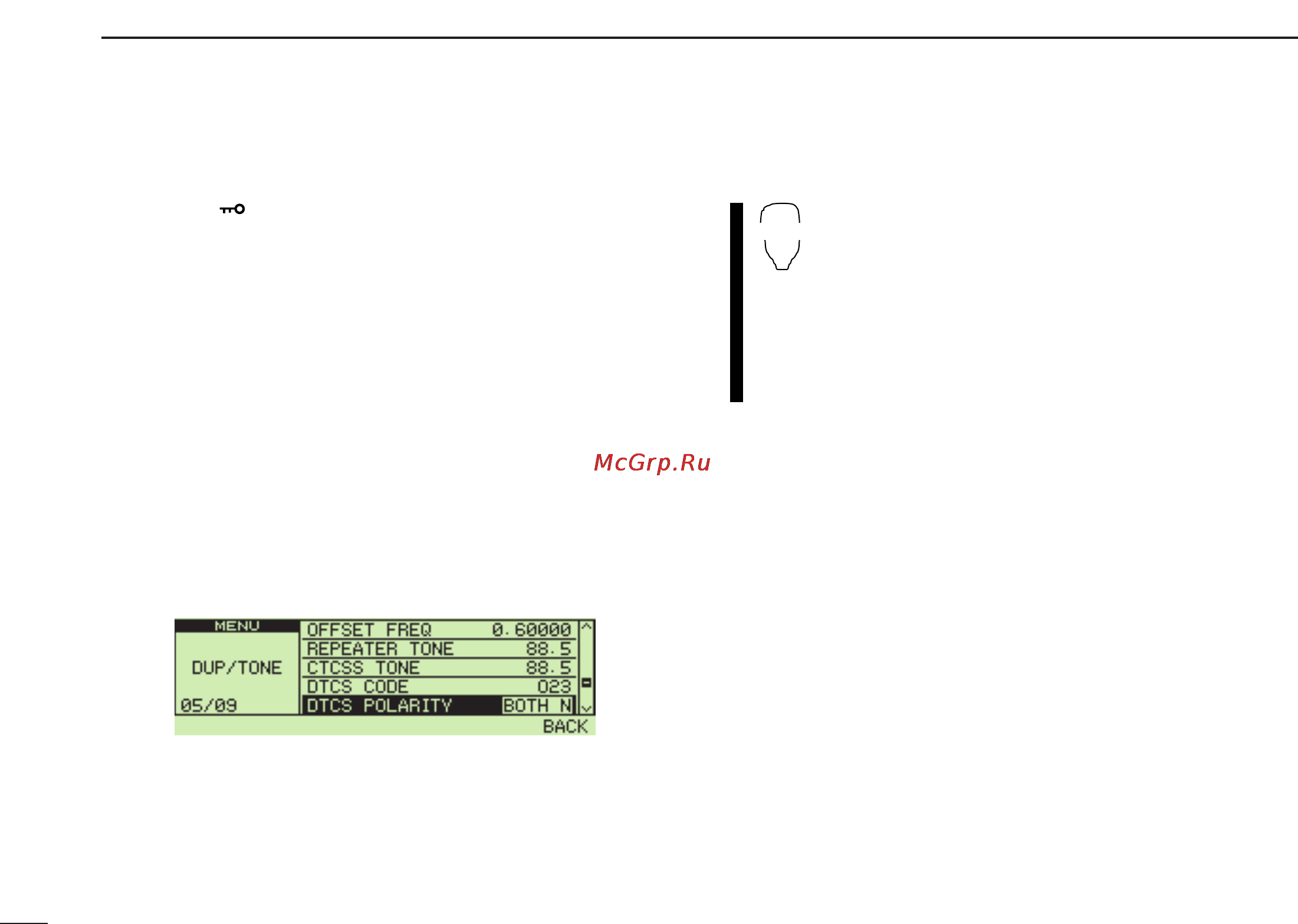

■ DTCS polarity setting
q Push [F•]to display the function guide.
w Push [MENU](V/MHz•SCAN)
(Right band’s) to enter MENU
screen.
e Rotate [DIAL] to select “DUP/TONE…” then push
[MAIN•BAND].
r Rotate [DIAL] to select “DTCS POLARITY” then push
[MAIN•BAND].
t Rotate [DIAL] to select the desired DTCS polarity then
push [MAIN•BAND].
• BOTH N : Normal phase is used for both TX and RX.
(Default)
• TN-RR : Normal phase is used for TX; Reverse phase
for RX.
• TR-RN : Reverse phase is used for TX; Normal phase
for RX.
• BOTH R : Reverse phase is used for both TX and RX.
y Push [BACK](V/MHz•SCAN)
(Right band’s) to exit from
DUP/TONE set mode.
z Push [
SET
B(D-OFF)] to enter set mode.
x Push [Y]/[Z] several times to select
“DUP/TONE…” then push [
SET
B(D-OFF)].
c Push [Y]/[Z] several times to select “DTCS PO-
LARITY” then push [
SET
B(D-OFF)].
v Push [Y]/[Z] to select the desired polarity then
push [
SET
B(D-OFF)].
b Push [
CLR
A(MW)] to exit DUP/TONE set mode.
SET
B
