PANEL DESCRIPTION

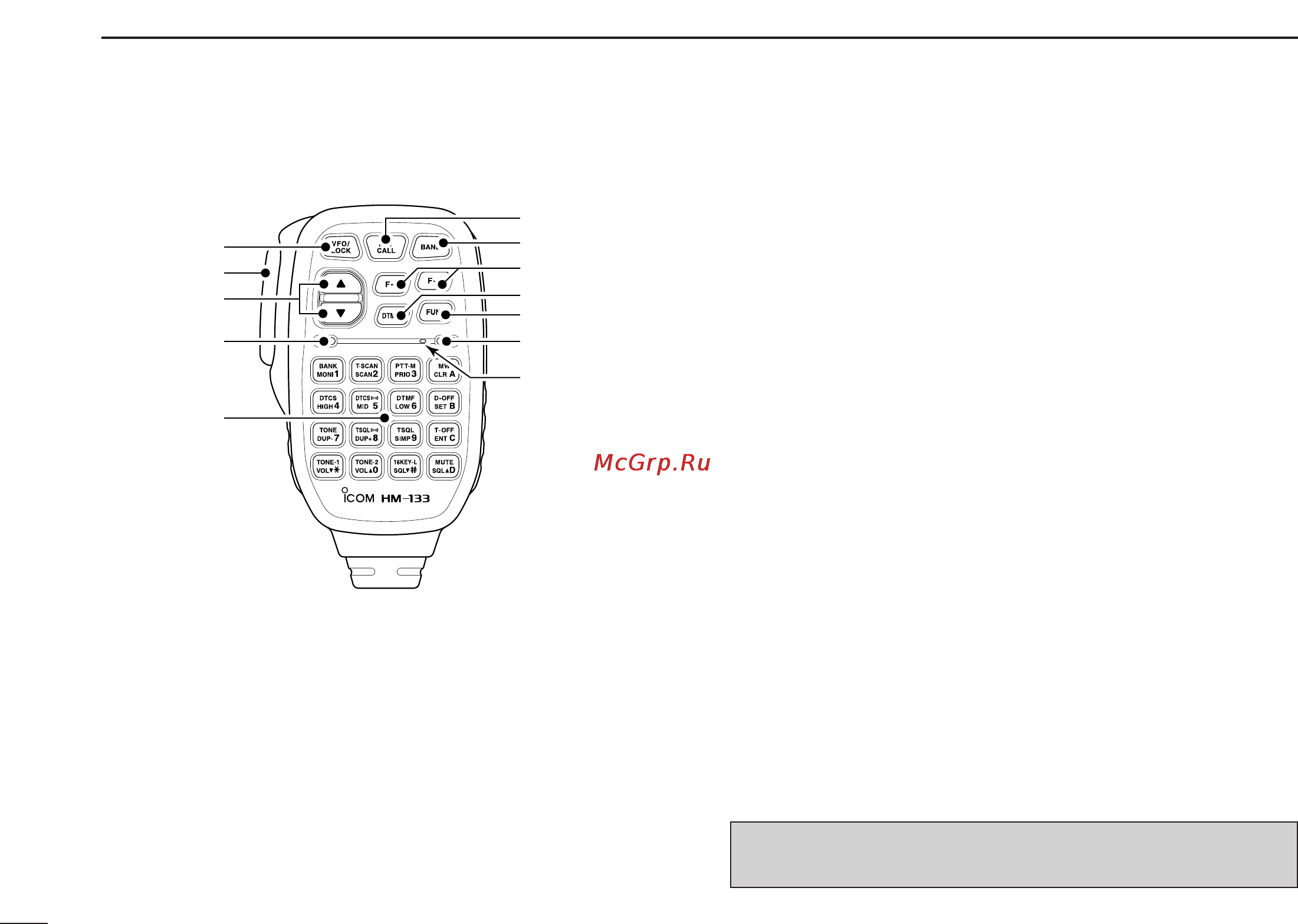

■ Microphone (HM-133*)
qVFO/LOCK KEY [VFO/LOCK]
➥ Push to select VFO mode.
(p. 16)
➥ Push and hold for 1 sec. to turn the lock function ON
and OFF.
(p. 19)
wPTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Switches between transmitting and receiving while the
one-touch PTT function is in use.
(p. 26)
eUP/DOWN KEYS [Y]/[Z]
➥ Push either key to change operating frequency, mem-
ory channel, set mode setting, etc.
(pgs. 17, 61, 98)
➥ Push and hold either key for 1 sec. to start scanning.
(p. 75)
rACTIVITY INDICATOR
➥ Lights red while any key, except [FUNC] and [DTMF-S],
is pushed, or while transmitting.
➥ Lights green while the one-touch PTT function is in use.
tKEYPAD
(pgs. 12, 13)
yFUNCTION INDICATOR
➥ Lights orange while [FUNC] is activated—indicates the
secondary function of keys can be accessed.
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u2nd FUNCTION KEY [FUNC]
iDTMF SELECT KEY [DTMF-S]
(p. 84)
oFUNCTION KEYS [F-1]/[F-2] (p. 115)
Program and recall your desired transceiver configuration.
!0BAND KEY [BAND]
(p. 15)
Push to select main band between left and right bands.
!1MEMORY/CALL KEY [MR/CALL]
➥ Push to select memory mode. (p. 61)
➥ Push and hold for 1 sec. to select call channel. (p. 72)
✔
Important!
All keys on the microphone function for the main band only.
Mic element
q
e
r
t
w
y
u
i
o
!0
!1
*
A different microphone
may be supplied de-
pending on version.
