CALL CHANNEL OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

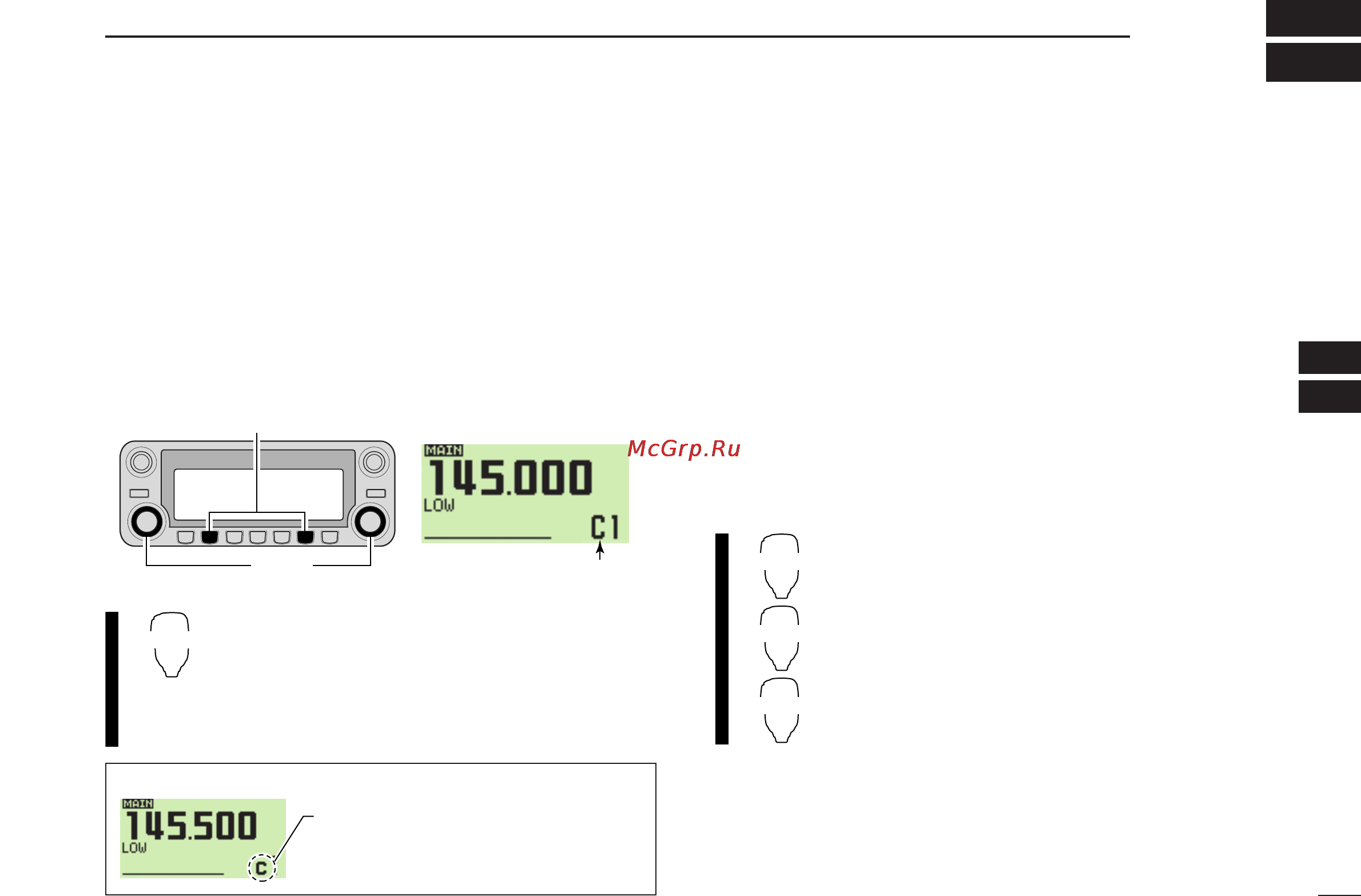

■ Call channel selection
Call channel is a pre-programmed memory channel that can
be accessed by simply pushing call channel button.
➥ Push the desired band’s [M/CALL•MW] several times to
select the call channel mode, then rotate the same band’s
[DIAL] to select the desired call channel.
• “C0” or “C1” appears instead of memory channel number.
• Push the [M/CALL•MW] several times to select memory mode,
or push the same band’s [V/MHz•SCAN] to select VFO mode.
➥ Push and hold [MR/CALL] for 1 sec. to select
the call channel mode then push [Y]/[Z] to
select the desired call channel in the main
band.
• Push [MR/CALL] to select memory mode, or push
[VFO/LOCK] to select VFO mode.
■ Call channel copying
D Call➪VFO/Memory
qPush the desired band’s [M/CALL•MW] several times to
select call channel mode, then rotate the same band’s
[DIAL] to select the desired call channel.
• “C0” or “C1” appears.
wPush the same band’s [M/CALL•MW] for 1 sec., then ro-
tate the [DIAL] to select the memory channel to copy the
contents to.
•“X” indicator and memory channel number blink.
•To copy to the VFO mode, select “VFO” with the [DIAL].
ePush and hold the same band’s [M/CALL•MW] for 1 sec.
to copy the contents.
z Push [MR/CALL] for 1 sec. then push [Y]/[Z]
to select the desired call channel in the main
band.
x Push [FUNC], then [
CLR
A(MW)] for 1 sec. to
copy the contents.
•To copy to the VFO only.
MR/CALL
MW
Y/Z
MR/CALL
“C0” or “C1” appears
[DIAL]
[M/CALL•MW]
✔INFORMATION
When the VFO mode is selected from
the call channel, a small “c” appears
instead of memory channel number.
