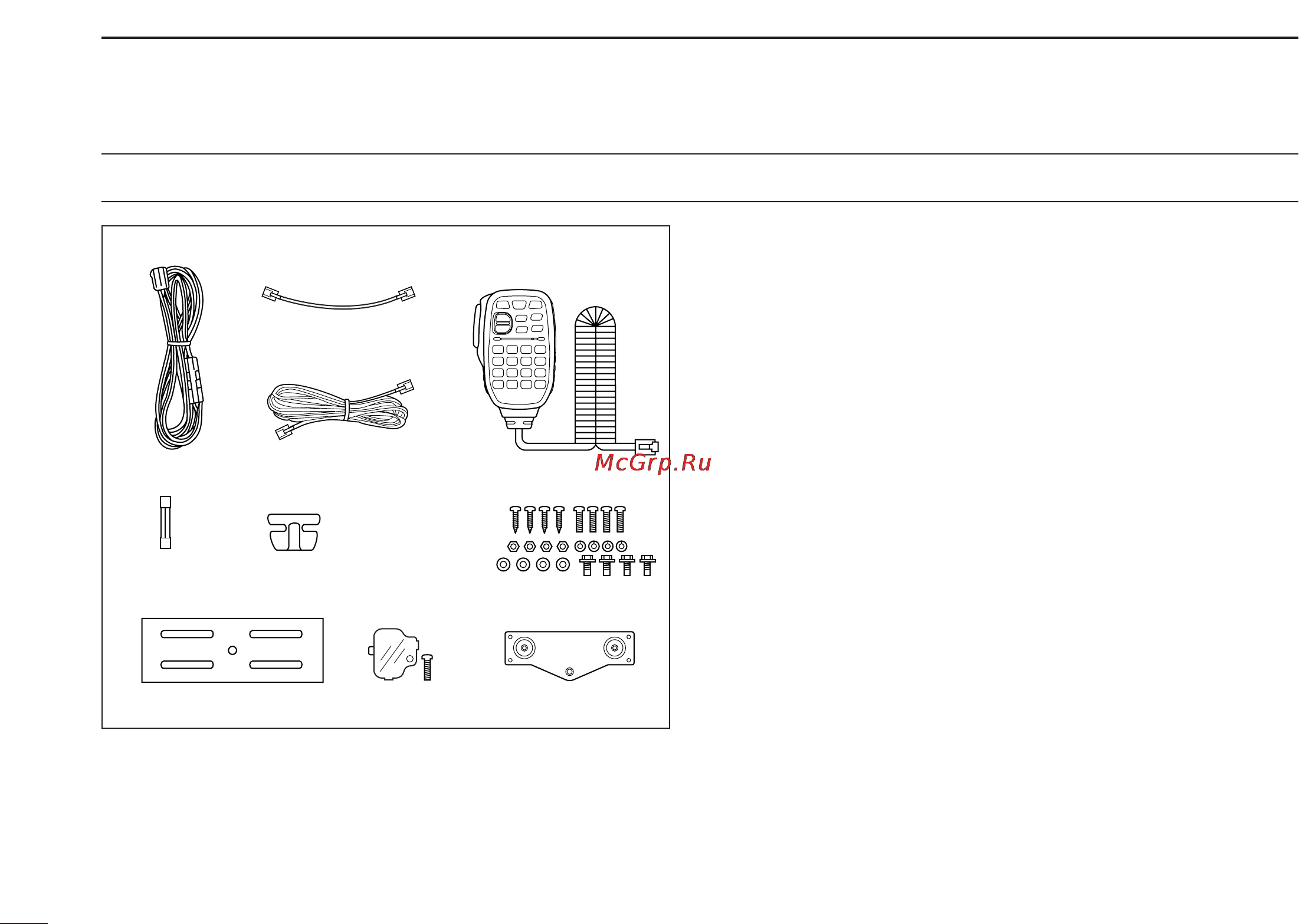

iii
qDC power cable (3 m) ………………………………………1
wController cable (10 cm
†
; 3.9 in
†
) …………………………1
eSeparation cable (3.4 m
†
; 11.2 ft
†
) …………………………1
rMicrophone (HM-133)* ……………………………………1
tFuse (20 A) …………………………………………………1
yMicrophone hanger …………………………………………1
uMounting screws, nuts and washers …………………1 set
iMobile mounting bracket …………………………………1
oMicrophone connector plate with screw ……………1 set
!0Remote controller bracket …………………………………1
*HM-154
HAND MICROPHONE
may be supplied with some versions.
†
Approx.
qw
e
t
r
i
u
!0o
y
SUPPLIED ACCESSORIES
