Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
202

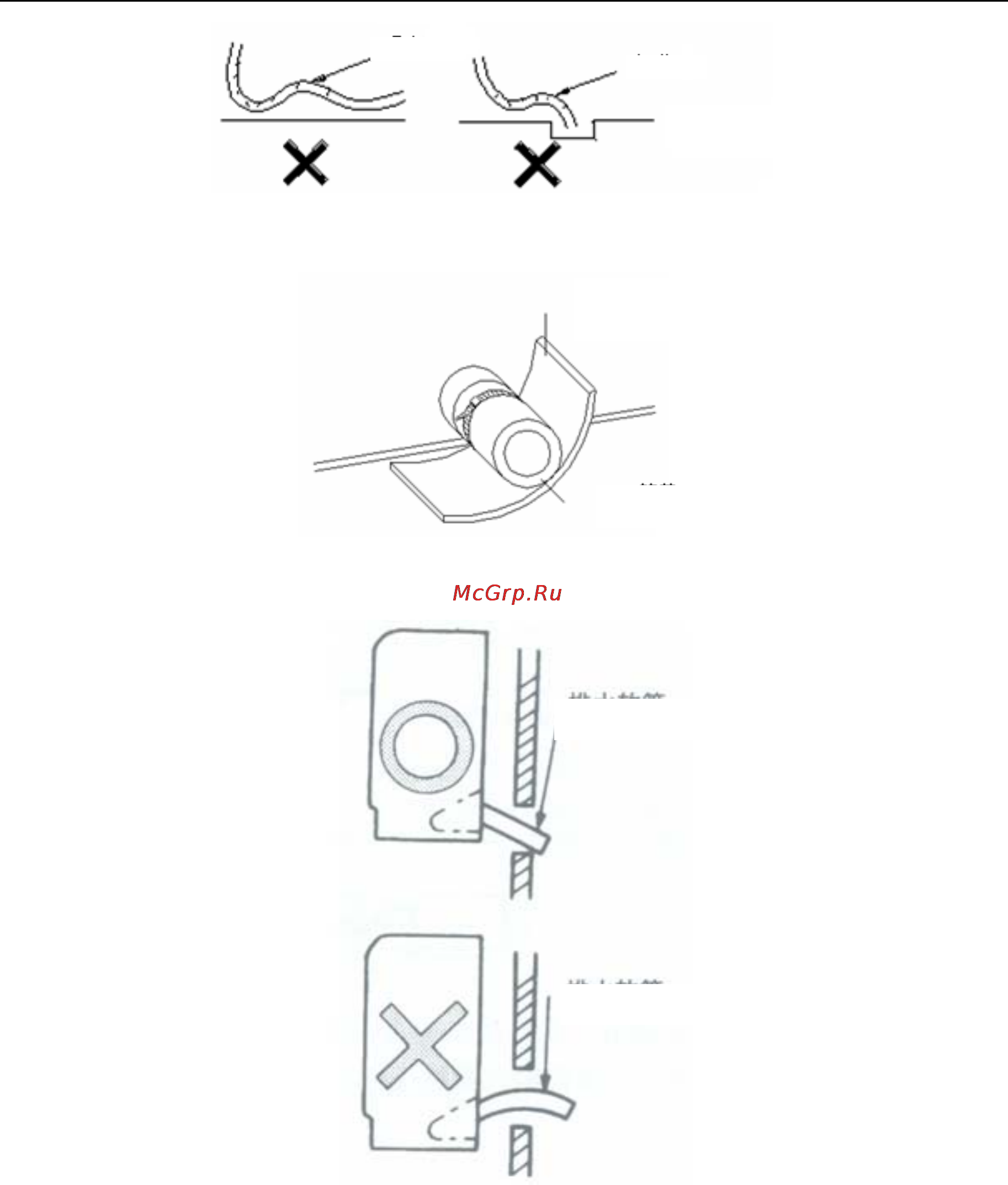

¾ The extended section of drainage hose shall be wrapped with thermal insulation sheath when
passing the room.
Fig.3.41
¾ After installation of the drainage pipe, be sure to make water test and check if the water can
be drained smoothly.
b. After piping work, check if the draining flow is smooth.
12.3 Test for Condensate Pipe
The water test for condensate pipe includes closed water test and drainage test. The closed
water test is focused on checking if the drainage pipe system is well sealed and if there is any
leakage. The drainage test is focused on checking if the drainage pipe system can drain water
smoothly and thoroughly and ensuring that there is no water deposit (except the specially
designed water trap).
After connection of the drainage pipe is completed, firstly carry out closed water test. Seal the
outlet of drainage pipe with adhesive tape or plug. Then, fill water into the drainage pipe system
form indoor unit side. Stop filling after ensuring that all the drainage pipes are filled with water.
After 24 hours, check all the joints of water pipe for any leakage. If any, repair and reinstall. If no
leakage, proceed to drainage test.
Remove the adhesive tape or plug from the drainage pipe. Check the water tray and drainage pipe
of indoor unit if the drainage is thorough and if there is any water deposit. If any, readjust it. If not,
complete the water test and proceed to the thermal insulation on all pipe joints.
Protrusion
Twisting
Do not immerse in water.
Pipe cove
r
Thermal insulation of
condensate pipe
Drainage hose
Drainage hose
