Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
201

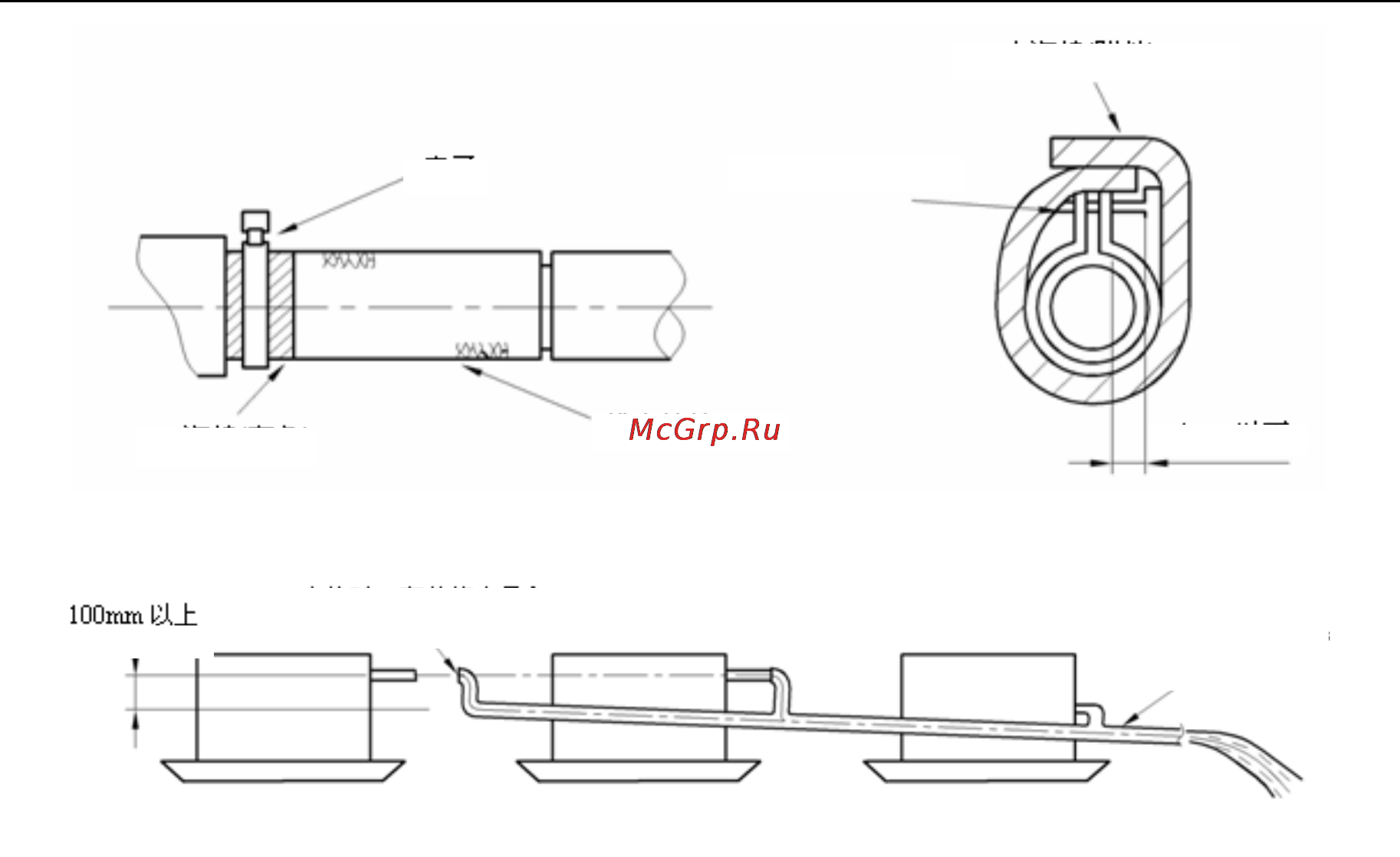

¾ To connect the drainage pipes for multiple machines, please use the method of multi-pipe
collection, as shown below.
Fig. The specification of collecting drainage pipe shall be suitable to the working capacity of the
unit
We may collect the drainage pipes of all the indoor units in one system (An outdoor unit and all
the indoor units connected to this outdoor unit are called one system), or collect the drainage pipes
of all the indoor units in several systems.
The ceiling height must be considered, and a specific gradient shall be ensured along the
water flow direction. The cassette-type indoor unit is provided with water pump, and the maximum
lift of its drainage pipe is 280mm.
¾ During installation, please take care that:
The diameter of drainage pipe connected to the indoor unit must meet the specifications. The pipe
diameter shall not be too small; otherwise the water may overflow.
The main drainage pipe depends on the number of indoor units. Generally, it is required to be
equal to or higher than ф35mm.
The drainage pipe shall be thermally insulated. The thickness of thermal insulation pipe must meet
the requirements. The clearance between thermal insulation pipes shall be sealed with adhesive
sticker.
Please discharge the water to the ground drain, water closet or any other place easy to drain the
water out.
b) After installation, check if the drainage is smooth.
3) Wall-mounted Type
Assemble the drainage pipe as shown below and take measures to prevent condensing.
Improper assembly of the drainage pipe may cause leakage, or even expose the furniture to
moisture.
a) Assembly of drainage pipe
¾ To avoid air in water elbow, the drainage hose shall be kept as short as possible and inclined
downward, as shown below.
¾ During connection, please use PVC pipe of equal size higher than this size (Nominal Dia,:
20mm; Outer Dia.: 26mm)
¾ The drainage pipe must be arranged in down inclination along water flow direction, thus to
avoid air bubble blocking. Take care not to arrange the pipe in twisting, protrusion or
waveform. Do not put the outlet of drainage pipe into water.
Clamp
Clamp (accessory)
Big sponge (accessory)
Drainage hose
Sponge (grey)
Below 4mm
T-joint collecting
drainage pipe
Introduce water here
for water test
Over 100mm
