Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
262
Disassembly and Assembly of Liquid Accumulator
Remarks：Make sure that there isn’t any refrigerant in pipe system and the power supply is cut off before
removal of the liquid accumulator

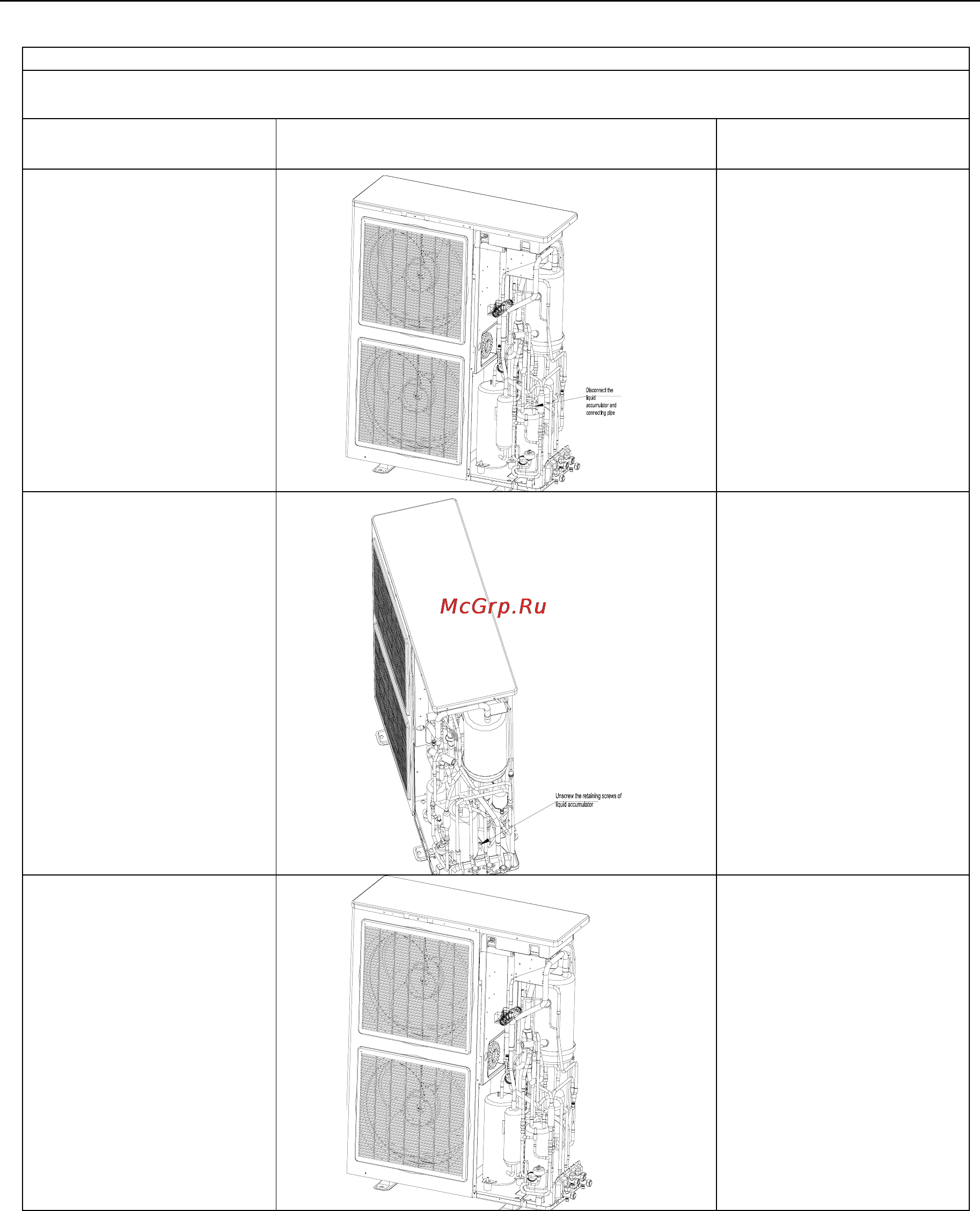

Step Illustration Handling Instruction
1. Disconnect the liquid
accumulator with
connecting pipe
● Unsolder the 3
connection spots on liquid
accumulator and unplug
the connecting pipe
Note: keep the fire away
from other components
2． Unscrew the retainin
screws of liquid
accumulator
● Unscrew the retainin
screws of liquid
accumulator
3 ． Replace liquid
accumulator
● Replace liquid
accumulator
